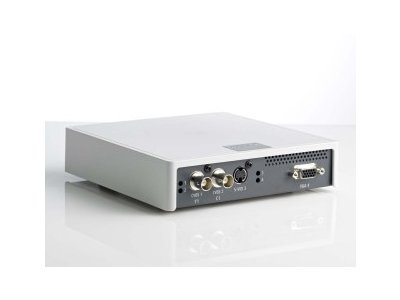

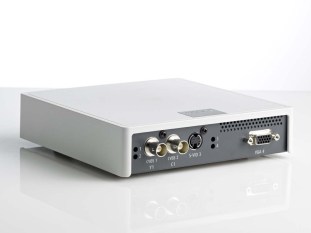

MNA-120 ENC ANA AV-to-IP encoder for the digital operating room with VGA & CVBS or VGA & S-Video
Barco's MNA series comprises adapters to encode and decode video, data and other information (e.g. control signals) to and from IP streams. These medically certified adapters ensure overall connectivity and support for current and legacy video sources. Automated device detection eliminates the need for user interventions when setting up the operating room.
Conversion to IP
The MNA encoders take in baseband video and non-video data and convert these to IP streams for transportation over a standard high-bandwidth IP network. The MNA decoders reconvert these raw IP packets to DVI video signals and other signals such as USB. End-to-end latency is amazingly short and is guaranteed not to exceed a single frame (< 15 ms).
The medical-grade MNA adapters offer:
- AV-to-IP conversion at the imaging source
- Complete connectivity for current and legacy video sources in the operating room, cath lab or interventional suite
- Support for non-video traffic (e.g. keyboard, mouse and audio)
- Easy integration via central API provided by Barco's NMS 1.0 software
- Smooth setup and ease of use
Features
- Full auto-detection of all devices, no end-user intervention required for setup and use
- Full API to control all functionalities and solve network and configuration complexities – Barco Nexxis NMS 1.0
- Provides advanced image processing capabilities such as de-interlacing, scaling, overlaying, color conversion
- Secure decryption and encryption of all data
- Status LEDs for simple identification of key parameters
This product is a component of the following products
IP imaging and audio management platformNexxis for OR
| Conversion | Analog baseband video signals to uncompressed IP video streams |
|---|---|
| Security | AES 128 encrypted transmission of all video, data & control signals |
| Encoder system | VGA & CVBS or VGA & S-Video |
| IP connectivity | 10GE Fiber Optic Interface with SFP+ connector module |
| IP standards | AVB, IP, IGMP, IGMP snooping, PIM, RTP, RTCP, 802.1q, AES 128b, HTTP(s) |
| USB | USB OTG type A/B USB Type A |
| Audio | Line-in, line-out and mic-in connector |
| Compliance | Supporting HIPAA compliance External 12V Medical Approved PSU |
| Power consumption | < 30W |
| Size | 152x152x37 mm |
| Certifications | UL 60601-1; CE EN60601-1 ed 3; c-UL CSA C22.2 No601.1 FCC-B; EN 60601-1-2 ed 3, IEC 60601-1 ed 3 CE (MDD) ICES-003 |
