MR-100-E mission recorder

Cena na telefon
Produkt niedostępny

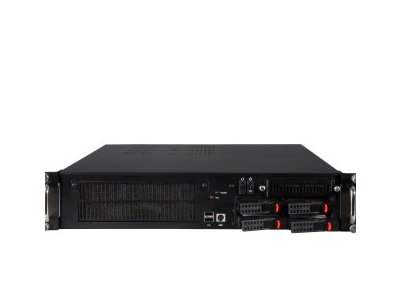

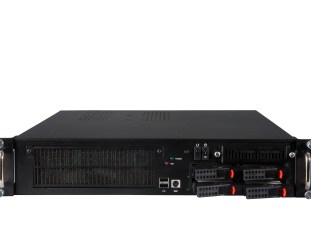

Barco's MR-100-E mission recorder is a standalone rugged recorder for naval applications. The MR-100-E captures, archives and manages mission-critical audio and video data. It provides a unified web service interface for an easy integration with the system application software. The MR-100-E is dedicated to systems demanding high-recording performance.

Barco's MR-100-E mission recorder helps to safeguard mission survivability thanks to a unique safe passthrough capability. This guarantees the availability of video and audio paths in case of critical failures (even in case of power loss). The mission recorder uses MPEG-4 compression technology, which is now widely used in modern computing platforms and offers the great advantage of providing high video quality while limiting the total amount of data.

Features

The MR-100-E mission recorder features:

-recording of high resolutions (WUXGA) analog and digital video feeds, stereo audio input and metadata
-MPEG-4 compression technology
-replay while recording functionality
-safe pass-through
-local or remote recording
-optional multi-recorder synchronization
-MIL-qualified standards

Storage capacity 4x500 GB removable HDD max
Video Input Dual Analog & Digital Video Input • 800x600 to 1920x1200 • MPEG-4 encoding
Video Output Safe pass-through • Dual Analog & Digital Video output • 800x600 to 1920x1200
Audio Input Analog Stereo Audio Input, 600 Ω Sampling 16-bits 44.1 KHz
Audio output Analog Stereo Audio Output (2W/ 8 O)
Interfaces USB 2.0, Gb Ethernet
Operating system Windows XP/XPe/7, Linux
Power Supply 115/230 VAC auto-range
Dimensions 483 x 89 x 482mm (with front handles)
Weight < 14 kg
Vibration MIL-STD-167 and MIL-STD 810F
Humidity MIL-STD-167 and MIL-STD 810F
Operating temperature 0°C, +50°C according to MIL-STD 810F
EMI / EMC EMI/EMC CE/FCC class A
