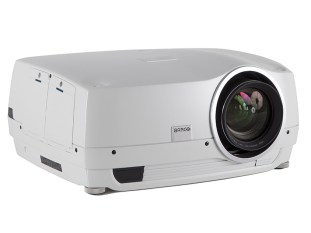

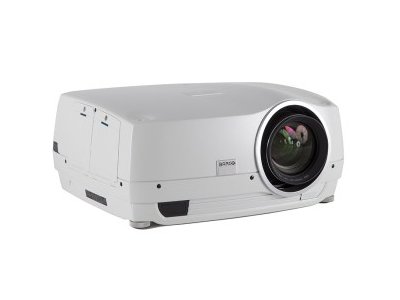

Projektor Barco CRPN-62B
The CRPN-62B is the perfect solution for wide-screen projection in high-end meeting rooms, boardrooms and collaboration rooms that require multi-windowing features.
Better collaboration
Having an efficient and detailed view of complex data sets is paramount in order to make the right decisions. Thanks to the CRPN-62B’s unique Panorama (2,560 x 1,080) resolution and 21:9 aspect ratio, you can easily share highly detailed information in a side-by-side manner. Did you know that showing more data on screen simultaneously has a documented effect on work efficiency?* Allowing multiple participants to be on-screen simultaneously and share various types of content, the CRPN-62B enables better collaboration.
High-quality images
With its 5,500 lumens brightness level, the CRPN-62B provides stable, uniform and high-contrast images, that enable you to concentrate better and focus on what matters most in meetings: the agenda. And thanks to its low noise level, working in an environment with front projection has never been less distracting.
Built to last
The CRPN-62B features a filter-free design and reliable DLP® technology for unmatched picture accuracy and low total cost of ownership. Designed for unlimited use, it also comes with a three-year warranty, for true peace of mind.
| Projector type | Single-chip DLP projector |
|---|---|
| Technology | LVDC DMD™ with DarkChip3™ |
| Resolution | 2,560 x 1,080 (Panorama) |
| Brightness | 5,500 ANSI lumens |
| Contrast ratio | 6,500:1 |
| Brightness uniformity | >90% |
| Aspect Ratio | 21:9 |
| Lens type | All pure glass lenses |
| Lenses | wide angle lens EN42 (0.8:1), ultra wide zoom lens EN46 (0.8-1.21:1), wide angle lens EN43 (1.2-1.7:1), standard zoom EN41 (1.7-2.5:1), long throw zoom EN44 (2.50-4.60 :1), ultra wide fixed EN47 (0.65 : 1) |
| Optical lens shift | Vertical: -222% to +222%; horizontal: -78% to +78% (on zoom lenses) |
| Color correction | RealColor™ |
| Lamps | 2 x 300W UHP Vidi |
| Lamp lifetime | Up to 2,000 hours (full power) / Up to 2,500 hours (eco mode) |
| Lamp house, quick replace | yes |
| Lamp warranty | 500 hours or 90 days |
| Sealed DLP™ core | Yes |
| Orientation | table - ceiling |
| Inputs | 2 x DVI-I; 2 x HDMI 1.3a; 2 x VGA; Video inputs; 1 x component; 1 x S-video |
| Input Resolutions | Up to 2,560 x 1,600 pixels input on all models. Output resolution depends on native resolution; HDTV (1080p, 1080i, 720p); EDTV (576p, 480p); SDTV (576i, 480i); NTSC, PAL, SECAM; progressive scan |
| Software tools | Projector Toolset, ProNet |
| Control | 1 x RJ-45 TCP/IP; 1 x 9-pin D-SUB RS232; 2 x 12V programmable trigger (3.5mm mini jack); 1 x Wired Remote 3.5mm mini jack; 2 x USB |
| Network connection | 10/100 base-T, RJ-45 connection |
| Power requirements | 100-240V / 50-60Hz |
| Power consumption | 912W |
| Noise Level | 34 dB |
| Operational ambient temperature | 10-40°C / 50°-104°F |
| Operational humidity | 20-80% RH |
| Dissipation BTU | max 3,109 BTU/h |
| Dimensions (WxLxH) | 510 x 376 x 233 mm / 20.08 x 14.80 x 9.17 inches |
| Weight | 12.7 kg (28.0 lbs) |
| Standard accessories | Power cord, wireless remote control |
| Certifications | Compliant with FCC, part 15 Class A and CCC, cCSAus, cUL, UL and CE |
| Warranty | Limited 3 years parts and labor. Extendable up to 5. |
