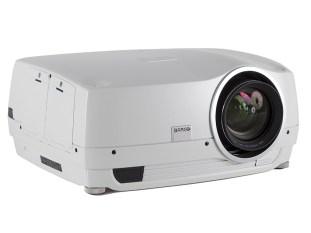

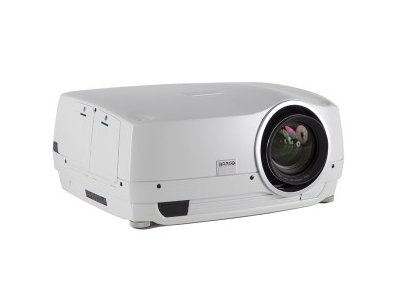

Projektor Barco CRWQ-72B
What’s more, the CRWQ-72B replaces complex setups with multiple displays to get a high-resolution display in your meeting room, collaboration room or visualization room.
High-contrast images
The CRWQ-72B projector combines a unique WQXGA (2,560 x 1,600) resolution - much higher than any other single-chip DLP projector - with a light output of 7,000 lumens. The projector enables showing more data on screen simultaneously which has a documented effect on work efficiency, because more pixels equal more information that can be shown.* As it provides stable and high-contrast images that allow you to concentrate better and offers a low noise level, you can turn your meeting room into an efficient collaboration room.
Flexible installation
Next to having the smallest installation footprint, the CRWQ-72B is also the lightest projector in the 6,500 to 10,000 lumens segment. Thanks to its range of all-glass and high-quality lenses with wide lens shift, it offers ultimate installation flexibility.
Built to last
The CRWQ-72B features a filter-free design and reliable DLP® technology for unmatched picture accuracy and low total cost of ownership. Designed for unlimited use, it also comes with a three-year warranty, for true peace of mind.
| Projector type | single-chip DLP projector |
|---|---|
| Technology | LVDC DMD™ with DarkChip3™ |
| Resolution | 2,560 x 1,600 (WQXGA) |
| Brightness | 7,000 ANSI lumens |
| Contrast ratio | 6,500:1 |
| Brightness uniformity | >90% |
| Aspect Ratio | 16:10 |
| Lens type | All glass lenses |
| Lenses | wide angle lens EN42 (0.8:1), ultra wide zoom lens EN46 (0.8-1.21:1), wide angle lens EN43 (1.2-1.7:1), standard zoom EN41 (1.7-2.5:1), long throw zoom EN44 (2.50-4.60 :1), ultra wide fixed EN47 (0.65 : 1) |
| Optical lens shift | Vertical: -144% to +144%; Horizontal: -70% to +70% (on zoom lenses) |
| Color correction | RealColor™ |
| Lamps | 2 x 300W UHP Vidi |
| Lamp lifetime | Up to 2,000 hours (full power) / Up to 2,500 hours (eco mode) |
| Lamp house, quick replace | yes |
| Lamp warranty | 500 hours or 90 days |
| Sealed DLP™ core | Yes |
| Orientation | table - ceiling |
| Inputs | 2 x DVI-I; 2 x HDMI 1.3a; 2 x VGA; Video inputs; 1 x component; 1 x S-video |
| Input Resolutions | Up to 2,560 x 1,600 pixels input on all models. Output resolution depends on native resolution; HDTV (1080p, 1080i, 720p); EDTV (576p, 480p); SDTV (576i, 480i); NTSC, PAL, SECAM; progressive scan |
| Software tools | Projector Toolset, ProNet |
| Control | 1 x RJ-45 TCP/IP; 1 x 9-pin D-SUB RS232; 2 x 12V programmable trigger (3.5mm mini jack); 1 x Wired Remote 3.5mm mini jack; 2 x USB |
| Network connection | 10/100 base-T, RJ-45 connection |
| Power requirements | 100-240V / 50-60Hz |
| Power consumption | 912W |
| Noise Level | 34 dB |
| Operational ambient temperature | 10-40°C / 50°-104°F |
| Operational humidity | 20-80% RH |
| Dissipation BTU | max 3,109 BTU/h |
| Dimensions (WxLxH) | 510 x 376 x 233 mm / 20.08 x 14.80 x 9.17 inches |
| Weight | 12.7 kg (28.0 lbs) |
| Standard accessories | Power cord, wireless remote control |
| Certifications | Compliant with FCC, part 15 Class A and CCC, cCSAus, cUL, UL and CE |
| Warranty | Limited 3 years parts and labor. Extendable up to 5. |
