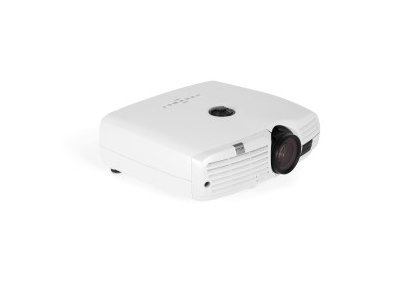

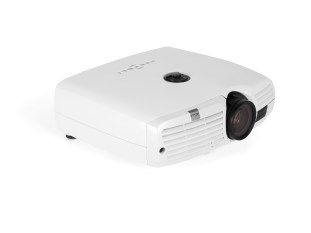

Projektor Barco CVHD-31B
The CVHD-31B will perfectly complement your meeting room, conference room or boardroom.
A compact projector
Combining a brightness level of 3,000 lumens with Full HD resolution, the CVHD-31B is a compact projector. Weighing only 2.9 kg, it is lighter than comparable projectors and in size it’s more than 25% smaller!
Crisp and vivid images
The CVHD-31B provides razor-sharp, stable and high-contrast images that allows meeting participants to concentrate better and focus longer. It always shows vivid colors, in excellent quality.
Small footprint, ultimate performance
The CVHD-31B features a filter-free design and reliable DLP technology for unmatched picture accuracy and low total cost ownership. Designed for unlimited use, it also comes with a three-year warranty, for true peace of mind.
| Projector type | Single-chip DLP projector |
|---|---|
| Technology | optical lens shift design |
| Resolution | 1,920 x 1,080 (Full HD) |
| Brightness | 3,000 ANSI lumens |
| Contrast ratio | 2,500 : 1 |
| Brightness uniformity | >80% |
| Aspect Ratio | 16:9 |
| Lens type | All glass lenses |
| Lenses | Standard Zoom lens (1.64-2.06:1) |
| Optical lens shift | Vertical |
| Color correction | RealColor™ |
| Lamps | 220W UHP lamp |
| Lamp lifetime | Up to 2,250 hours (full power) / 3,000 hours (eco mode) |
| Lamp house, quick replace | Yes |
| Lamp warranty | 500 hours or 90 days |
| Sealed DLP™ core | Yes |
| Orientation | Table – ceiling (360 degrees through portrait mode) |
| 3D | No |
| Inputs | 1 x HDMI (1.3), 1 x DVI-D, 1 x VGA, 1x RCA composite video, 1 x 4-pin mini DIN Y/C, 1 x RCS x3 YUV |
| Input Resolutions | 1,920 x 1,200 - 640 x 480 pixel resolution (model dependent) / RGBHV, RGBS, RGsB |
| Software tools | Projector Toolset |
| Control | IR, RS232, Ethernet |
| Network connection | 1 x RJ-45 TCP/IP, 1 x 9-pin D-SUB RS232, 1 x USB |
| Power requirements | 3.0-1.3A, ~100-240V, 50-60Hz |
| Power consumption | Max 290W |
| Noise Level | 30 dB |
| Operational ambient temperature | 10 - 40 °C (storage temperature: -20 - 60 °C) |
| Operating humidity | 20 - 80% RH |
| Dissipation BTU | Less than 1,061/hour |
| Dimensions (WxLxH) | 278 x 234 x 94 mm / 10.94 x 9.21 x 3.70 inches |
| Weight | 2.9 kg (6.39 lbs) |
| Standard accessories | Power cord, wireless remote control |
| Certifications | CE, FCC Class A and cCSAus |
| Warranty | Limited 3 years parts and labor. Extendable up to 5. |
