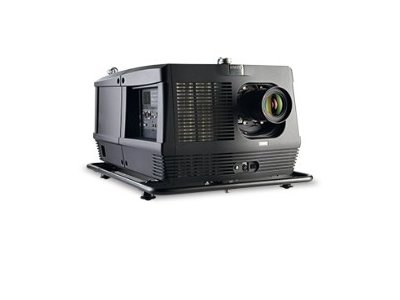

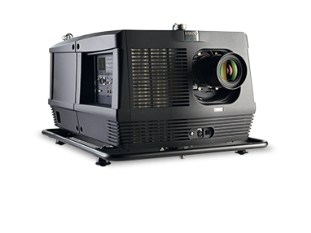

Projektor Barco HDF-W30 FLEX
Thanks to its high light output, the HDF-W30 FLEX offers impressive performance for large venues - even when there's lots of ambient light. Designed for life on the road, the rugged and modular projector is easy to install and service. And when equipped with a rental frame, it can easily be stacked or rigged. Just like the RLM, HDX, HDF and FLM projector families, the HDF-W30 FLEX uses the TLD lens suite.
Stunning images for large screens
Geared with 3-chip DLP technology, single Xenon lamp illumination, and a high-contrast optical engine, the HDF-W30 FLEX makes no compromises on brightness, color accuracy, and stability. Its Xenon lamp color accuracy delivers the best performance required for premium large-screen projection. Plus, the projector's also equipped with Barco’s cutting-edge ImagePRO technology for remarkable scaling power.
Choose your brightness
The HDF-W30 FLEX's most remarkable benefit is that it offers FLEX brightness as standard. In this way rental companies have the flexibility to tune the projector's brightness to a specific show - from 18,000 to 30,000 lumens in incremental steps of 2,000 lumens.
Low total cost of ownership
This projector produces its 30,000 lumens brightness with a single Xenon lamp. Compared to projectors with multiple lamps, managing the HDF-W30 FLEX is a breeze. Moreover, this not only makes it easier to align images during setup but servicing the projector and replacing the lamp also take less time – thus reducing total cost of ownership.
Features
Ultra-bright, stunning images
- High-contrast 3-chip DLP™ engine
- WUXGA resolution (1,920 x 1,200)
- 30,000 center lumens
- Contrast ratio of 1,900:1
- Xenon illumination
- Standard FLEX brightness
- ImagePRO technology inside (Athena scaler)
- Dual-core warp engine
Built for the rental & staging industry
- Fully sealed optics
- Extended wireless control options
- 3D ready
- Preview mode on LCD display
- Removable lamp house, power supply & electronics
- Extended warping and blending
- DMX-512 control
- Native 3G HDSDI/SDI input
- BarcoLink for progressive WUXGA 50/59.94/60 Hz signal distribution over a single BNC coax cable
- Low video delay (broadcast live events)
- Universal lamp house for all HDF projectors
- Easy to set up, install, service and transport thanks to modular design
Low total cost of ownership
- Geared with a single Xenon lamp for easy projector management, setup and servicing
- Sealed engine with constant image quality over time
- Customer can replace bulb
- Power-saving mode
- TLD lens suite that is fully compatible with the Barco RLM, HDX, HDF and FLM projector series
Projector type | WUXGA 3-chip DLP digital projector |
---|---|
Technology | 0.96" DMD™ x3 sealed DLP core |
Resolution | 1,920 x 1,200 - 16:10 aspect ratio |
Brightness | 30,000 center lumens / 28,000 ANSI lumens |
Contrast ratio | 1,900:1 (standard) / 2,200:1 (high contrast mode) |
Brightness uniformity | 90% |
ScenergiX | Horizontal and vertical edge blending |
Lenses | TLD+ 0.67:1,1.14:1,1.16-1.49:1,1.39-1.87:1,1.87-2.56:1,2.56-4.17:1,4.17-6.95:1, 6.93-10.3:1 |
Optical lens shift | V: -30% to +120% / H: -40% to +40% on zoom lenses (memorized) |
Color correction | P7 |
Lamps | 4.0 kW xenon |
Lamp lifetime | 600 Hrs |
Transport with lamp | Yes |
Lamp house, quick replace | Yes |
Customer bulb replace | Yes |
Lamp warranty (field replace/ factory replace) | 90 days, 500 hours / pro rata 500 hours |
Optical dowser | Standard |
Picture-in-picture | Two sources simultaneously |
Orientation | table - ceiling - side (portrait)* - vertical / * lamp door down/bottom |
DMX 512 | standard |
WARP | Direct adjust OSD + toolset |
Integrated web server | Yes |
CLO (constant light output) | Standard |
3D | Triple flash up to 200Hz/Optional: active eyewear, passive Infitec, passive circular |
Inputs | DVI-I (HDCP including analog RGB YUV), SDI/HDSDI/Dual HDSDI/3G/BarcoLink |
Optional Inputs | 5-BNC RGBHV (RGBS/RGsB, YUV CS/SOY, Composite video, S-Video); DVI-I (HDCP including analog RGB YUV) + BarcoLink/SDI/HDSDI/Dual HDSDI/3G; 3D active input (HDMI/DisplayPort) feat. SENSIO 3D |
Input Resolutions | From NTSC up to QXGA (2,048 x 1,536) |
Max. pixel clock | 200 MHz |
Software tools | Projector Toolset + Android app + iOS app |
Control | XLR wired + IR, RS232, Wifi, GSM (opt) |
Network connection | 10/100 base-T, RJ-45 connection, Wifi (optional) |
Power requirements | 200-240V / 50-60Hz |
Max. power consumption | 4,550W / STBY < 10W |
Noise level (typical at 25°C/77°F) | 60dB(A) |
Operational ambient temperature | 0-40°C / 32°-104°F |
Operational humidity | 0-80% (non condens) |
Dissipation BTU | Max. 15,593 BTU/h |
Dimensions (WxLxH) | 707 x 1,025 x 548mm / 27.83 x 40.35 x 21.57 inches |
Shipping Dimensions | (LxWxH)1,200 x 980 x 760 mm / 47.24 x 38.58 x 29.92 inches |
Weight | 99kg (218.25lbs)/shipping weight from factory: 151kg (333lbs) |
Standard accessories | Power cord,wireless/XLR wired rugged remote control,bottom rigging kit/clamps |
Certifications | UL60950-1 and EN60950-1,FCC rules & regulations,part 15 Class A and CE EN55022 Class A,RoHS |
Warranty | 2 years standard, extendable up to 5 years |
