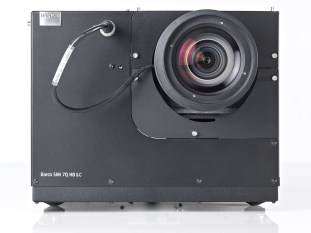

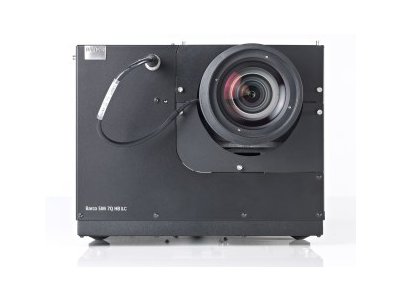

Projektor Barco SIM 7Q HB&C
Powered by the latest generation of high contrast LCoS technology, Barco’s SIM 7Q HB&C series was specifically designed for commercial flight, fast-jet and rotary-wing training systems. With a contrast ratio of up to 35,000:1, and brightness level of 2,800 lumens, this projector perfectly combines high brightness with deep contrast.
Eye-limiting resolution without speed limits
With its QXGA (2048x1536) resolution, the SIM 7Q HB&C delivers razor-sharp images for the ultimate fidelity in simulation training. LCoS technology has the highest pixel-fill factor of all the current display technologies, and produces a smooth-as-silk picture with an extremely small pixel density. Barco’s unique smear reduction technology ensures that speed will not affect the SIM 7Q HB&C’s superior image quality, or result in flicker or breakup. Furthermore, the total dynamic range of 20,000,000:1 ensures the deepest black levels.
Ready for multi-channel action
The SIM 7Q HB&C series comes equipped with Barco-engineered technologies that make it ready for multi-projector set-ups:
• Edge blending technology creates one continuous image without blurry overlap zones where projections converge.
• DynaColor and linked constant light output (CLO) ensure the same light and color levels across the entire screen.
• Warping (geometry correction) enables accurate projection from different angles and across spherical or curved surfaces.
| Contrast ratio | Dynamic contrast ratio up to 6,000,000:1 |
|---|---|
| Resolution | QXGA (2048x1536) |
| Brightness uniformity |
>75% |
| Brightness | Typical 2,000 lumens |
| Display | 0.82” QXGA LCoS, 4:3 aspect ratio |
| Inputs | • RGBHV • 2 x dual-link DVI inputs for up to 8bit image formats |
| Compatibility | • All current simulator formats up to QXGA |
| Input Frequencies | • Up to 330 MHz on dual-link DVI • Up to 275 MHz on RGBHV |
| Lamp | 300 Watt UHP lamp, in lamp housing, pre-aligned for max. light output. Typical lifetime: 1,500 h/lamp Lamp warranty 750 hrs or 90 days, whichever comes first. |
| Optics |
Two-story optical engine for outstanding color uniformity |
| Lens Shift | Vertical shift: -100% to +100% Horizontal shift: -50% to +50% (no shift on QSD 0.80:1 lens) |
| Power consumption | Normal operation: Max. 600W |
| Power Dissipation | Below 2100 BTU/h |
| AC power | 85V – 255 V |
| Weight | 27,5kg (60lbs) without lens |
| Dimensions | WxLxH: 356 x 535 x 273 mm (14 x 21 x 11 inch) |
| Safety Regulations | Compliant with UL 1950 and EN60950 |
| Electromagnetic Interference | Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A |
