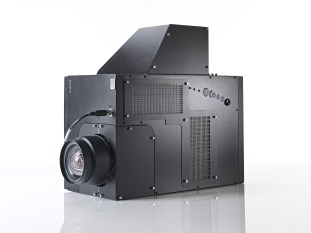

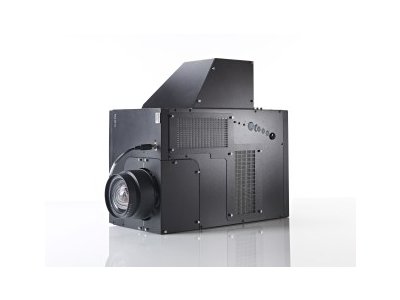

Projektor Barco SIM 7QP HB
Powered by LCoS technology, Barco’s SIM 7QP HB was specifically designed for commercial, fast-jet and rotary-wing training applications that require a high vertical field of view. With a typical light output of 2,500 lumens, the SIM 7QP HB is the world's brightest QXGA projector for the training and simulation market.
Eye-limiting resolution without speed limits
With its QXGA (2048x1536) resolution, the SIM 7QP HB delivers razor-sharp images for the ultimate fidelity in simulation training. LCoS technology has the highest pixel-fill factor of all the current display technologies, and produces a smooth-as-silk picture with an extremely small pixel density. Barco’s unique smear reduction technology ensures that speed will not affect the SIM 7QP HB’s superior image quality, or result in flicker or breakup. Furthermore, the stunning contrast ratio of 6,000,000:1 ensures deep black levels.
Ready for multi-channel action
The SIM 7QP HB comes equipped with Barco-engineered technologies that make it ready for multi-projector set-ups:
• Edge blending technology creates one continuous image without blurry overlap zones where projections converge.
• DynaColor and linked constant light output (CLO) ensure the same light and color levels across the entire screen.
• Warping (geometry correction) enables accurate projection from different angles and across spherical or curved surfaces.
| ECR contrast ratio | 10,000:1 |
|---|---|
| Contrast ratio | Dynamic contrast ratio up to 6,000,000:1 |
| Resolution | QXGA (2048×1536 pixels) |
| Brightness | Typical 2,500 lumens |
| Brightness uniformity | 85% +/- 15% (Additional electrical adjustments can improve the uniformity to nearly 100% with some loss of light) |
| Display | 0.82” QXGA LCoS, 4:3 aspect ratio |
| Inputs | • RGBHV • 2 x dual-link DVI inputs for up to 8bit image formats |
| Compatibility | • All current simulator formats up to QXGA |
| Input Frequencies | • Up to 16bit 330 MHz on dual-link DVI • Up to 275 MHz on RGBHV |
| Lamp | 380 Watt UHP lamp. Typical lifetime: 3,000 hours Lamp warranty 750 hrs or 90 days, whichever comes first |
| Lens Shift | Horizontal shift: -100% to +100% Vertical shift: -50% to +50% (no shift on QSD 0.80:1 lens) |
| Power consumption | Normal operation: Max. 600W |
| Power Dissipation | Below 2100 BTU/h |
| AC power | 90 – 255 VAC |
| Weight | 30.5 kg (67 lbs) without lens |
| Dimensions | WxLxH (without frame): 280 x 535 x 510 mm (11 x 21 x 20 inch) |
| Safety Regulations | Compliant with UL 1950 and EN60950 |
| Electromagnetic Interference | Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A |
