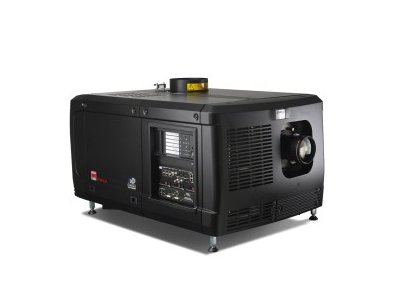

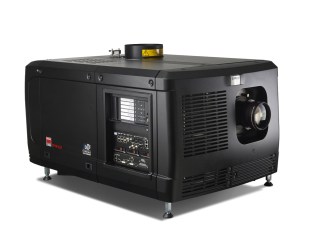

Projektor DP2K-32B
The top-of-the-line Barco Alchemy DP2K-32B is the brightest digital cinema projector on the planet. Thanks to its record light output, vibrant colors and exceptionally rich constrast levels, the DP2K-32B is the ultimate 3D machine for screens up to 32m (105ft) wide. By merging the projector and media server functionalities into one projector module, the DP2K-32B Barco Alchemy projector is a full-fledged, DCI-compliant projector and media-server solution with on-board storage. Reducing the required hardware, it increases simplicity and reliability. The smart projector detects potential operational errors and warns users in case of mishaps. Great in TMS environments, it operates stand-alone in single-screen applications. Thanks to the embedded Barco Web Commander user interface, shows can be created and scheduled remotely.
Low cost of ownership
Geared with the integrated Barco Alchemy technology that drives operational and maintenance costs down, the DP2K-32B offers superior image processing, pristine images and ultimate reliability at a low TCO.
Easy maintenance and operation
The DP2K-32B comes with the ‘Barco Web Commander’ screen management system featuring an intuitive user interface. The projector detects potential operational errors and warns users if, for instance, a scheduled show is missing assets or KDMs. It also has an easy-to-use, fully modular architecture for simple serviceability and higher uptime.
The DP2K-32B projector is also available in a package with a third-party media server and it can be ordered without the Barco Alchemy module as well.
Unique benefits of Barco Alchemy technology
- Combines media server functionalities with cinema processing electronics
- Fewer boxes lead to more reliability and ease-of-use
- Simple operation thanks to intuitive ‘Barco Web Commander’ user interface
- Easy upgrading of Series 2 projectors with Barco Alchemy module
Features
- The brightest projector on the planet
- Lowest cost of ownership thanks to integrated Barco Alchemy technology, lowest lamp operating cost, re-usable filters, low maintenance, etc.
- Includes storage
- Maximum ease-of-use through intuitive ‘Barco Web Commander’ screen management system, running via a web browser
- Barco Web Commander also runs on iOS and Android tablets via the free ‘Barco CineMate’ app
- Barco Communicator for simple configuration and updates of all modules in the projector
- Long-term image quality and brightness thanks to proprietary sealed engine and advanced DMD cooling
- Easy installation and maintenance thanks to proven modular design and common platform with DP2K C-series
| Digital MicroMirror Device™ | 3 x 1.2” DC2K dark metal devices |
|---|---|
| Native resolution | 2,048 x 1,080 pixels |
| Housing | Hermetically sealed DMDs and optical assembly |
| Lamp | 3kW - 7kW (Xenon lamp) |
| Light output | 33,000 lumens |
| Screen size | Up to 32m / 105 ft wide |
| Contrast ratio | 2,000:1 |
| Prime lenses | 1.25 - 1.45 1.4 - 2.05 1.6 - 2.35 1.8 - 2.8 2.15 - 3.6 2.8 - 5.5 |
| Control I/O | 3x Ethernet 8x GPIO (DB 25) 3D interface USB RS-232 interface (DB9) |
| Integrated Cinema Media Processor | JPEG2000 2K & 4K DCI play-out High Frame Rates 3D up to 120fps (60fps per eye) JPEG 2000 bit-rates up to 625Mbps Dual-channel color-correction MPEG-2 (4:2:0 and 4:2:2 up to 60fps) H.264** 2x DisplayPort 1.1a 2x 3G-SDI inputs* 1x HMDI 1.4a input 2D and PCM audio / 4K 24fps (BluRay HD 3D on roadmap) 16x AES/EBU audio channels (2x RJ45) 8x GPI, 8x GPO (4x RJ45) 2x ETH for content connectivity & ingest 2x front-accessible USB 3.0 for fast ingest 2x front-accessible USB 2.0 Video watermarking: Civolution NexGuard Audio watermarking: Civolution Closed captioning devices: Support for SMPTE 430-10 * in testing ** software roadmap |
| Integrated storage | 1.9TB effective storage (RAID-5) 3x 1TB Hot-swappable 2.5" hard-drives |
| Barco Web Commander | Projector Dashboard Projector Control Board Show Player/Editor/Scheduler Automation, 3D, Ingest Dynamic DCP playlists & intermission TMS integration Smart Projector Status Via HTML5 web-browsers including iOS & Android tablets Dual projector passive 3D Auro 11.1 decoding |
| Barco Communicator | Projector installation & configuration Projector update & maintenance |
| Projector diagnostics | via Integrated Media Server via Communicator control software via SNMP agent |
| Power requirements | 3x 400V + N or 3x 220V 30,000 BTU/hr (with 6.5kW lamp) |
| Dimensions | 604(H) x 754(W) x 1129(D) mm 23.78(H) x 29.69(W) x 44.45(D) inch NB.: min. 5 cm of air inlet spacing required at the bottom of projector |
| Weight | 140 kg (309 lbs) |
| Ambient temperature | 35°C / 95°F Max. |
| Options | Barco CineMate App (iOS & Android) - free ACS-2048 3D add-ons Touch screen monitor, inc. Barco Commander & Communicator Pedestal CineCare Web Auro 11.1 license** Dual-projector license Live 3D*** Ghostbusting*** ** In testing *** Software roadmap |
