Projektro Barco DP2K-P

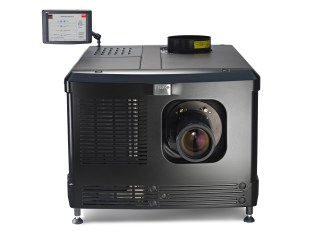

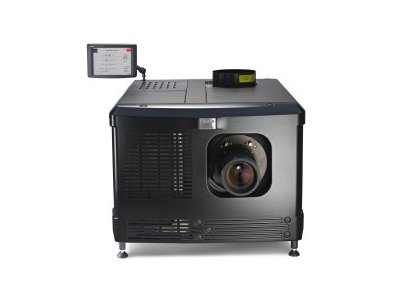

The Barco DP2K-P is a 2K digital projector specifically designed to meet the high-performance needs of the post-production industry.
Proven platform
The DP2K-P builds on the proven platform of the Barco DP2K-B projectors, from which it inherits widely acclaimed benefits such as best-in-class light efficiency, lowest cost of ownership, and ultimate ease-of-use.
Enhanced image detail
To respond to the highly specialized needs of post-production houses, the DP2K-P projector delivers improved contrast, superior brightness uniformity, and a greatly expanded color gamut - considerably wider than the current DCI recommended color space.
Increased control
What's more, the DP2K-P post-production projector is bundled with a special version of the Barco Communicator software, enabling you to fully customize your 2D and 3D look-up tables. This dedicated software provides increased control over the color space, which allows you to do your job with an unprecedented level of accuracy.
Features
- Superior brightness uniformity
- Extra wide color gamut - significantly wider than the DCI recommended color space
- Increased detail thanks to exceptionally high contrast ratio
- Customizable 2D and 3D look-up tables via Communicator software
- Long-term image quality and brightness thanks to proprietary sealed engine and advanced DMD cooling
- Easy to use thanks to the intuitive user interface
- Easy installation and maintenance thanks to proven modular design
- Lowest cost of ownership thanks to lowest lamp operating cost, re-usable filters and modular design
- Next-generation electronics ready for DLP Cinema® Enhanced 4K
| Digital MicroMirror Device™ | 3 x 1.2” DC2K dark metal devices Advanced DLP Cinema™ signal processing with built-in 3D look-up table |
|---|---|
| Native resolution | 2,048 x 1,080 pixels |
| Housing | Hermetically sealed DMD and optical assembly |
| Lamp | 1.2kW - 4.0kW (Xenon lamp) Compatible with models from all major brands |
| Light output | 5,400 lumens (standard 2kW lamp, 10% deviation possible) |
| Screen size | Up to 7.5 m (24.6 ft) (@ 16 ftl (unity gain)) |
| Uniformity | Meets the DCI review room specifications (10% deviation possible) |
| Contrast ratio | 2,500:1 |
| Digital Video Inputs | 2 x SMPTE 292M inputs 2 x DVI input both selectable as single and dual link |
| Control I/O | Ethernet 8x GPIO Serial RS232 |
| Prime lenses | 1.25 - 1.45 1.4 - 2.05 1.6 - 2.35 1.8 - 2.8 2.15 - 3.6 2.8 - 5.5 |
| Color gamut | native red: x = 0.7; y = 0.3 native green: x = 0.2; y = 0.76 native blue: x = 0.145; y = 0.04 |
| Power requirements | 220V |
| Dimensions | 604(H) x 754(W) x 1129(D) mm 23.78(H) x 29.69(W) x 44.45(D) inch NB: min. 5 cm of air inlet spacing required at the bottom of projector |
| Weight | 133 kg (293 lbs) |
| Ambient temperature | 35°C / 95°F |
| Options | ACS-2048 3D add-ons Touch panel Pedestal |
