Vista 4500 Networked multi-function console
Vista 4500 is Barco’s latest family of multi-function consoles offering an ergonomic rugged working position for the most demanding sonar, Command and Control, systems control or situational awareness applications. The Vista 4500’s modular approach makes it ideal for integration into various Combat Information Center (CIC) applications on board surface ships or submarines.
Barco’s Vista 4500 consoles are fully network capable, so they successfully address the needs of modern CIC rooms, where reduced manpower and low cost of ownership are of utmost importance. Networked visualization makes it possible to visualize any real-time data anywhere in the CIC room and offers utmost flexibility, redundancy and survivability.
The Vista 4500 console includes Barco’s RDDS-2 radar solution as well as Barco’s networked video streaming and recording options.

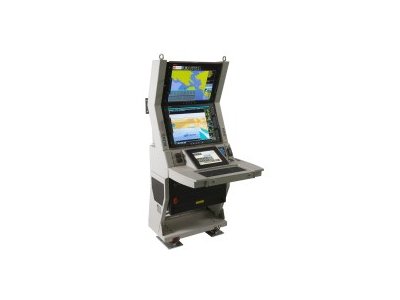

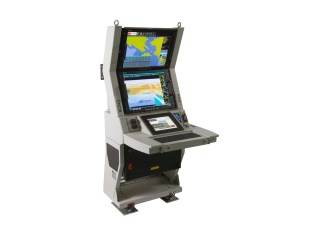

Barco's Vista 4500 comes in two configurations:
Features
User-configurable consoles
Barco's Vista 4500 has a modular design, which enables you to build your console as you need and comply with all operational requirements and constraints.
Vista 4500 can draw from Barco's full product range of qualified rugged components, including rugged naval displays and a wide choice of input devices (track ball, keyboard, joysticks …). In addition, Vista 4500 supports the latest multi-core computing capabilities which allows operators to display and process information according to the latest performance standards.
Barco’s Vista 4500 consoles combine a configurable Base Unit and an ergonomic Human Machine Interface Unit. This fully modular, split-design offers optimal flexibility and allows easy customization according to the required functionalities and the operator’s interfacing needs.
For the HMI Unit, customers can select their preferred flat panel display from Barco’s full range of LCD displays (ranging from 19" to 30"). Operators are free to combine several screen sizes and can configure the operator desk display(s) for their applications.
Visualize and process wherever you want
Barco's Vista-4500 consoles are fully network capable allowing operators to view and process their radar , video and RGB images over the network.
The opportunities of networked visualization for CIC operations are numerous: greater accessibility to data and information throughout the vessel, and more flexibility to view and share your sources wherever there is a need.
Compact display technology
Vista 4500 can make use of Barco's full range of thin and lightweight displays, which have been developed to be extremely rugged, low weight, and reduced in dimension. Barco’s TL display series has been developed with a special eye to easy integration into racks and consoles.
Optional networked radar software
Barco's optional RDDS-2 software is a cost-effective radar visualization solution that allows you to access your radar sources over the network. RDDS-2 makes expensive radar scan conversion hardware redundant and therefore it reduces the system cost significantly.
Optional real-time video and recording solution
Barco's optional Networked Video Distribution platform is an advanced video streaming and display recording solution using uncompressed and/or H264 technologies. This solution offers low-latency video streaming and lossless quality over a 1Gbits and 10Gbits Ethernet network. In addition, it allows recording of any high-resolution display (up to 1920 x 1200 pixels) - either locally on the console or on a remote Network Video Server.
| Power | 115-220 VAC, 50-60 Hz |
|---|---|
| Display | From 19’’ to 30’’ LCDs. Different display layouts possible, including Dual Head Top/Down or Side by Side, Single head |
| Desk | Foldable. Large range of input devices supported (Keyboard, track ball, joystick, throttle) |
| Human factors | MIL-STD-1472 |
| Touch input display | 10” LCD panel with touch screen, Optional embedded computer |
| Control terminal | 2.2” LCD panel for health status, control buttons |
| Extensions | Function keys, external USB port, audio, ... |
| Dimensions HMI unit | Dual Head Top/Down: 650 x 1540 x 950 mm max, Weight < 190 kg Dual Head Side by Side: 1200 x 1300 x 950 mm max, Weight < 220 kg Single Head: 650 x 1300 x 950 mm max, Weight < 170 kg |
| CPU | Intel CoreTM i7-3770 3.4GHz |
| Graphics accelerator | PCIe high-performance graphics board |
| Media | SATA HDD 1TB system disk |
| Operating temperature | 0° C to 50° C |
| Storage temperature | -35° C to 70° C |
| Humidity | 95% at 40°C non-condensing |
| Vibration | MIL-STD-167-1 |
| Shock | MIL-STD-810E |
| EMI / EMC | MIL-STD-461D/E |
| Degree of enclosure | MIL-STD-810E, 45° |
| Acoustic Noise | MIL-STD-740-1 (SH) Grade C, 54 dB(A) |
| Electrical standard | MIL-STD-1399 Section 300A, STANAG 1008 ed9 |
