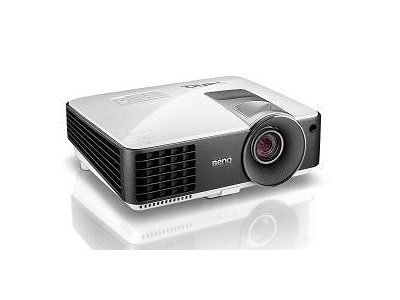

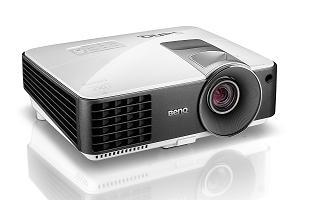

Projektor BenQ MX703
Offering Lower TCO and Optimized Projection Through Dynamic Power Saving Uncompromised brightness, exquisite picture quality and optimized lamp life – BenQ’s SmartEco technology has perfected what a DLP projector can do for a 21st century classroom. With this special innovation, schools are able to save up to 70% of lamp power consumption and lower maintenance costs through dynamic power saving features while bringing an ultra-vivid learning experience into every lesson.
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
Normal Mode
296W Projector Power
Consumption
by Average
SmartEco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption
by Average
(Source: 2010 Philips white paper)
The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students’ focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by 70%.
Full Power On
100% Lamp Power
Attention on the Projection Screen
Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
With the built-in speaker, the MX703 can be used as an audio system when it's on the standby mode. This saves you the trouble as well as the extra budget for getting a separate audio system.
The MX703 offers an optimized lamp life of up to 6500 hours*, which is twice the lamp life expectancy of an average projector lamp. This helps lower the number of lamp changes and keep maintenance to a minimum.
*Lamp life results will vary depending on environmental conditions and usage.
Featuring a filter-free design, the MX703 requires no filter cleaning or filter replacements, which virtually reduces the labor cost as well as the budget for filter maintenance.
The MX703 comes with enhanced audio support for your classroom, delivering crisp-clear audio performance with built-in 10W speaker power. Now, teachers can teach with ease and students can learn more effectively.
BenQ education projectors are standard-equipped with DLP Link™-supported 3D projection to offer students the same amazing 3D effects seen in 3D movies. The 3D formats supported by the MX703 are 3D field-sequential, 3D frame packing, 3D top-and-bottom and 3D side-by-side. Furthermore, this incredible projector can be connected to a Blu-ray DVD player for even more stunning visual quality.
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively-offering them full access and control over every projector directly from their workstations. The MX703 offers seamless support for the Crestron RoomView and PJ-Link LAN Control system.
Cooling time itself has been reduced by over 60%, saving your time and minimizing the risk of heat damage to sensitive internal components.
The Auto Power Off feature allows the projector to turn off automatically if no input signal is detected after a set period of time so no power is wasted.
The Signal Power On feature turns on your projector automatically once input signal is detected for added convenience.
This convenient feature turns on the projector wheneverit is connected to a power source, saving teachers time and hassle.
The Instant Restart feature gives teachers a 90-second window period to turn the projector back on immediately when it has been switched off by accident – no waiting necessary.
BenQ DLP®Projectors︱ Long-Lasting Image Perfection with DLP Technology
Timeless Image Quality
BenQ DLP Projectors are built with enduring enjoyment in mind, ensuring razor-sharp clarity, ultra-readability and true-to-life color for years to come. We use leading-edge DLP Technology to reflect pure light from millions of micro mirrors on a DMD chip through our advanced color wheels. Since the mirrors are colorless and protected within a nearly-sealed engine, BenQ DLP Projectors have no aging problems and are virtually immune to image decay, consistently delivering picture excellence time and time again. In fact, after 2,000 hours of intense usage, inserting a new bulb produces image quality comparable to a brand-new projector.
Non-DLP Projector
BenQ DLP Projector
DLP Technology also affords a filter-free engine design for carefree confidence in long-lasting image quality and reduced total cost of ownership. BenQ’s SmartEco™ Technology further boosts contrast performance and image quality endurance while saving up to 70% on lamp power consumption.
Razor-Sharp Clarity with Ultra-Readability
Enabling a 96% fill factor, DLP Technology supplies pixel circuitry behind the pixel, thereby eliminating the thick dark bezels around individual pixels, which diminish color and detail. A higher fill factor and less black border translate to noticeably purer, more intense color and smoother image quality.
BenQ DLP Projectors also feature high contrast ratios for flawless rendering of small text, fine lines, and dark scene details. Blacks are deeper and overall image quality is more focused and clean. Your presentations will be easily readable and highly effective, even from the back row of a well-lit venue.
Vibrant, True-to-Life Colors
Even in lit venues, BenQ DLP Projectors achieve the optimal balance of brightness and color accuracy, with BrilliantColor™ Technology additionally boosting true-to-life colors that captivate. BrilliantColor enables up to six-color processing by incorporating the secondary colors Yellow, Cyan, and Magenta along with primary Red, Blue, and Green. From intense hues to elusive mid-tones like aqua blues and light yellows, your every presentation is rendered in pure, living splendor.
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
| Projection System | DLP |
|---|---|
| Native Resolution | XGA(1024 x 768) |
| Brightness* | 3000AL |
| Contrast Ratio | 13000:1 |
| Display Color | 1.07 Billion Colors |
| Lens | F2.54-2.73, f=18.18-21.84mm |
| Aspect Ratio | Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio | 1.64-1.97 ( 60"@ 2m ) |
| Image Size (Diagonal) | 37"~300" |
| Zoom Ratio | 1.2:1 |
| Lamp Type | 210W |
| Lamp(Normal/Economic Mode/SmartEco Mode)* | 4500/6000/6500 hours |
| Keystone Adjustment | 1D, Vertical ± 40 degrees |
| Projection Offset | 110% ±5% |
| Resolution Support | VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency | 15~102KHz |
| Vertical Scan Rate | 23~120Hz |
| Interface | Computer in (D-sub 15pin) x 2(Share with component) Monitor out (D-sub 15pin) x 1 Composite Video in (RCA) x 1 S-Video in (Mini DIN 4pin) x 1 HDMI x1 Audio in (Mini Jack) x 2 Audio in (L/R) x1 Audio out (Mini Jack) x 1 Speaker 10W x 1 USB (Type mini B) x1 (Download & page/down) RJ45 x1(LAN control) RS232 (DB-9pin) x 1 IR Receiver x2 (Front+real) |
| Dimensions(W x H x D) | 287.3 x 114.4 x 232.6 mm |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Weight | 2.4kg(5.28lbs) |
| Audible Noise | 33/28 dBA (Normal/Economic mode) |
| Power Supply | AC100 to 240 V, 50 to 60 Hz |
| Power Consumption | 306W(typical), Standby<0.5W |
| On-Screen Display Languages | Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes | Dynamic/Presentation/sRGB/Cinema/(3D)/User 1/User 2 |
| Accessories (Standard) | Lens Cover Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide Warranty Card (by region) VGA(D-sub 15pin) Cable |
| Accessories (Optional) | Presentation Plus Spare Lamp Kit Ceilling Mount 3D Glasses Carry bag |
