Cisco TelePresence System 1300 Series

99 999,00 zł

Produkt dostępny

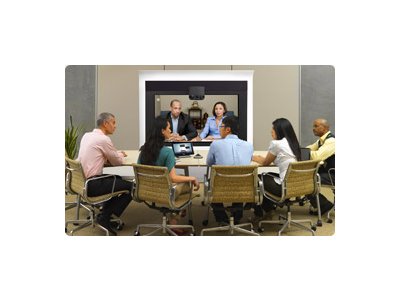

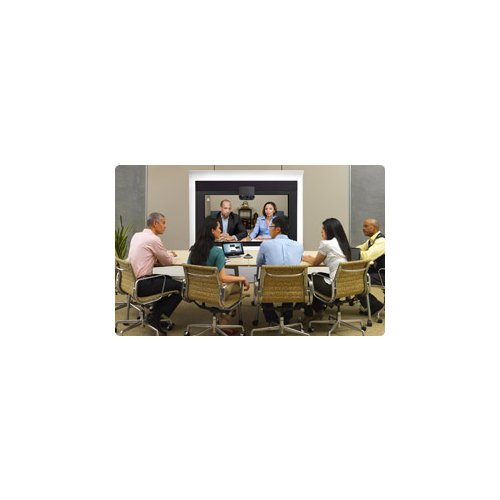

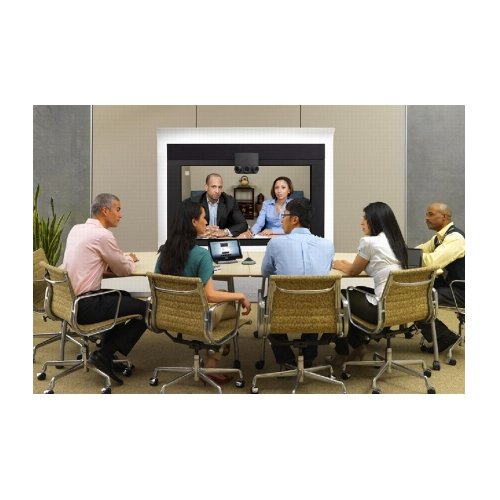

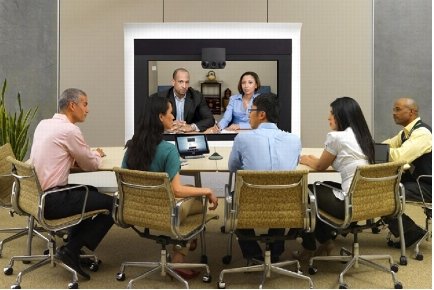

Zalety rozwiązania Cisco TelePresence można wykorzystać w pomieszczeniach konferencyjnych. Dzięki usprawnionej, eleganckiej konstrukcji z jednym ekranem i trzema kamerami produkty Cisco TelePresence 1300 Series obsługują spotkania z maksymalnie sześcioma osobami w zwykłym pomieszczeniu konferencyjnym.

W przypadku pytań, proszę o kontakt:

adam@kraftmann.com

GSM. 504 58 64 88

tel. 22 490 31 43

Product Specifications

Specification	Description
Product compatibility	• Cisco Unified Communications Manager 8.5.2 & 8.6.2 or later • Cisco TelePresence Multipoint Switch 1.8 or later • Cisco TelePresence Manager 1.8 or later
Software compatibility	• Cisco TelePresence System Software Version 1.9 or later
User interface	• Cisco TelePresence Touch Screen (12-in.)
Cisco TelePresence high-definition camera	• Complementary metal oxide semiconductor (CMOS) 1/3-inch sensor • CS-mount lens • 1080p, 30 or 60 frames per second (fps) • Minimum illumination: 300 lux • Manual focus
Physical dimensions (H x W x D)	• Minimum room dimensions: 8 x 18 x 13 ft (243.84 x 548.64 x 396.24 cm) • Wall-mounted: 77.4 x 80 x 7.5 in. (196.60 x 203.20 x 19.05 cm)
Weight	Cisco TelePresence TX1310 65: Maximum 600 lb (272.16 kg)
Power	Cisco TelePresence TX1310 65: Maximum 1440W, typical 1216W, standby 240W
Temperature range	Operating: 41 to 95ºF (5 to 35ºC) Relative humidity: 10 to 95% (noncondensing)
Firmware upgrades	Downloadable from Cisco Unified Communications Manager
Regulatory compliance	• CE marking • UL/CSA/IEC/EN/AS/NZS/60950 • 47CFR Part 15 Class A • CISPR22/EN55022 Class A

Video and Audio Specifications

Specification	Description
Bandwidth consumption	3 to 4 Mbps (1080p) or 1.5 to 3 Mbps (720p) for IP quality-of-service (QoS) connections recommended
Video standards	H.264, Telepresence Interoperability Protocol (TIP)
Video frame rate	Video frame rate 60fps using H.264
Data and graphics frame rate	TX1310 65 graphics sharing at 5 fps (default configuration) & 30fps (at no additional cost)
Native National Television Standards Committee (NTSC)	720p and 1080p
Live video resolution	1920 x 1080 Native
H.264 interoperability	Using Common Intermediate Format (CIF), G.722, and G.711 with Cisco Unified Videoconferencing 3500 Series platforms
Audio standards	G.711, G.722, and AAC-LD (22 kHz)
Audio features	Cisco Dynamic Echo Cancellation
