Cisco TelePresence System Profile Series to inteligentne, zaawansowane rozwiązanie dla niewielkich i dużych pomieszczeń do pracy zespołowej. Użytkownicy mają zagwarantowaną prostą i spójną obsługę wideo o znakomitej jakości obrazu. Współpraca staje się łatwa, ponieważ członkowie zespołu są prezentowani w naturalnej, realistycznej postaci. Równocześnie można udostępniać multimedia o wysokiej jakości.

Product Overview

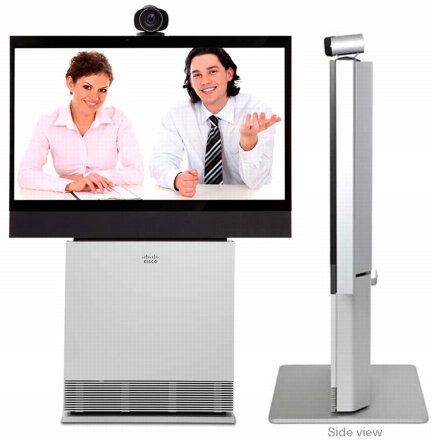

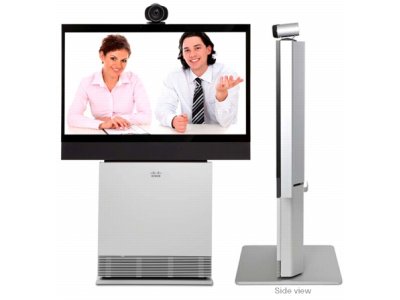

The Cisco TelePresence Profile 42-inch makes video communications accessible to teams everywhere. With this system you can transform any meeting space into a video-enabled team room. Whether you are just getting started with video communications or conducting a large-scale deployment, the Cisco TelePresence Profile 42-inch delivers 1080p high-definition (HD) performance in a simple, intuitive design (Figure 1).

The Cisco TelePresence Profile 42-inch comes with both Cisco TelePresence MultiSite technology and Multiway capabilities and the performance of Cisco TelePresence Codec C40 (Codec C40).

Cisco TelePresence Profile 42-inch Features

Table 1 summarizes the key features of the Cisco TelePresence Profile 42-inch.

W przypadku pytań, proszę o kontakt:

adam@kraftmann.com

GSM. 504 58 64 88

tel. 22 490 31 43

Product Specifications

Specification	Description
Cisco TelePresence Profile 42-inch Common Features:
Protocols	• H.323 • SIP • ISDN (requires Cisco TelePresence ISDN Link)
Bandwidth	• H.323/SIP up to 6 Mbps point-to-point • H.323/SIP up to 10-Mbps MultiSite
Video standards	• H.261, H.263, H.263+, and H.264
Video features	• Native 16:9 widescreen • Advanced screen layouts • Intelligent video management • Local auto layout
Dual stream	• H.239 (H.323) dual stream • BFCP (SIP) dual stream • Support for resolutions up to WXGAp30 in dual stream simultaneously with any Main Stream resolution
Firewall traversal	• Cisco^® TelePresence Expressway technology • H.460.18 and H.460.19 Firewall Traversal
Embedded encryption	• H.323/SIP point-to-point • Standards-based: H.235 v2 & v3 and AES • Automatic key generation and exchange • Supported in dual stream
IP network features	• DNS lookup for service configuration • Differentiated services (QoS) • IP adaptive bandwidth management (including flow control) • Auto gatekeeper discovery • Dynamic playout and lip-sync buffering • H.245 DTMF tones in H.323 • Date and time support through NTP • Packet loss based downspeeding • URI Dialing • TCP/IP • DHCP • Direct DNS dialing • 802.1x Network authentication • ClearPath • Medianet: Mediatrace and Metadata
IPv6 network support	• Single call stack support for both H323 and SIP • Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, and Differentiated Services (DiffServ) • Support for both Static and Auto configuration (stateless address auto configuration)
Security features	• Management through HTTPS and SSH • IP administration password • Menu administration password • Disable IP services • Network settings protection
Network interfaces	• Two LAN/Ethernet (RJ-45) 10/100/1000 Mbit (Cisco Telepresence Codec C40) • One LAN/Ethernet (RJ-45) 10/100/1000 Mbit
Other interfaces	• USB device for future usage
Cisco TelePresence PrecisionHD Camera (1080p)	• 1/3 inch CMOS • 12 x zoom • +15°/-25° tilt and +/- 90° pan • 43.5° vertical field of view • 72° horizontal field of view • Focus distance 0.3m-infinity • 1920 x 1080 pixels progressive @ 60fps • Other formats supported (See Cisco TelePresence Precision HD Camera product specification sheet) • Automatic or manual focus, brightness, and whitebalance • Far-end camera control • Daisy-chain support (Visca protocol camera) • Dual HDMI and HD-SDI output • Upside-down mounting with automatic flipping of picture
System management	• Support for the Cisco TelePresence Management Suite • Total management through embedded SNMP, Telnet, SSH, XML, and SOAP • Remote software upload: via web server, SCP, HTTP, and Secure HTTP (HTTPS) • One RS-232 for local control and diagnostics • Remote control and on-screen menu system • Cisco Telepresence touch screen user interface device
Directory services	• Support for local directories (My Contacts) • Corporate directory • Unlimited entries using server directory supporting LDAP and H.350 • Unlimited number for Corporate Directory (through Cisco TelePresence Management Suite) • 200 number local directories in local languages • Received calls with date and time • Placed calls with date and time • Missed calls with date and time
Power	• Auto-sensing power supply • 100-120/200-240 VAC, 60/50 Hz, 6A max
Operating temperature and humidity	• 32 to 95° F (0 to - 35°) ambient temperature • 10 to 90% relative humidity (RH)
Storage and transport temperature	• -20o 60° C (-4to 140° F) at RH 10-90% (non-condensing)
Base	Available with: • Floor standing footplate • Wheel base • Wall mount on pedestal
Dimensions	Cisco TelePresence Profile 42-inch: • Height: 63.78 in. (162 cm) • Width: 38.58 in. (98 cm) • Depth: 6.7 in. (17 cm) • Weight: 202.8 lbs. (92 kg)
Cisco TelePresence Profile 42-inch with Cisco TelePresence Codec C40:
Full HD LCD display remote control, Cisco TelePresence PrecisionHD Camera (1080p), microphone, Digital Audio Module, integrated speakers and integrated cabling. Choice of installation configuration: floor stand and wheel base or wall mount on pedestal.
Video input (four inputs)	Two HDMI Inputs: Supported Formats: • 1920x1080@60 and 59.94 Hz (1080p60) • 1920x1080@50 Hz (1080p50) • 1920x1080@30 and 29.97 Hz (1080p30) • 1920x1080@25 Hz (1080p25) • 1920x1080@24 and 23.97 Hz (1080p24) • 1280x720@60, 59.94 and 50 Hz (720p) • 720x480@60 and 59.94 Hz (480p60) • 640x480@60 Hz (480p60) • 1600x1200@50 and 60 Hz (UXGA) • 1280x1024@60 and 75 Hz (SXGA) • 1024x768@60, 70, 75, and 85 Hz (XGA) • 800x600@56, 60, 72, 75, and 85 Hz (SVGA) • 1920x1200@50 and 60 Hz (WUXGA) • 1680x1050@60 Hz (WSXGA+) • 1440x900@60 Hz (WXGA+) • 1280x768@60 Hz (WXGA) One DVI-I Inputs: Supported Formats: Analog (VGA): • 1920x1080@60 Hz (1080p) • 1280x720@60 Hz (720p) • 1600x1200@60 Hz (UXGA) • 1280x1024@60 and 75 Hz (SXGA) • 1280x960@60 Hz • 1024x768@60, 70, 75, and 85 Hz (XGA) • 1920x1200@50 Hz (WUXGA) • 1680x1050@60 Hz (WSXGA+) • 1440x900@60 Hz (WXGA+) • 1280x800@60 Hz (WXGA) • 1280x768@60 Hz (WXGA) Analog (YPbPr): • 1920x1080@60, 50, 30, and 25 Hz (1080p) • 1280x720@60, 50, and 30 Hz (720p) • 720x576@50 Hz (576p50) • 720x480@60 Hz (w480p60) Digital (DVI-D): • Same as HDMI, ref. above. One S-video/Composite Input (BNC Connectors): • PAL/NTSC • Extended Display Identification Data (EDID)
