Cisco TelePresence System Profile 55-inch Single and Dual Data Sheet

99 999,00 zł

Produkt dostępny

Cisco TelePresence System Profile Series to inteligentne, zaawansowane rozwiązanie dla niewielkich i dużych pomieszczeń do pracy zespołowej. Użytkownicy mają zagwarantowaną prostą i spójną obsługę wideo o znakomitej jakości obrazu. Współpraca staje się łatwa, ponieważ członkowie zespołu są prezentowani w naturalnej, realistycznej postaci. Równocześnie można udostępniać multimedia o wysokiej jakości.

Product Overview

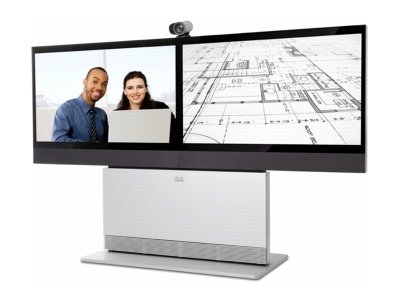

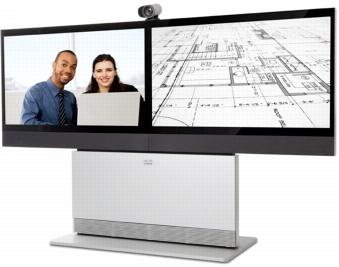

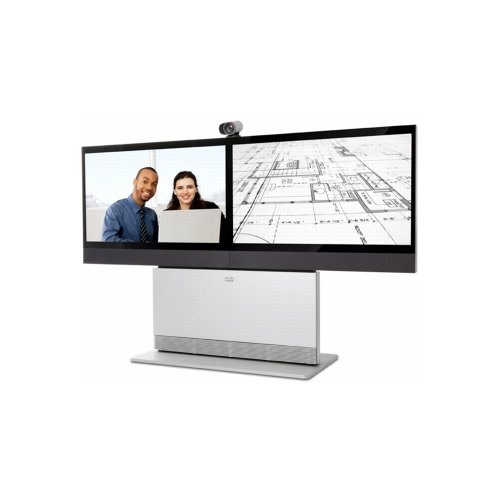

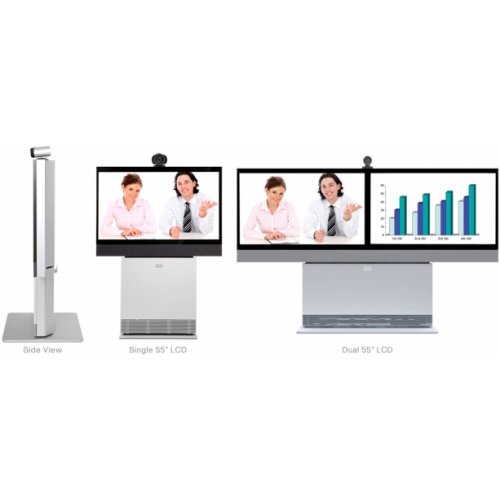

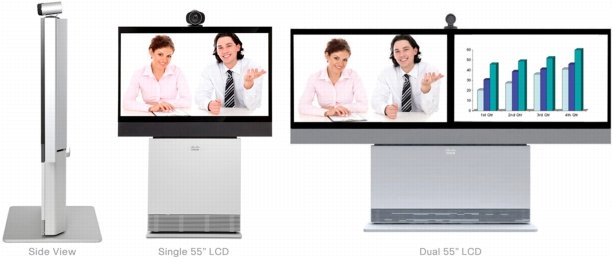

The Cisco Telepresence Profile 55-inch Single and Dual is the next-generation team-collaboration video solution with up to 1080p60 high-definition (HD) resolution. It brings colleagues face-to-face at the touch of a finger through a user-friendly touch interface. With these systems you can easily share presentations and multimedia to inspire ideas and generate better discussions. The Cisco Telepresence Profile 55-inch Single comes in two performance configurations, the codec C40 and codec C60 configuration, while the Cisco Telepresence Profile 55-inch Dual has one performance configuration, the codec C60.

W przypadku pytań, proszę o kontakt:

adam@kraftmann.com

GSM. 504 58 64 88

tel. 22 490 31 43

Product Specifications

Specification	Description
Unit Delivered Complete With:	• Full HD LCD display(s), Cisco TelePresence Codec C60/C40, Cisco Telepresence touch screen UI, remote control, Cisco TelePresence Precision HD Camera (1080p), Table microphones (2x/3x with single screen; 4x with dual screen), Digital Audio Module, integrated speakers and integrated cabling and cable management
Monitor	• Available with: • 55-inch Full HD LCD, 16:9 and 1080 x 1920 resolution • Dual monitor configuration includes 2x 55-inch Full HD LCD monitors
Base	• Available with: • Floor standing footplate • Wheel base (only available on 55-inch single) • Wall mount on pedestal
Bandwidth	• H.323/SIP up to 6 Mbps point-to-point • H.323/SIP up to 10 Mbps MultiSite
Firewall Traversal	• Cisco Telepresence Expressway technology • H.460.18 and H.460.19 Firewall Traversal
Video Standards	• H.261, H.263, H.263+, H.264
Video Features	• Native 16:9 Widescreen • Advanced Screen Layouts • Intelligent Video Management • Local Auto Layout
Video Input - Live Video Resolution
Video Input (Five inputs - C60) (Four inputs - C401)	Two HDMI Inputs, Supported Formats: • 1920x1080@60 and 59.94 Hz (1080p60) • 1920x1080@50 Hz (1080p50) • 1920x1080@30 and 29.97 Hz (1080p30) • 1920x1080@25 Hz (1080p25) • 1920x1080@24 and 23.97 Hz (1080p24) • 1280x720@60 and 59.94 Hz (720p60) • 1280x720@50 Hz (720p50) • 720x480@60 and 59.94 Hz (480p60) • 640x480@60 Hz (480p60) • 1600x1200@50 and 60 Hz (UXGA) • 1280x1024@60 and 75 Hz (SXGA) • 1024x768@60, 70, 75 and 85 Hz (XGA) • 800x600@56, 60, 72, 75 and 85 Hz (SVGA) • 1920x1200@50 and 60 Hz (WUXGA) • 1680x1050@60 Hz (WSXGA+) • 1440x900@60 Hz (WXGA+) • 1280x768@60 Hz (WXGA) Two (C60) or One (C40) DVI-I Inputs, Supported Formats: Analog (VGA): • 1920x1080@60 Hz (1080p) • 1280x720@60 Hz (720p) • 1600x1200@60 Hz (UXGA) • 1280x1024@60 and 75 Hz (SXGA) • 1280x960@60 Hz • 1024x768@60, 70, 75 and 85 Hz (XGA) • 1920x1200@50 Hz (WUXGA) • 1680x1050@60 Hz (WSXGA+) • 1440x900@60 Hz (WXGA+) • 1280x800@60 Hz (WXGA) • 1280x768@60 Hz (WXGA) Analog (YPbPr): • 1920x1080@60 Hz (1080p60) • 1920x1080@50 Hz (1080p50) • 1920x1080@30 Hz (1080p30) • 1920x1080@25 Hz (1080p25) • 1280x720@60 Hz (720p60) • 1280x720@50 Hz (720p50) • 1280x720@30 Hz (720p30) • 720x576@50 Hz (576p50) • 720x480@60 Hz (w480p60) Digital (DVI-D): • Same as HDMI, ref. above One S-video/Composite Input (BNC Connectors): • PAL/NTSC • Extended Display Identification Data (EDID)
Video Output (Three Outputs C60) (Two Outputs C401)	One HDMI, One DVI-I Output, Supported Formats: • 1920x1080@60 Hz (1080p60) • 1920x1080@50 Hz (1080p50) • 1280x720@60 Hz (720p60) • 1280x720@50 Hz (720p50) • 1600x1200@60 Hz (UXGA) • 1280x1024@60 Hz (SXGA) • 1024x768@60 Hz (XGA) • 800x600@60 Hz (SVGA) • 640x480@60 Hz (VGA) • 1920x1200@60 Hz (WUXGA) • 1366x768@60 Hz • 1360x768@60 Hz • 1280x768@60 Hz (WXGA) • VESA Monitor Power Management • EDID One Composite Output (BNC Connector) (only on codec C60) • PAL/NTSC • Extended Display Indentification Data (EDID)
Live Video Resolutions (Encode and Decode)	• 176x144@30 Hz (QCIF) • 352x288@30 Hz (CIF) • 512x288@30 Hz (w288p) • 576x448@30 Hz (448p) • 768x448@30 Hz (w448p) • 704x576@30 Hz (4CIF) • 1024x576@30 Hz (w576p) • 640x480@30 Hz (VGA) • 800x600@30 Hz (SVGA) • 1024x768@30 Hz (XGA) • 1280x1024@30 Hz (SXGA) • 1280x720@30 Hz (720p30) • 1920x1080@30 Hz (1080p30) • 1280x768@30 Hz (WXGA) • 1440x900@30 Hz (WXGA+) • 1680x1050@30 Hz (WSXGA+) • 1600x1200@30 Hz (UXGA) • 512x288@60 Hz (w288p60) • 768x448@60 Hz (w448p60) • 1024x576@60 Hz (w576p60) • 1280x720@30, 60 fps (720p60) • 1920x1080@60 fps (1080p60) 2 • 720p30 from 768kbps • 720p60 from 1152kbps • 1080p30 from 1472kbps • 1080p60 from 2560kbps
Audio Standards	• G.711, G.722, G.722.1, 64 bit and 128 bit MPEG4 • AAC-LD and AAC-LD Stereo
Audio Features	• CD-quality 20KHz mono and stereo • Four (C60) or Two (C40) separate acoustic echo cancellers • 4-port (C60) 2-port(C40) audio mixer • Automatic Gain Control (AGC) • Automatic noise reduction • Active lip synchronization • ALD (Assistive Listening Devices) support with acoustic echo cancellation (only C60)
Audio Inputs (Seven Inputs C60) (Five Inputs C40)	• Four (C60) or Two (C40) microphone, 48V phantom powered, XLR connector each with separate echo cancellers and noise reduction; all microphones can be set for balanced line level • Two RCA/Phono, Line Level: Stereo PC input, configurable to 2 x RCA/Phono, Line Level: Mono auxiliary/DVD input • One HDMI, digital: Stereo PC/DVD input
Audio Outputs (3 Outputs)	• Two RCA/Phono, line level, stereo main audio, configurable to S/PDIF or two RCA/Phono outputs, line level, mono to recording device • One HDMI, digital, stereo main audio
Dual Stream	• H.239 (H.323) dual stream • BFCP (SIP) dual stream • Support for resolutions up to 1080p30/WUXGA, independent of main stream resolution (C60) • Support for resolution up to WXGA, independent of main stream resolution (C40)
Multipoint Support	• Four-way embedded SIP/H.323 Multipoint (see reference Multisite Features) • Cisco Telepresence Multiway support (requires Cisco Telepresence Video Communication Server (Cisco VCS) and Cisco Telepresence MCU) • Ability to natively join multipoint conferences hosted on Cisco Telepresence Multipoint Switch (CTMS)
Multisite Features (Embedded Multipoint)	• Four-way 720p30 (C60)/w576p30 (C40) High Definition SIP/H.323 MultiSite • Full individual audio and video transcoding • Individual layouts in MultiSite continuous presence (takes out Self View) • H.323,SIP and Voice over IP (VoIP) in the same conference
