CHANNELS
Number of output channels
2
Output connection type
Euroblock
Output configuration
2x300 W RMS @ 4 Ω
Number of input channels
2
Input connection type
Euroblock
Input configuration
Analogue audio inputs
OUTPUT POWER
Max output power @ 4Ω
310 W
Max output power @ 8Ω bridge mode
600 W
SIGNAL
Input sensitivity
0dB
Input impedance
>20kΩ
Frequency response
20Hz - 25kHz (-1dB, -3dB)
THD + Noise
<0.05% @ 1kHz Full Power
SNR
>85dB 20Hz - 20kHz @ 1W/4Ω
Crosstalk
>55dB @ 1kHz
CMRR
>55dB
Damping factor
>150 1kHz @ 8Ω
ELECTRICAL
Power supply
Universal, regulated switch mode with PFC (Power Factor Correction)
AC mains requirement
See characteristics in the back of the unit

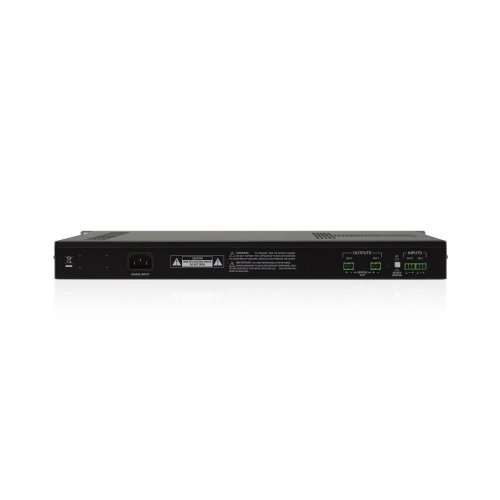

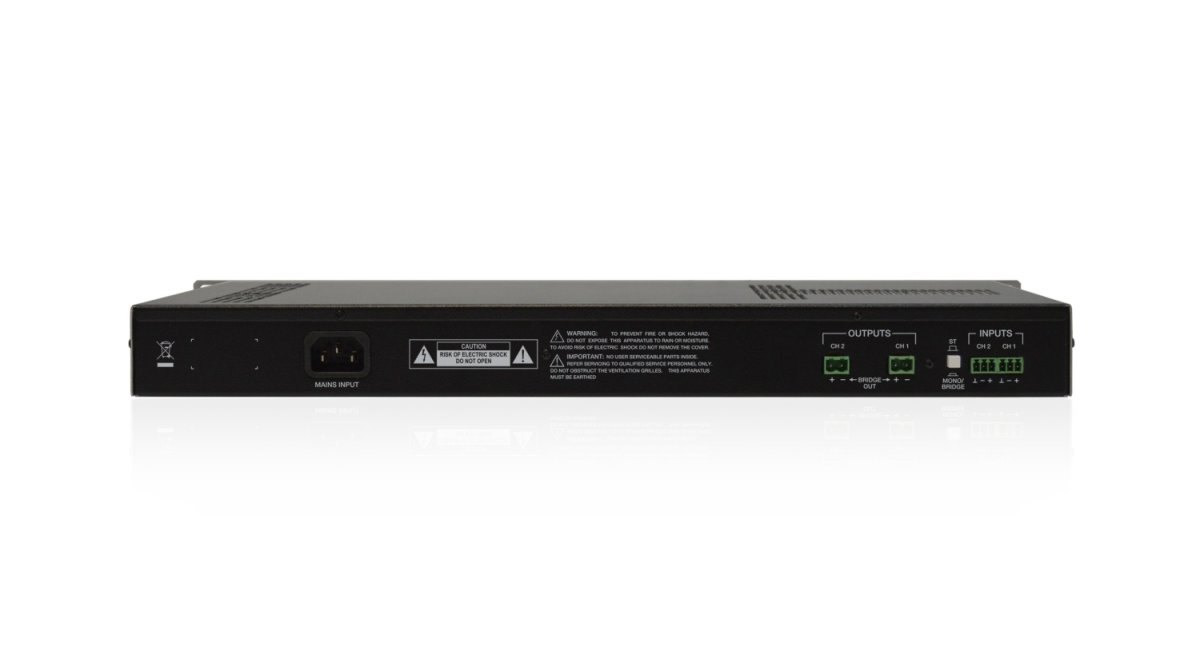

AC mains connector
AC socket connector (IEC)
POWER CONSUMPTION
Power Consumption (1/3 POWER, @ 4Ω)
pink noise, 251 W
Power Consumption (1/8 POWER, @ 4Ω)
pink noise, 110 W
Power Consumption (IDLE)
26 W
Power Consumption (STBY)
22 W
TECHNOLOGIES
Amplification technology
Class D
Energy save
Auto standby function
Efficiency
87% @ max power
Cooling
Convection (fanless)
PROTECTIONS
AC protection
No
DC protection
No
VHF protection
No
Shrot-circuit protection
Yes
Clip limiter
Yes
Long term limiter
No
Thermal protection
Yes
SETTINGS
Attenuators
Front panel knobs per channel
Filters
15Hz 3rd order Butterworth Hihg-Pass filter
Output settings
Operating mode selector: STEREO, MONO - BRIDGE (Lo-Z)
Auto stand-by function
Front pannel switch
Auto stand-by time
90 seconds

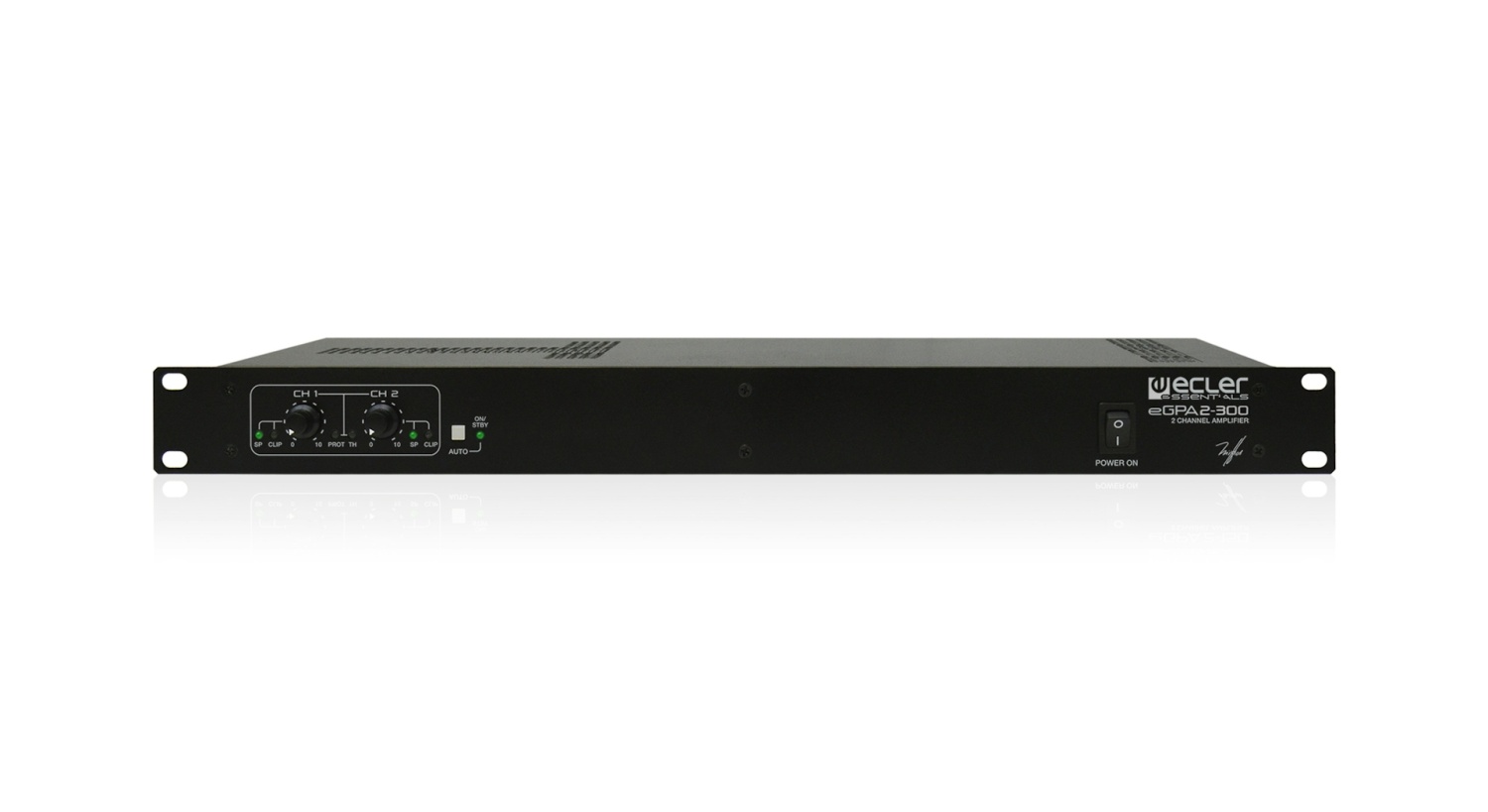

Power ON/OFF
Front panel switch & indicator
MONITORING
Signal Present
SP LED (Green) per channel
Cliping
CLIP LED (Red) per channel
Thermal
TH LED (Red)
Protect
PROT LED (Red)
Standby
STBY LED (Orange)
PHYSICAL
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
Installation options
19" rack format (1RU)
Dimensions
440 x 44 x 221 mm / 17.32 x 1.73 x 8.70 in. (WxHxD)
Weight
3.4 kg / 7.5 lb
