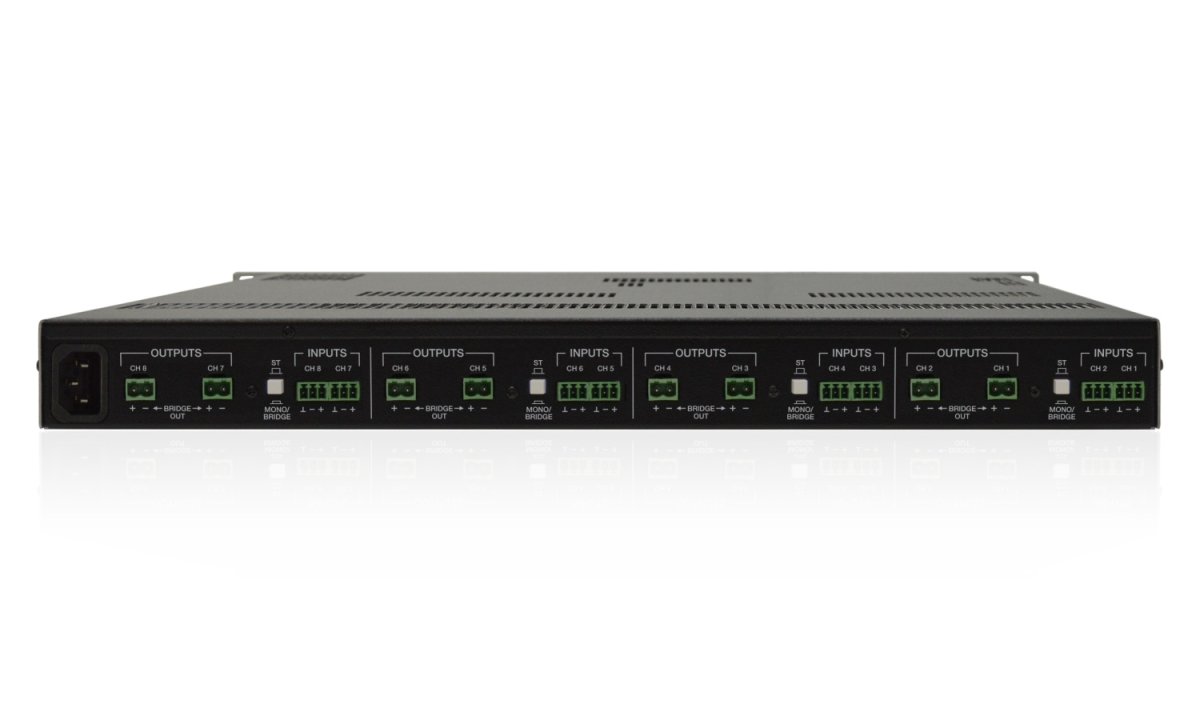

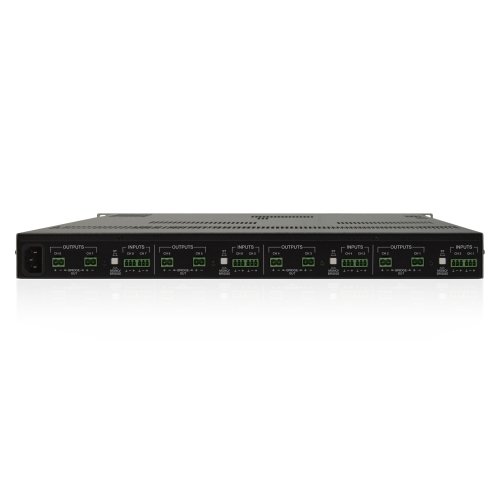

CHANNELS
Number of output channels
8
Output connection type
Euroblock
Output configuration
8x150 W RMS @ 4 Ω
Number of input channels
8
Input connection type
Euroblock
Input configuration
Analogue audio inputs
OUTPUT POWER
Max output power @ 4Ω
144W
Max output power @ 8Ω bridge mode
290W
SIGNAL
Input sensitivity
0dB
Input impedance
>20kΩ (10kΩ unbalanced)
Frequency response
20Hz - 25kHz (-1dB, -3dB)
THD + Noise
<0.05% @ 1kHz Full Power
SNR
>85dB 20Hz - 20kHz @ 1W/4Ω
Crosstalk
>55dB @ 1kHz
CMRR
>55dB
Damping factor
>150 1kHz @ 8Ω
ELECTRICAL
Power supply
Universal, regulated switch mode with PFC (Power Factor Correction)
AC mains requirement
100-240 V @ 50-60Hz
AC mains connector
AC socket connector (IEC)
POWER CONSUMPTION
Power Consumption (1/3 POWER, @ 4Ω)
pink noise, 536 W
Power Consumption (1/8 POWER, @ 4Ω)
pink noise, 226 W / 260 VA
Power Consumption (IDLE)
58 W
Power Consumption (STBY)
36 W
TECHNOLOGIES
Amplification technology
Class D
Energy save
Auto standby function
Efficiency
80% @ max power
Cooling
Convection (fanless)
PROTECTIONS
AC protection
No
DC protection
No
VHF protection
No
Shrot-circuit protection
Yes
Clip limiter
Yes
Long term limiter
No
Thermal protection
Yes

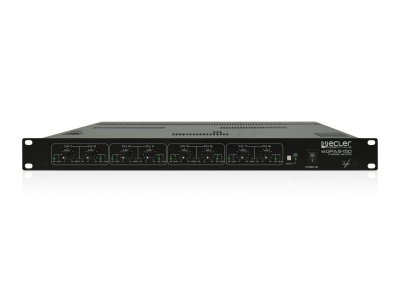

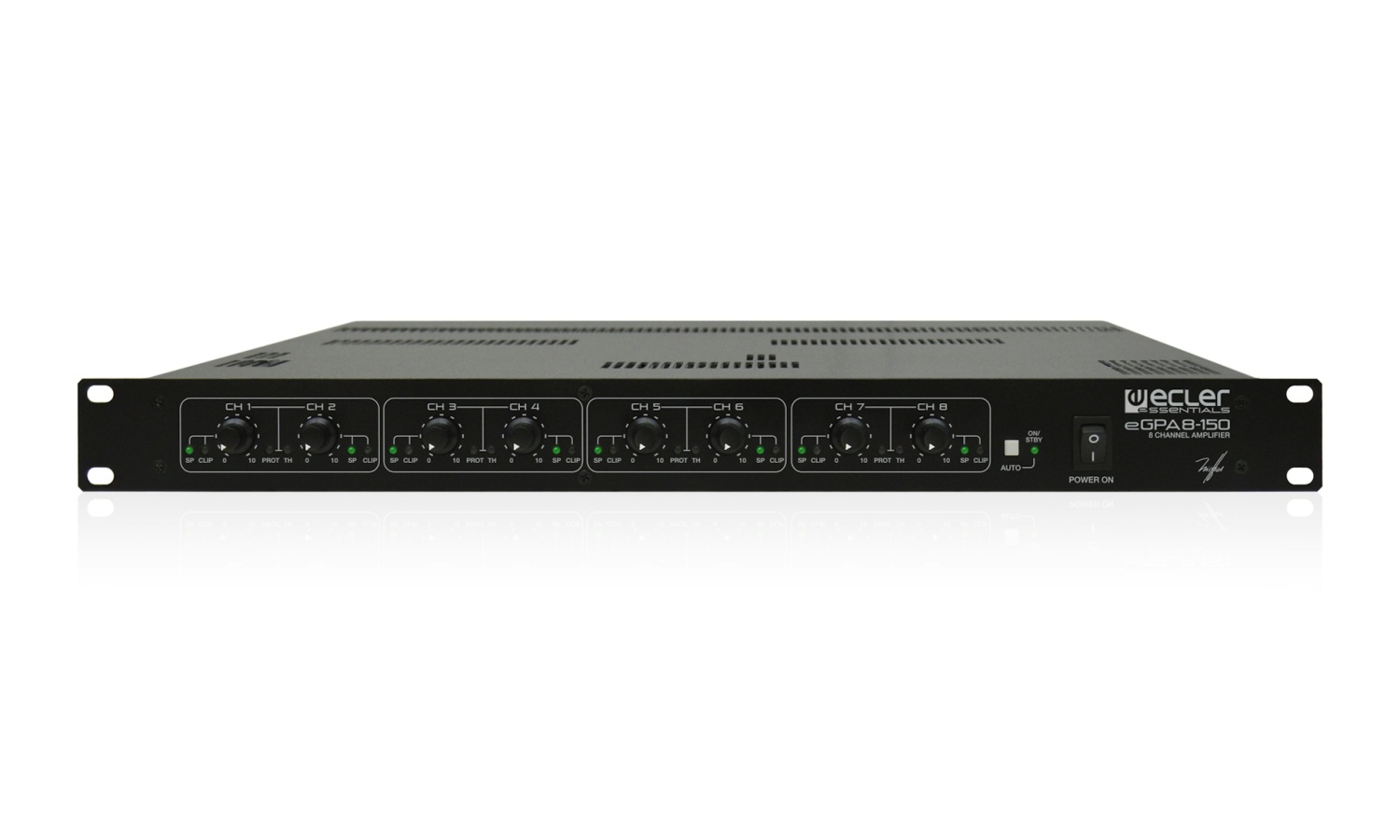

SETTINGS
Attenuators
Front panel knobs per channel
Filters
15Hz 3rd order Butterworth Hihg-Pass filter
Output settings
Operating mode selector: STEREO, MONO - BRIDGE (Lo-Z)
Auto stand-by function
Front panel switch
Auto stand-by time
90 seconds
Power ON/OFF
Front panel switch & indicator
MONITORING
Signal Present
SP LED (Green) per channel
Cliping
CLIP LED (Red) per channel
Thermal
TH LED (Red)
Protect
PROT LED (Red)
Standby
STBY LED (Orange)
PHYSICAL
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
Installation options
19" rack format (1RU)
Dimensions
440 x 44 x 361 mm / 17.32 x 1.73 x 14.21 in. (WxHxD)
Weight
6.5 kg / 14.43 lb
