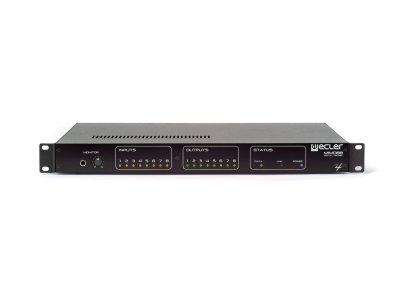

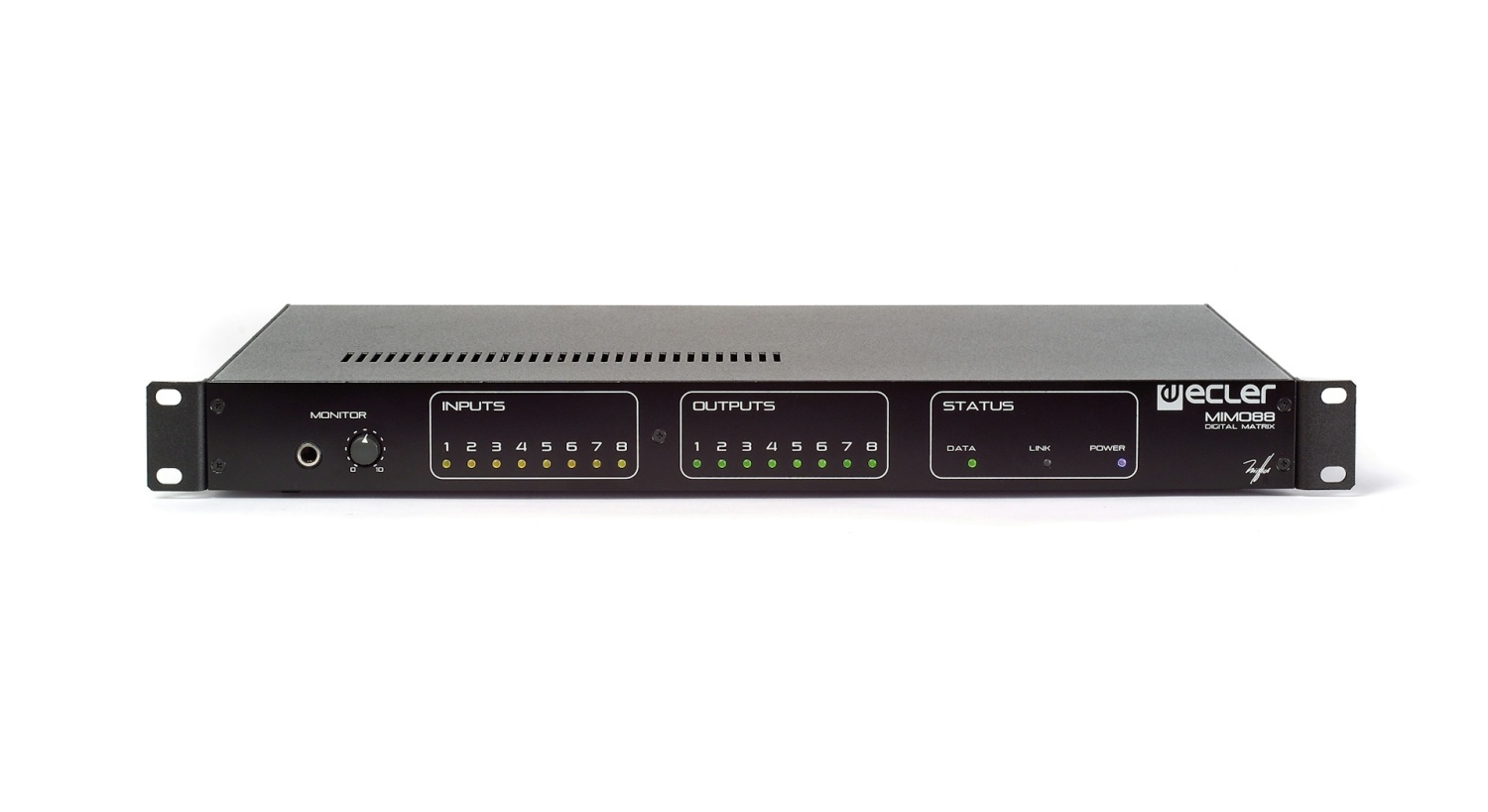

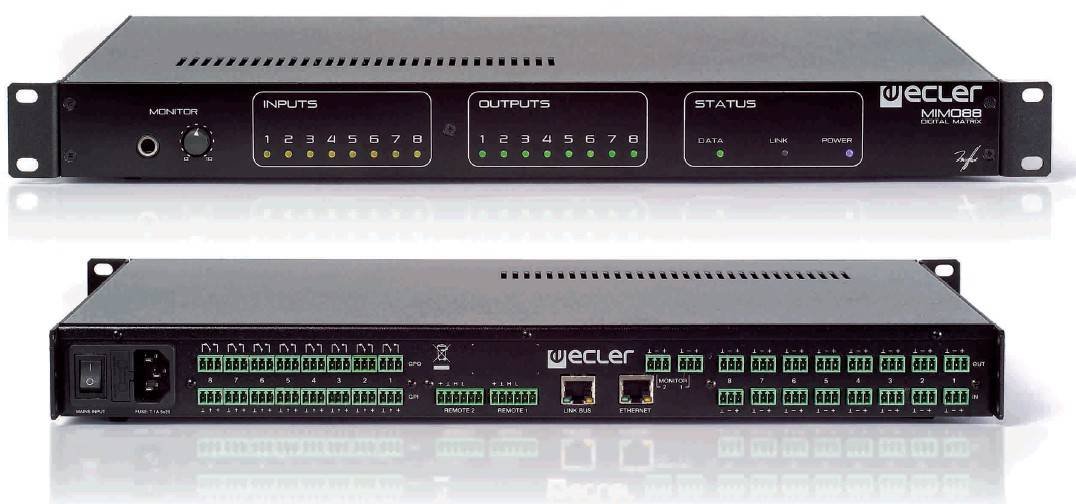

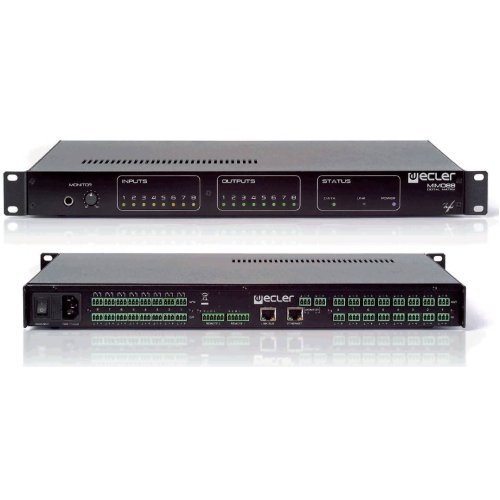

Ecler MIMO88 Matrycowy cyfrowy mikser instalacyjny
Matrycowy cyfrowy mikser instalacyjny z 8 wejściami i 8 wyjściami, w pełni programowalny z
możliwością podłączenia do drugiej jednostki (16x16), crossowanie pomiędzy dowolnym wejściem i wyjściem. Zarządzanie za pośrednictwem Ethernetu przy pomocy oprogramowania EclerNetManager, integracja z systemami Crestron, AMX, Extron,8 portów GPI, 8 portów GPO, DSP, wirtualne i fizyczne zarządzanie stacją przywoławczą, dziennik zdarzeń. Port RS232 do zdalnej kontroli.
DIGITAL ENGINE
Processor
2 x 32/64bit
AUDIO CONVERTERS
Sampling rate
48kHz
Resolution
24bit AKM
Latency
Frequency response
5Hz to 24kHz (-3dB)
Dynamic range
AD:110dB, DA: 115dB
ANALOGUE AUDIO INPUT PORTS
Number of input ports
8+8, Mic/Line
Connection type
Terminal block (symmetrical)
Input sensitivity
-50dBV to +10dBV in 0.5dB step
Input impedanc
Balanced, >4kΩ
Max input level
+27dBV = +30dBu
THD + Noise
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008%
CMRR
65dB typ.
Phantom power
+42VDC, 5mA max. software switched
ANALOGUE AUDIO OUTPUT PORTS
Number of output ports
8+8, Line
Connection type
Terminal block (symmetrical)
Max output level
+18dBV = +21dBu
Crosstalk
Better than 90dB (100dB typ.)
ANALOGUE MONITOR PORTS
Number of monitor output ports
2
Connection type
Terminal block (symmetrical)
Headphones
Jack 1/4 (>200mW/200Ω)
CONNECTIVITY
Ethernet
1 RJ-45, Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m
Serial port
RS-232
Programing and control
EclerNet manager (software), TPNET (UDP), UCP control panels
REMOTE CONTROL CONNECTIONS
Digital remote controls
Expansion LINK BUS (16x16 ch.): Proprietary over CAT5, Xover cable up to 100m.
Remote Bus: 2, over twisted pairs; up to 1km (see specific specs.)
GPIs
8, from 0 to 10VDC or TTL level
GPOs
8, 3 poles isolated relay; 1A, 48VDC max
REAL-TIME CLOCK
Retention time
1 month aprox. (ambient temperature dependant)
Accuracy
±1 minute / year
ELECTRICAL
Secondary power supply
+12VDC, 1.2A. max. (short circuit protected)
AC mains requirement
90-264VAC @ 47-63Hz
AC mains connector
IEC mains socket connector
Power consumption
45VA
PHYSICAL
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
Installation options
19" rack format (1RU)
Optional accessories
WPa series control panels, WPNETTOUCH digital panel, eMPAGE
Dimensions
482.6 x 44 x 266.5 mm / 19 x 1.73 x 10.5 in. (WxHxD)
Weight
3.5 kg / 7.72 lb
Shipping dimensions
590 x 70 x 380 mm / 23.23 x 2.76 x 14.96 in. (WxHxD)
Shipping weight
4.8 kg / 10.58 lb
