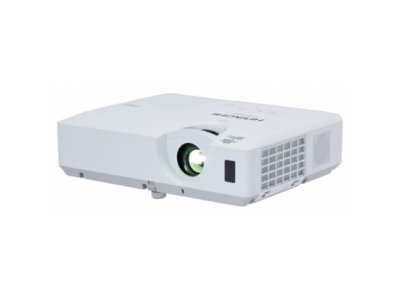

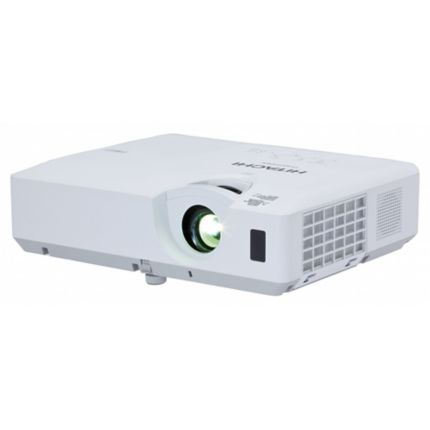

Projektor Hitachi CP-WX3542WN
Hitachi CP-WX3542WN to projektor dla mobilnych profesjonalistów. Projektor o zwartej i lekkiej konstrukcji zapewnia doskonałe obrazy o wysokim kontraście. Dzięki funkcjom sieci bezprzewodowych i łatwości obsługi użytkownicy mogą tworzyć własne prezentacje w ciągu kilku sekund. Dzięki możliwości odczytu z urządzeń USB lub innego urządzenia pamięci masowej można wyświetlać obrazy bez podłączania projektora do komputera.
Charakterystyczne cechy
Jasność 3700 ANSI lumenów
Współczynnik kontrastu 10 000: 1
Wydłużenie żywotności lampy do 10.000 godzin (w przybliżeniu) (w trybie Eco2)
Pełny zestaw wejść / wyjść, w tym 2 HDMI (jeden z nich MHL / HDMI)
Prezentacja bez komputera z pendrivem
Podłączanie do komputera za pomocą portu USB (ekran USB)
Filtr hybrydowy pozwala pracować bez czyszczenia przez długi czas (5000 godzin)
Korekta pionowych i poziomych zniekształceń trapezowych
Funkcja klonowania: kopiowanie danych konfiguracyjnych z jednego projektora do drugiego tego samego modelu za pomocą pamięci USB
- Optional Accessories
- Replacement Lamp
DT01481
- USB Wireless Adapter
USB-WL-11N
- Remote Controller
HL03031
- Warranty
- Warranty
3 years Projector / 6 month Lamp
- Miscellaneous
- Miscellaneous
Indicator lights (lamp, temp, power), Ceiling mount image, Rear projection image, Serial number label on side, MAC address label on side, MAC PC support
- Certification
- Certification
UL60950-1/CUL, FCC PART 15 SUBPART B CLASS B, CE MARKING: EN61000-3-2, EN61000-3-3, EN55022 (CLASS B), EN55024 (EMC DIRECTIVE), EN60950-1 (LOW VOLTAGE DIRECTIIVE), WEEE, ROHS, ERP (LOT 6) COMPLIANT, GS MARK, C-TICK CLASS B (STANDARD FOR AUSTRALIA/NEW ZEALAND.)
- Accessories Supplied
- Accessories Supplied
Power cable, computer cable, remote control with batteries, lens cover and cap, adapter cover (for USB Wireless Adapter), Security label, user's manual CD, user's manual book, application CD
- Physical
- Dimensions (W X H X D)
320 x 85 x 245mm (excluding feet and extrusions)
- Weight
3.0Kg
- Noise Level
37dB (Normal Mode)/32 dB (ECO1 mode), 29dB (ECO2 mode)
- Air Filter
Unwoven fabric, replacement cycle: 5000hr (varies according to usage environment)
- Power
- Power Supply
100-120V/220-240V, auto switching
- Power Consumption/Standby
310W/<0.5W (AC 220-240V)
- Connections
- Digital Input
HDMI (HDCP compliant) x 2
- Computer Input
Mini-D-Sub 15-pin connector x 2
- Monitor Output
Mini-D-Sub 15-pin connector x 1
- Video Input
RCA connector x 1
- Audio Output
3.5mm stereo mini connector x 1
- USB Type A
USB Type A x 2 (PC less) Presentation or Wireless adaptor
- USB Type B
USB type B x 1 (USB display, or USB mouse control)
- Wired Network
1 x RJ-45
- Wireless Network
IEEE801.11 b/g/n ready (optional USB wireless adapter required)
- Control
1 x 9-pin D-sub for RS-232C control
- Features
- Basic Functions
Freeze, Magnifying, Blank, Auto adjustment, Search, Page Up & Down (for USB mouse function), Auto signal search, Auto eco mode
- Picture Adjustments
Aspect selection (video, data, HDMI), Equalizing Digital Gamma Correction, Equalizing Colour temperature adjustment, 2-3 pull down for NTSC, Mirror reverse image, up-side down image, Progressive Scan, Noise Reduction, Overscan
- Digital Keystone Correction
Horizontal & Vertical ± 30 degrees
- Advanced Features
Accentualizer, HDCR, audio pass through, cloning, auto signal search, perfect fit, PC less presentation, ECO -1, ECO -2, Myscreen, My memory, My button, My text, My source, picture modes (normal, cinema, dynamic, blackboard, whiteboard, greenboard, photo), daytime mode, input source naming (English), resolution setting, template, Closed Caption (for NTSC & component 480i only), audio pass through, framelock, audio ports assign, cloning, drawing function (optional wireless pen tablet TB-1 is necessary), eco mode (normal, eco intelligent eco, saver), iOS Connectivity, ImageCare ™
- Outward
Easy lamp replace from top, Easy access air filter
- Power On & Off
Direct on, Auto off
- Security Systems
Pin Security Lock, Myscreen Password Lock, Transition Detector, My Text Password lock, key lock (key pad, remote control)
- Network
Project monitoring (Wired LAN), control from a remote location (Wired LAN), E-mail alerts (Wired LAN), mirroring the PC Screen (uses LiveViewer software) infrastrcture mode (wireless LAN), Simple Access Point (SoftAP), SNMP Management (SNMP)
- OSD Languages
English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Arabic, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil), Indonesian, Vietnamese”
- Compatibility
- Computer Compatibility
IBM Compatible VGA, SVGA, XGA, WXGA WXGA+/SXGA/SXGA+/UXGA (compressed) MAC16"
- Composite/S-Video
NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43
- Component Video
525i(480i), 525p(480p), 625i(575i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)
- HDMI Video
Video signals: 525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60),750p(720p@50/60), 1125p(1080p@50/60)"
- Plug & Play
DDC2B (VESA)
- Optical
- Resolution
WXGA (1280 x 800)
- Brightness
3700 ANSI Lumens (Normal) / 3034 ANSI Lumens (Eco1) / 2479 ANSI Lumens (Eco2)
- LCD Panel
0.59" aspect ratio 16:10
- Contrast Ratio
10,000:1
- Lens
Manual Focus, Manual Zoom x 1.2
- Lamp Wattage
225W
- Lamp Life
5000 hours (Normal Mode) / 8000 hours (Eco Mode 1) / 10,000 hours (Eco Mode 2)
- Diagonal Display Size
30~300" (76~762cm)
- Number Of Colours
16.7 million colours
- Keystone
Fixed 13:1 upward shift, Normal at + 10.3° ~ 8.6° projection angle
- Focus Distance
0.9 ~ 9.6 m (WIDE), 1.1~11.6 m (TELE)
- Distance To Width Ratio
1.5 (Wide), 1.8 (Tele)
