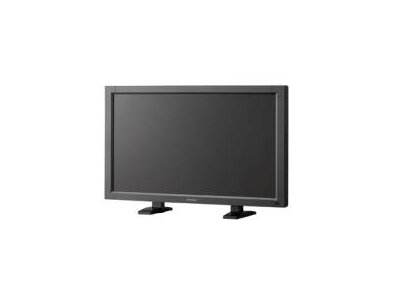

Monitor Mitsubishi 42" WXGA-Wide LCD Display LDT421V2
LDT421V2
With excellent contrast and brightness, as well as a rapid response time, the LDT421V2 Widescreen LCD Display provides amazing video and data imagery in individual or tiled (video wall) configurations.
These screens are ideal for digital signage, message boards, video conferencing, or retail kiosks. Enhance your facilities with welcome messages, company promotions, human resources information, or data displays. Universities and other educational institutions can use the LDT421V2 in classrooms, lecture halls, media centres, student service centres, dining commons, and building lobbies.
Key Features:
- Rapid 9 ms Response Time – Enjoy clear, fast moving pictures free of "ghosting".
- Screen Saving Function – Four separate options (Gamma, Cooling Fan, Brightness and Motion) provide increased protection against image retention and image persistence.
- Power Save - Detects when an input signal is no longer active and will automatically switch the monitor to a Power Save state to help prolong the life of the LCD panel.
- High Contrast Ratio (1600:1) - For incredible visual detail, in both data and video display.
- Scheduling - Display during the hours you want, with flexible control over the various inputs.
- Tile Matrix - Create data/video walls with multiple LCD displays easily thanks to the simple OSD setup options.
- Picture-in-Picture - Display two active inputs simultaneously (PC Mode only).
- Panel Lock Out - Prevent unauthorized tampering of panel controls.
- VESA Compliant - Allows for use with VESA standard mounting arms or brackets.
- Optional speakers available
- Three year limited warranty
Features
- Commercial grade display ideal for information displays, public displays and digital signage
- Rapid 9 ms Response Time
- Screen Saving Function
- Power Save
- High Contrast Ratio (1600:1)
- Power/ Input Scheduling
- Tile Matrix - Create data/video walls with multiple LCD displays easily thanks to the simple OSD setup options.
Specification Overview
Model | LDT421V2 |
---|---|
Display Characteristics | |
Display Type |
42" WXGA-Wide LCD Display |
Viewable Area |
42" (106.7 cm) diagonal |
Native (Maximum) Resolution |
1366 x 768 pixels |
Aspect Ratio |
16:9 |
Colour Depth |
16.7 million colours |
Contrast Ratio |
1600:1 (typical) |
Brightness |
500 cd/m² (typical) |
Response Time |
9 ms (Grey to Grey), 20 ms (Tr + Tf) |
Viewing Angle (Left/Right, Up/Down) |
±89°, ±89° (typical) |
Dot Pitch |
0.681 mm (H) x 0.681 mm (V) |
Input Terminals | |
PC |
15 pin D-sub x 1; BNC x 5; HDMI x 1 |
Video |
Component (BNC) x 1; Composite x 2 (BNC & RCA); S-Video x 1 |
Audio |
RCA L/R x 2; Stereo mini jack x 1 |
Control Input |
9 pin Mini D-sub (RS232C) |
Output Terminals | |
PC/Video |
15 pin D-sub x 1; Composite x 1 |
Audio |
RCA L/R x 1, External Speaker connections |
Control Output |
9 pin Mini D-sub (RS232C) |
Frequency Range | |
Horizontal Frequency |
15.625/15.743, 31.5KHz - 91.1KHz (Analogue/Digital) |
Vertical Frequency |
50/58 Hz - 85 Hz (Analogue/Digital) |
Video Compatibility | |
Video |
NTSC / PAL |
HDTV |
480i, 480p, 720p, 1080i |
Physical Characteristics | |
Operating Voltage |
Single phase, 50/60Hz, 100VAC to 240VAC ±10% |
Dimensions (W x H x D) |
1022 mm x 643.3 mm x 386.1 mm (incl. stand) |
Weight |
27.4kg (incl. stand), 26.0 (excl. stand) |
Operating Temperature |
5°C ~ 40°C |
Operating Air Humidity |
20% - 80% |
Regulatory Certification | |
Safety |
AS/NZS 60950.1:2001 |
EMI/EMC |
AS/NZS CISPR22:2004 (C-Tick) |
Accessories | |
Supplied |
Power Cord, VGA Cable, User Manual (English, German, Spanish, French, Italian, Dutch, Russian), Remote Control, Batteries x 2, Clamper x 2, Screws for Clamper, Main Switch cover x 1, Removable Foot Mounts x 2, Screws (M5 x 40) for foot mounts |
Optional | Speakers (7 W + 7 W) |
Backed by a limited three year parts and labour warranty and nationwide service centres.
Microsoft and Windows are registered trademarks of Microsoft Corporation
Apple and Macintosh are registered trademarks of Apple Computer, Inc.
All other trademarks remain the property of their respective owners
* Specifications are subject to change without notice
