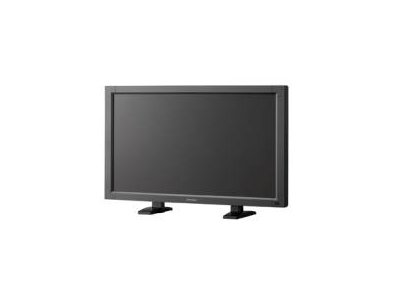

Monitor Mitsubishi 46" Widescreen LCD Display LDT461V2
LDT461V2
The LDT461V2 46" LCD Information display brings outstanding visual quality for commercial or public signage applications in 1080P True HD resolution.
The panels used in the LDT461V2 are professional grade quality, and are designed for bright environments and extended use. For long-term performance, it has features such as power scheduling, screen saver functionality and built-in cooling fans with heat monitoring, which all combine to extend the life of the LCD panel.
For amazing picture quality, the LDT461V2 boasts an incredible 4000:1 contrast ratio, 450 cd/m2 brightness, and Full HD 1080P resolution. The LDT461V2's fast response time brings rich, vibrant and realistic images to any application. It also boasts wide viewing angles of 178 degrees horizontally & vertically.
This model can also be installed in either individual or tiled (video wall) configurations to build amazing entertainment and digital signage displays, and is ideal for message boards, video conferencing, classroom presentations, retail kiosks, gaming displays, or to enhance your facilities with welcome messages, company promotions and human resources information.
High Contrast Ratio of 4000:1 - Ensures excellent colour reproduction in all displayed images.
Rapid 8ms Response Time – Enjoy clear fast moving pictures free of “ghosting”.
Screen Saving Function – Four separate options (Gamma, Cooling Fan, Brightness and Motion) provide increased protection against image retention and image persistence.
Power Save - Detects when an input signal is no longer active and will automatically switch the display to a Power Save state to help prolong the life of the LCD panel.
Dual HDMI Inputs - For excellent connectivity options with HD video sources such as digital set top boxes or Blu Ray players
Power Scheduling - Display during the hours you want, with flexible control over the various inputs.
Tile Matrix - Create data/video walls with multiple LCD displays easily thanks to the simple OSD setup options.
Heat Status Monitor- The inside temperature of the display can be checked using the OSD menu and flashing front panel.
Picture-in-Picture - Display two active inputs simultaneously. (only PC + AV)
Panel Lock Out - Prevents unauthorised tampering of panel controls.
VESA Compliant - Allows for use with VESA standard mounting arms or brackets.
Optional speakers and stand available
Three year limited warranty
Features
- Commercial grade LCD panel ideal for information displays, public displays and digital signage
- Superb 4000:1 Contrast Ratio
- Rapid 8ms Response Time
- Screen Saving Function
- Power Save
- High Contrast Ratio (1500:1)
- Dual HDMI Inputs
- Heat Status Monitor
- Power/ Input Scheduling
- Tile Matrix - Create data/video walls with multiple LCD displays easily thanks to the simple OSD setup options.
- Optional Speaker available
Specification Overview
| Model | LDT461V2 |
|---|---|
| Display Characteristics | |
|
Display Type |
46" Widescreen LCD Display |
|
Viewable Area |
46" (116.8 cm) diagonal |
|
Native (Maximum) Resolution |
1920 x 1080 pixels |
|
Aspect Ratio |
16:9 |
|
Colour Depth |
16.7 million colours |
|
Contrast Ratio |
4000:1 (typical) |
|
Brightness |
450 cd/m² (typical) |
|
Response Time |
8 ms (Grey to Grey) |
|
Viewing Angle (Left/Right, Up/Down) |
±89°, ±89° (typical) |
|
Dot Pitch |
0.530 mm (H) x 0.530 mm (V) |
| Input Terminals | |
|
PC |
15 pin D-sub x 1; BNC x 5; HDMI x 2 |
|
Video |
Component (BNC) x 1; Composite x 2 (BNC & RCA); S-Video x 1 |
|
Audio |
RCA L/R x 2; Stereo mini jack x 1 |
|
Control Input |
9 pin Mini D-sub (RS232C) |
| Output Terminals | |
|
PC/Video |
15 pin D-sub x 1; Composite x 1 |
|
Audio |
RCA L/R x 1, External Speaker connections |
|
Control Output |
9 pin Mini D-sub (RS232C) |
| Frequency Range | |
|
Horizontal Frequency |
15.625/15.743, 31.5KHz - 91.1KHz (Analogue/Digital) |
|
Vertical Frequency |
50/58 Hz - 85 Hz (Analogue/Digital) |
| Video Compatibility | |
|
Video |
NTSC, PAL, SECAM, 4.43NTSC, PAL60 |
|
HDTV |
480i, 480p, 720p, 1080i, 1080P |
| Physical Characteristics | |
|
Operating Voltage |
Single phase, 50/60Hz, 100VAC to 240VAC ±10% |
|
Dimensions (W x H x D) |
1122 mm x 663 mm x 136.3 mm (excl. stand) |
|
Weight |
28 kg (excl. stand) |
|
Operating Temperature |
5°C ~ 40°C |
|
Operating Air Humidity |
20% - 80% |
| Regulatory Certification | |
|
Safety |
AS/NZS 60950.1:2001 |
|
EMI/EMC |
AS/NZS CISPR22:2004 (C-Tick) |
| Accessories | |
|
Supplied |
Power Cord, VGA Cable, User Manual (English, German, Spanish, French, Italian, Dutch, Russian), Remote Control, Batteries x 2, Clamper x 2, Screws for Clamper, Main Switch cover x 1 |
| Optional | Speakers (7 W + 7 W), Removable Foot Mounts x 2 |
Backed by a limited three year parts and labour warranty and nationwide service centres.
Microsoft and Windows are registered trademarks of Microsoft Corporation
Apple and Macintosh are registered trademarks of Apple Computer, Inc.
All other trademarks remain the property of their respective owners
* Specifications are subject to change without notice
