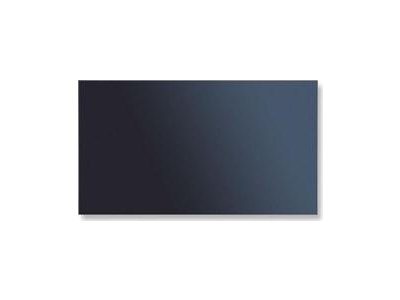

Monitor wielkoformatowy Nec 46" Large-Screen Display MultiSync X461UNV
Function
An ultra narrow bezel enables a virtually seamless video wall
The X461UNV features ultra-narrow bezel of only 6.7 mm (4.3 mm on the left and top, and 2.4 mm on the right and bottom). The joints between the displays are almost unnoticeable giving the feeling of a seamless panel that makes possible more natural multi-screen display.
| Left/Top | Right/Bottom | Multi-screen configuration |
|
|---|---|---|---|
| Bezel Width | 4.3mm | 2.4mm | 6.7mm |
| Area not displayed | 4.6mm | 2.7mm | 7.3mm |
Max. 10 x 10 Multi Screen Configurations
Maximum 10 horizontal & vertical multi screen configuration available using tile matrix function enables 460" video wall. Multi screen configurations can be transported and installed to existing buildings easier than compared to super 100" large screen displays.
AMBIENT Mode Automatically Adjust Brightness
Functions newly loaded for automatically controlling display brightness to the perfect brightness recognizing changes to surrounding brightness by connecting the optional sensor unit to this device. Power usage at eco-standby reduced to maximum 0.5W. No excess power used contributing to global environment preservation.
Multi Screen Color Alignment Compatibility at Shipment
X461UNV is shipped after brightness and color temperature adjusted separately*. This pre-adjusted shipment realizes easy installation and good image quality of video walls.
* Set within Brightness 500cd/m2, Color Temperature 10000k range.
Calibration Function for Multi Screen Aging
Uses dedicated calibration software and commercially available color sensor when color differences occur with each display due to aging changes, simplifying color alignment.
Color Alignment Settings
3 Steps for Calibration
- Launches dedicated calibration software to measure monitor brightness and color temperature with color sensor for each LCD.
- Sets target brightness/color temperature/gamma values after measurement.
- Executes batch calibration.
Control using network connection with LAN Control
Simplifies central control of multiple displays
Supports remote control through multi connection using RS-232C and LAN control using connection via network. Display operations and setting can be changed from 1 host computer.
- Power ON/OFF
- Switch Display Input
- Adjust Contrast/Brightness
- Check Internal Temperature
- Check Input Signal Status
- Change Screen Size
"Self Diagnostics Function" for Quick, Easy Problem Finding
Failure location detection/clarification and fast recovery response with 1 or many devices connected.
* Effective with RS-232C and LAN control.
- Backlight Lighting Status
- Power Monitoring
- Temperature Increase in Main Unit
* Remote control and "Self Diagnostics Function" require separate control application development.
Rodzaj Panelu
| S-PVA TFT | |
| Użyteczna powierzchnia [cale/cm] | 1,018.4 x 572.5 |
| Wielkość ekranu [cale/cm] | 46 / 117 |
| Proporcje obrazu | 16:9 |
| Rozmiar plamki [mm] | 0.746 x 0.746 |
| Jasność [cd/m²] | 450 |
| Kontrast | 3000:1 |
| Kąty widzenia [°] | 178 poziomo / 178 pionowo (CR 10:1) |
| Czas reakcji [ms] | 8 (grey-to-grey); 16 (6 white / black; 10 black / white); 8 (tr - tf) |
| Ilość kolorów [Mln] | 16.77 |
| Częstotliwość pozioma [kHz] | 31,5 - 91,1 (cyfrowa i analogowa) |
| Częstotliwość pionowa [Hz] | 50 - 85 |
| Rozdzielczość natywna | 1366 x 768 przy 60 Hz |
| Obsługiwane rozdzielczości | 1024 x 768; 1280 x 1024; 1280 x 768; 1366 x 768; 1440 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 800 x 600; 832 x 624 |
| Rozdzielczość optymalna | 1360 x 768 przy 60 Hz |
| Wejścia wideo | Analogowe: 1 x D-sub 15 pin; 1 x S-Video; 5 x BNC, Component, Composite (via BNC and Cinch) Cyfrowe: 1 x DVI-D (z HDCP); 1 x HDMI 1.3; 1 x DisplayPort |
| Wyjścia wideo | Analogowe: 5 x BNC, Composite (via BNC) |
| Wejścia audio | (2 x Cinch (RCA); 1 x Head-jack 3.5 mm |
| Wyjścia audio | 1 x Cinch (RCA) |
| Funkcje pilota | RS-232C (9-pin D-sub) Input and Output; D-sub 15 and DVI-D (DDC/CI); Remote Control IR |
| Obsługiwane standardy TV (bez tunera) | NTSC; PAL; SECAM |
| Tryby wideo (bez tunera) | 480i; 480p; 576i; 576p; 2 x720p (50 and 60 Hz); 2 x 1080i (50 and 60 Hz); 2 x 1080p (50 and 60 Hz) |
| Zarządzanie energią | VESA DPMS |
| Zasilanie | 100-120 V/220-240 V; 3.6 A/1.45 A; zintegrowany zasilacz |
| Temperatura otoczenia podczes pracy [°C] | +5 to +40 |
| Wilgotność otoczenia podczas pracy [%] | 20 to 80 |
| Wymiary [mm] | Z nóżkami: 1 025,7 x 623,6 x 351; Bez nóżek: 1 025,7 x 579,8 x 128,1 |
| Szerokość ramki [mm] | 2.4 bottom/right; (Odległość między dwoma sąsiednimi ekranami:2.7 w dół/w prawo; 4.6 w górę/w lewo) |
| Mocowanie VESA [mm] | 300 x 300 (FDMI); 4 otwory |
| Szerokość ramki [mm] | 4.3 top/left |
| Slot opcji | Built-in PC; CAT 5 receiver; DVI daisy chain board; HD-SDI board; Media Player |
| Nóżki | Opcjonalnie |
| Wersje kolorystyczne | Czarna ramka ekranu, czarna obudowa |
| Bezpieczeństwo i ergonomia | CE; TÜV GS; C-tick; Energy Star 5.0; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI; RoHS |
| Plug and Play | VESA DDC2Bi |
| Głośniki | Amplifier: 2x 15 Watt; no optional speakers |
| Zawartość opakowania | Monitor; Kabel VGA; Kabel zasilający; Płyta CD (Podręczniki użytkownika/Instrukcje) Kabel Sygnałowy: 3,5 mm jack |
| Gwarancja | 3 lata (w tym na podświetlenie ekranu) |
