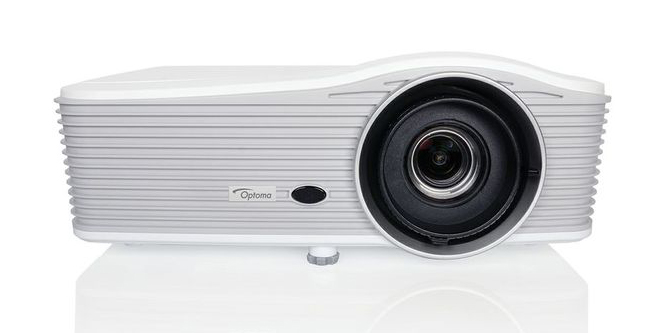

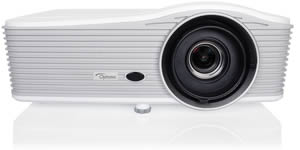

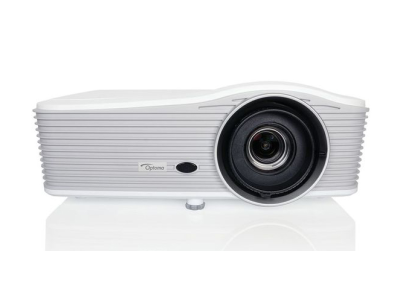

Projektor Optoma EH515T
Projektor Optoma EH515T
Potężny projektor
Ten projektor do dużych obiektów wyświetla obrazy w jakości Full HD dla bezkompromisowego poziomu szczegółów. Przeznaczony dla środowisk profesjonalnych, EH515T szczyci się jasnością 5 500 lumenów i wieloma opcjami łączenia cyfrowego dzięki dwóm wejściom HDMI, złączu DisplayPort i HDBaseT. Z myślą o bardziej złożonych instalacjach, projektor wyposażono w duży zakres zoomu, przesuw obiektywu oraz wbudowaną funkcję regulacji geometrii – idealną do nakładania obrazów (image stacking), dla nierównych ścian lub miejsc, w których zamontowanie projektora stwarza problemy i musi być zrealizowane pod kątem.
| Display Technology | Single 0.65” 1080p DLP® Technology by Texas Instruments |
| Native Resolution | 1080p 1920 x 1080 |
| Brightness1 (Bright Mode) | 5500 ANSI Lumens |
| Contrast | 10,000:1 |
| Noise Level (Eco mode) | 28 |
| Weight (kg) | 5.9 |
| I/O Connectors | 1 x HDBaseT(RJ-45) 2 x HDMI (1.4a 3D support) + MHL, DisplayPort, 2 x VGA (YPbPr/RGB), S-Video, Composite, 3 x Audio In (RCA/3.5mm), Mic In, Audio Out 3.5mm, VGA Out, RS232, USB-A Power (1.5A), USB mouse/service, RJ45, 12V trigger, 3D-Sync, Wired remote |
| Computer Compatibility | UXGA, SXGA+, HD, WXGA, XGA, SVGA |
| Video Compatibility | PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p |
| Displayable Colours | 1.07 Billion |
| Projection Lens | F/2.5~3.39; f=17.63~31.36mm, 1.8x Manual Zoom |
| Throw Ratio 3 | 1.2~2.160:1, Offset: 105%~130% |
| Projection Screen Size | 27.2"~301.1 Diagonal 16:9 |
| Projection Distance | 1.3m to 8.0m |
| Zoom Type | 1.8x Manual |
| Aspect Ratio | 16:9 Native, 16:10/4:3 Compatible |
| Offset | 105% |
| Horizontal Scan Rate | 15.375~91.146 KHz |
| Vertical Scan Rate | 24~ 85 Hz (120Hz for 3D feature) |
| Lamp Type | 365W |
| Lamp Life2 Eco/Bright | 4000/3000 (hrs) |
| Keystone Correction | ± 30° Vertical ± 30° Horizontal |
| Dimensions (W x D x H) (mm) | 424 x 344 x 160 |
| Power Supply | 100-240V, 50-60Hz |
| Power Consumption | 425W Bright mode, 340W Eco mode, <0.5W Standby mode |
| Uniformity | 80% |
| Security | Kensington Lock, Password Protection |
| Standard Accessories | AC power cord, VGA cable, remote control, battery, quick start card, CD user manual |
| Optional Accessories | DLP® Link™ 3D glasses, wireless, ceiling mount |
| RoHS | Compliant |
| Lens Shift | Vertical: +25 Horizontal: +/-10% (constraints apply see user manual for details) |
| 3D Support | Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification. |
| 3D Compatibility | Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
| Speaker | 20 |
| 360’ Operation | Not supported |
| Portrait Mode | Not supported |
| Optional Wireless | Yes |
| Features | V/H Lens Shift, PC-Free / LAN presentation, Crestron RoomView®, PJ-Link |
1Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
2Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions
3 +/- 5% tolerance
