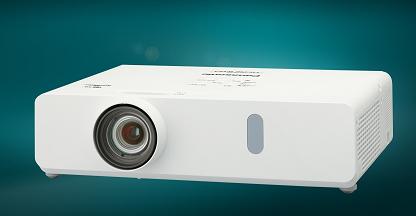

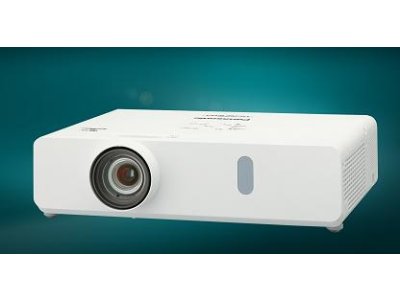

Projektor Panasonic PT-VX425N
The Panasonic compact PT-VW350 series is the industry’s lightest and smallest 4000 lumen class LCD projector, with capability for wireless mirroring of PC and Android™ devices.
The portable projectors of this series feature an industry-beating 10,000:1 contrast ratio and, thanks to an innovative cooling system, they are the lightest in their class at just 3.3 kg and 3.4 kg for network models.
As well as superior brightness and contrast over legacy models, lamp replacement has also been extended to 5,000 hours (7,000 hours in Eco Mode), resulting in lower total cost of ownership.
Networked models will support wireless mirroring of almost any media including video, websites, and documents via Intel® Pro WiDi. This new wireless mirroring supports simple connection, improved stability, better security and faster response times.
Together with enhanced Miracast connection for Android devices and proprietary apps for iOS, Android™, and PC, these wireless solutions allow free collaboration and communication in the office and classroom.
All models include an HDMI input, monitor out, and two D-sub inputs as well as an inbuilt 10W speaker. Network variants allow the addition of a memory viewer for easy media display via a USB memory stick.
The four model series comprises of the PT-VW355N (WXGA, 4,000 lm) and PT-VX425N (XGA, 4,500 lm) and two non-network variants, the PT-VW350 (WXGA, 4,000 lm) and PT-VX420 (XGA, 4,500 lm), both with similar base specification
- See more at: http://business.panasonic.co.uk/visual-system/Portable-Projectors/PT-VX425N#sthash.22gW1PPu.dpufPT-VX425N
Najlepsze na świecie przenośne projektory Panasonic
Kompaktowe urządzenia z serii PT-VW350 są najlżejszymi i najmniejszymi na świecie projektorami LCD klasy 4000 lumenów z możliwością bezprzewodowego przesyłania treści z komputerów PC oraz urządzeń z systemem Android™.
Przenośne projektory z tej serii odznaczają się rekordowo wysokim współczynnikiem kontrastu 10 000:1. Dzięki zastosowaniu innowacyjnego systemu chłodzenia są także najlżejsze w swojej klasie; modele ważą zaledwie 3,3 kg, a sieciowe 3,4 kg.
Poza doskonałą charakterystyką jasności i kontrastu w porównaniu z poprzednimi modelami, średni cykl wymiany lampy nowych projektorów wydłużono do 5000 godzin (7000 godzin w trybie Eco), co oznacza niższe koszty eksploatacji tych urządzeń.
Modele sieciowe przystosowane są do bezprzewodowej transmisji praktycznie dowolnych treści, np. filmów, stron internetowych i dokumentów za pomocą technologii Intel® Pro WiDi. Nowa technologia bezprzewodowej transmisji danych to łatwe nawiązywanie połączenia, poprawa jego stabilności i bezpieczeństwa oraz krótsze czasy reakcji.
W połączeniu z zaawansowaną funkcją Miracast, która pozwala łączyć się z urządzeniami pracującymi pod kontrolą systemu Android, komercyjnymi aplikacjami dla systemów iOS i Android™ oraz komputerami PC, rozwiązania bezprzewodowe umożliwiają swobodną współpracę i komunikację na spotkaniach biznesowych czy zajęciach.
Wszystkie modele wyposażono w wejście HDMI, wyjście monitorowe i dwa wejścia D-Sub oraz wbudowany głośnik 10-watowy. Dzięki funkcji Memory Viewer modele sieciowe umożliwiają łatwe wyświetlanie treści zapisanych na pamięci USB.
Seria składa się z czterech modeli — dwóch wariantów sieciowych: PT-VW355N (WXGA, 4000 lm) i PT-VX425N (XGA, 4500 lm) oraz dwóch wariantów jednostanowiskowych: PT-VW350 (WXGA, 4000 lm) i PT-VX420 (XGA, 4500 lm), oba z nich o podobnej charakterystyce.
| Model | PT-VX425N | PT-VX420 | |
|---|---|---|---|
| Power supply | 100-240 V AC, 50/60 Hz | ||
| Power consumption | 100-120 V: 310 W, 220-240 V AC: 290 W (0.4 W when Standby mode set to ECO*1, 5 W when Standby mode set to Network, 14 W when Standby mode set to Normal) |
100-120 V: 310 W, 220-240 V AC: 290 W (0.4 W when Standby mode set to ECO*1, 1.3 W when Standby mode set to Network, 9 W when Standby mode set to Normal) |
|
| LCD panel | Panel size | 16.0 mm (0.63 in) diagonal (4:3 aspect ratio) | |
| Display method | Transparent LCD panel (x 3, R/G/B) | ||
| Pixels | 786,432 (1024 x 768) pixels | ||
| Lens | Manual zoom (1.6x) (throw ratio: 1.2-1.9:1), manual focus, F 1.60-2.12, f 15.30-24.64 mm | ||
| Screen size (diagonal) | 0.76-7.62 m (30-300 in), 4:3 aspect ratio | ||
| Resolution | 1,024 x 768 pixels*3 | ||
| Brightness*2 | 4,500 lm (input signals: PC, lamp power: Normal, picture mode: Dynamic) | ||
| Lamp | 230 W x 1 lamp (240 W driven) | ||
| Lamp replacement cycle |
5,000 h/7,000 h (lamp power: Normal/Eco) | ||
| Center-to-corner uniformity*2 | 85 % | ||
| Contrast*2 | 10,000:1 (Full On/Off) (input signals: PC, lamp power: Normal, picture mode: Dynamic, IRIS: On) | ||
| Scanning frequency |
HDMI IN | fH: 15-80 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower | |
| RGB | fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 162 MHz or lower (Signals exceeding the dot clock rate of 140 MHz are downsampled.) |
||
| YPBPR (YCBCR) |
fH: 15.75 kHz, fV: 59.94 Hz [525i (480i)]
fH: 31.50 kHz, fV: 60 Hz [525p (480p)] fH: 45.00 kHz, fV: 60 Hz [750p (720)/60p] fH: 33.75 kHz, fV: 60 Hz [1125 (1080)/60i] fH: 28.13 kHz, fV: 25 Hz [1125 (1080)/25p] fH: 27.00 kHz, fV: 48 Hz [1125 (1080)/24sF] fH: 67.50 kHz, fV: 60 Hz [1125 (1080)/60p] fH: 15.63 kHz, fV: 50 Hz [625i (576i)]
fH: 31.25 kHz, fV: 50 Hz [625p (576p)] fH: 37.50 kHz, fV: 50 Hz [750p (720)/50p] fH: 28.13 kHz, fV: 50 Hz [1125 (1080)/50i] fH: 27.00 kHz, fV: 24 Hz [1125 (1080)/24p] fH: 33.75 kHz, fV: 30 Hz [1125 (1080)/30p] fH: 56.25 kHz, fV: 50 Hz [1125 (1080)/50p] |
||
| Video/S-Video | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/SECAM/PAL-N] |
||
| Optical axis shift | 9:1 (fixed) | ||
| Keystone correction range |
Vertical | ±40 ° (±30 ° when using Easy Setting) (maximum value of XGA input) |
±40 ° (±30 ° when using AUTO) (maximum value of XGA input) |
| Horizontal | ±30 ° (±20 ° when using Easy Setting) (maximum value of XGA input) |
±30 ° (maximum value of XGA input) | |
| Installation | Ceiling/floor, front/rear | ||
| Terminals | HDMI IN | HDMI 19-pin x 1 (compatible with HDCP, Deep Color) 480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/30p, 1080/25p, 1080/24p, 1080/24sF, VGA (640 x 480)-WUXGA (1,920 x 1,200), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
|
| COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1) | ||
| COMPUTER 2 IN / MONITOR OUT |
D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu) | ||
| VIDEO IN | Pin jack x 1 (Composite VIDEO) | ||
| S-VIDEO IN | Mini DIN 4-pin x 1 (S-VIDEO) | ||
| AUDIO IN 1 | M3 x 1 (L-R x 1) | ||
| AUDIO IN 2 (MIC IN) |
M3 x 1 (L-R x 1) for audio input or for microphone connection (variable) | ||
| AUDIO IN 3 | Pin jack x 2 (L, R x 1) | ||
| AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | ||
| LAN | RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™) | ||
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | ||
| USB-Type A | for Memory Viewer x 1 | - | |
| USB-Type B | for USB Display x 1 | - | |
| Built-in speaker | 4.0 cm (1-9/16 in ) round shape x 1, output power: 10.0 W (monaural) | ||
| Operation noise*2 | 37 dB (lamp power: Normal), 29 dB (lamp power: Eco) | ||
| Cabinet materials | Molded plastic (PC) | ||
| Dimensions (W x H x D) | 352 x 98*4 x 279.4*5 mm (13-27/32 x 3-27/32*4 x 11*5 in) | ||
| Weight*6 | Approx. 3.4 kg (7.5 lbs) | Approx. 3.3 kg (7.3 lbs) | |
| Operating temperature | 0-40 °C [32-104 °F] (less than 1,400 m [4,593 ft] above sea level, HIGH ALTITUDE MODE: OFF) | ||
| Operating humidity | 10-80 % (no condensation) | ||
| Wireless | Standard | 2.4 GHz: IEEE802.11b/g/n, 5.0 GHz: IEEE802.11a/n |
- |
| Infrastructure mode |
WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), 128 bit/64 bit WEP, WPA-EAP/WPA2-EAP (PEAP [MS-CHAPv2/GTC], EAP-FAST [MS-CHAPv2/GTC], EAP-TTLS [MD5/MS-CHAPv2])128 bit/64 bit |
- | |
| Supplied accessories | Power cord x 1*7, wireless remote control unit x 1, batteries (AAA/R03/LR03 type x 2), computer cable x 1, Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software, Wireless Manager ME 6.3) |
Power cord x 1*7, wireless remote control unit x 1, batteries (AAA/R03/LR03 type x 2), computer cable x 1, Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) |
|
- *1
- When Standby mode is set to Eco, network functions such as power on over the LAN network will not operate.
Also, only certain commands can be received for external control using the serial terminal. - *2
- Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
- *3
- Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.
- *4
- With legs retracted to minimum.
- *5
- Including protruding parts.
- *6
- Average value. May differ depending on the actual unit.
- *7
- Power cords available (x 2) for the UK and Asia only.
