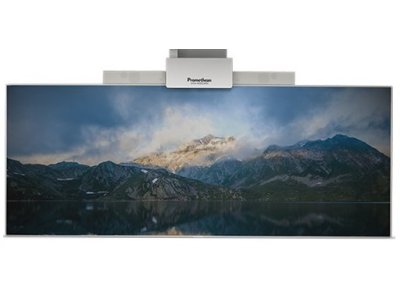

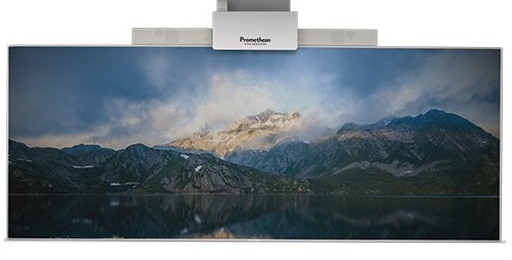

Tablica Interaktywna Promethean ActivWall 102” AW102
Tablica Interaktywna Promethean ActivWall 102” AW102
Multimedialna interaktywna technologia dotykowa w przystępnej cenie
Nowoczesna klasa może osiągnąć nowy poziom współpracy z technologią Laser Curtain. Precyzyjna interaktywność z wieloma dotykami i pisanie dry-erase.
ActivWall 102 " zapewnia niewiarygodną responsywność i precyzyjne wrażenia dotykowe.
Bezbłędny projekt dla interakcji od krawędzi do krawędzi
Zmaksymalizuj przestrzeń w klasie dzięki bezramkowemu, nowoczesnemu wzornictwu ActivWall. Nauczyciele i uczniowie mogą z łatwością pracować równolegle.
Oferując do 20 punktów dotykowych i 2 cyfrowe pisaki zapewnia doskonałe interaktywne doświadczenie, w którym nauczyciele i uczniowie mogą przenosić przedmioty, jednocześnie używając pióra do pisania lub rysowania.
Wciągające lekcje
Twórz i dostarczaj interaktywne lekcje dzięki nagradzanemu oprogramowaniu ClassFlow i ActivInspire. Licencja ActivInspire Professional Edition jest wliczona w zakup.
3-w-1 uniwersalna powierzchnia
Zapewnienie nauczycielom i uczniom powierzchni 3 w 1 zapewniającej optymalne oglądanie, interakcję z wieloma użytkownikami i pisanie.
Potężny, wysokiej jakości dźwięk
Obejmuje wbudowane głośniki, które zapewniają wciągający dźwięk i moc wypełniającą pomieszczenie, aby wzmocnić multimedialne lekcje.
Kluczowe cechy:
- Przekątna 102 cali.
- Panoramiczna interaktywna powierzchnia
- Technologia Laser Curtain Technology zapewnia precyzyjne możliwości dotykowe
- Twórz interaktywne lekcje za pomocą nagradzanego oprogramowania ClassFlow i ActivInspire.
- Bezramowy, nowoczesny design
- 3-w-1 uniwersalna powierzchnia
- 20 punktów dotyku
- Wbudowane głośniki zapewniają wciągający dźwięk i moc wypełniający pomieszczenie
- W zestawie 2 cyfrowe pióra
Dane techniczne:
DISPLAY ActivWall 102"
System Size 2,313mm x 1,796mm ±40mm (91” x 70.7” ±1.6”)
Minimum Wall Width (system + clearance distance for laser) 2,313mm + 300mm (91.1” + 11.8”)
Recommended Minimum Ceiling Height and Distance Above Floor 600mm (23.6”) above floor + 1796 mm (70.7”) product height for a total ceiling height of 2,396mm (94.3”)
Network Wi-Fi and/or Ethernet
DRY-ERASE / INTERACTIVE SURFACE
Description Large dry-erase / interactive surface
Size (w x h) 2,313mm x 1,395mm (91.1” x 55”)
Viewable Surface (w x h) 2,258mm x 1,270mm (88.9” x 50”)
Aspect Ratio 16:9
Packed Contents List 1 x dry-erase / interactive surface, 1 x wall mount
Pack Weights and Dimensions (w x h x d) 42Kg (92.6 lb)
2,503mm x 1,532mm x 130mm (98.5” x 60.3” x 5.1”)
PROJECTOR
Description Solid-State Illumination Full HD Projector
Native Resolution 1920 x1080
Typical Colors 16.77 million colours
Aspect Ratio 16 : 9
Brightness (Normal Max) 3300 Lumens
Brightness Eco 3000 Lumens
Contrast Ratio (Active Dynamic/Native) 10000:1 / 1800:1
Focal Length F=2.4
Throw Ratio 0.25
Projection Distance 232.7mm – 316.3mm (9.2” – 12.5”)
Projection Screen Size 2,210mm – 2,591mm (87” - 102”)
Light Source Laser
Light Source Lifetime 20,000hrs
Acoustic Noise Normal 36dB
Acoustic Noise Eco 32dB
Power Supply & Consumption High 335W
Power Supply & Consumption Eco 225W
Standby (without LAN function) <0.5W
Standby (with LAN function) <3W
HDMI x 2 HDMI2 with MHL1.3 support , HDMI : 1.4a, HDCP : 1.3
Video Standard : 480i/480p/576i/576p/720p/1080i/1080p
PC Graphics : up to UXGA (1600x1200@60Hz)
Input VGA x 2 VGA
Video Standard : 480i/480p/576i/576p/720p/1080i/1080p
PC Graphics : up to UXGA (1600x1200@60Hz)
Output VGA x 1 Loop through VGA input
Video x 1 RCA (yellow), Video Standard : 480i/576i
Stereo Audio in x 2 Composite Audio: RCA-Left (white) / RCA-Right (red) Stereo: 3.5mm jack / stereo
Microphone input x 1 3.5mm Microphone Jack (pink) / mono
Stereo Audio out x 1 3.5mm Audio Jack (green) / stereo
Mini USB x 1 Mini USB1.0 for firmware upgrade
USB A x 1 USB2.0
RS-232 x 1 DB-9 female/19200bps for projector control
RJ-45 x 1 Fast Ethernet (100Base-T) for remote projector control (Crestron / AMX / PJ-Link)
Dimensions (w x d x h) 383mm x 310mm x 86mm (15.1” x 12.2” x 3.4”)
Weight 5.5kg (12.1lb)
Colour White/Grey
Device Type DLP
Focus Manual
Zoom N/A
Operating Temperature 5°C ~ 40°C / 5%~90% without condensation
Keystone Correction ±40
Security Kensington Lock
On-Screen Menu English / German / French / Italian / Spanish / Polish / Swedish / Dutch Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Korean / Russian / Arabic / Norse / Turkish
Advanced Features 3D Ready, Crestron Room-View Express, Near Instant Power On and Off, 20,000 hours lamp life
Packed Contents List Projector, 3m HDMI Cable, 3m Power Cable, Remote Control, Owner’s Manual (CD Rom)
Pack Weights and Dimensions Box 1 of 1 : 8.67kg (19.15lbs) 483mm x 420mm x 328mm (19” x 16.5” x 12.9”)
CE Yes
CB Scheme Yes
FCC Yes
IC Yes
CUL Yes
AUDIO
Description Forward-facing speakers
Total Power 2 x 18W
Frequency Response 80Hz~20KHz
Signal to Noise ≥70dB
Power Supply 100v / 240v – 50/60Hz, 1.5A Max
Power Use (Standby) <0.5w
Audio Inputs x 1 3.5mm Audio Jack (green) / stereo
Packed Contents List 1x RHS Speaker, 1x LHS Speaker, 4x Speaker Bracket, 1x PSU, 1x 3m UK Mains Cable, 1x 3m US Mains Cable, 1x 3m EU Main Cable, 1x PSU Bracket, 1x 3m 3.5mm Stereo Jack to 3.5mm Stereo Jack Audio Cable, 1x 2m RCA to RCA Audio Cable, 1x Remote Control, 1x User Guide, 1x Fixing Kit
Weight and Dimensions Net Weight: 4kg (8.8 lb) Size: TBC Gross Weight: TBC Packed Dims: 650mm X 448mm X 202mm
CE Yes
CB Scheme Yes
FCC Yes
IC Yes
CUL Yes
INTERACTIVITY
Description Multi-touch, multi-pen collaborative surface
System Windows 7 to 10; Mac OS X 10.6 – 10.10;
Continuous Touch Points 20
Digital Pens 4 (1 x Teacher and 3 x Student Pens)
OS Pen & Touch Support Windows 7 or later – native multi-touch and single-pen as mouse in any software. Full multi-touch and single-pen in ClassFlow Desktop & ActivInspire. Mac OSX 10.8 or later - single touch or pen (mouse) in any software. Full multi-touch and single-pen support in ClassFlow Desktop & ActivInspire
Technology Laser Curtain
Resolution 32,678 x 32,678
Object size resolution Minimum 8mm
Resolving Capacity 30mm separation
Positioning Accuracy +/-2mm>90% surface, +/-14mm 100% surface
Tracking rate 5m/sec
Output rate 125Hz
Response Time 15ms
INTERACTIVITY
Start-up Time ≤10 sec
Service Life 20,000 hours for Projector; > 20,000 hours for laser curtain
CE Yes
CB Scheme Yes
FCC Yes
IC Yes
CUL Yes
CLASSFLOW CONNECT
Description Wireless mirroring and lesson delivery device
Applications Instant whiteboard, annotate over mirrored displays, multi-user web browser, ClassFlow Drive and polling
Supported Operating Systems Windows® 7/8.0 through Sender App
Windows® 8.1 through MiraCast
Mac OS®X 10.8+ AirPlay® Compatible Devices
Android™ 4.0 and later with MiraCast
iOS™ 5.0 and later with AirPlay®
Frame Rate Up to 30 FPS
Output Resolution HDMI: 1920 x 1080 @ 60Hz
DP: 2560 x 1600 @ 60Hz
Noise Level 13db (Fanless)
Simultaneous Screen Sources Yes
Supports Simultaneous MiraCast and Airplay Sessions Yes
Dual Simultaneous Network Connectivity Yes, Wi-Fi and Ethernet connections with distinct network addresses with no data bridging between networks
ClassFlow Drive Integration Yes, provides direct access to ClassFlow Drive to quickly present your ClassFlow lessons or any other resources stored in the drive
Audio 2-channel high definition audio
Audio pass through HDMI & DP connection along with video
Jack-sensing compatible
Optical SPDIF
Microphone Jack
Remote volume control
Mirroring Compatibility Compatible with MiraCast and Airplay enabled devices
Authentication Protocol WPA2-PSK; 802.1x; intel-cck
Encryption AES; WEP
Wireless Transmission Protocol IEEE 802.11 a/b/g/n/ac
Fully Qualified Bluetooth 4.0 (disabled)
Data Rate Wireless High Speed Connection up to 867Mbps
Band 2.4 GHZ and 5 GHZ
Power External power adaptor 19V DC input (included in set)
CLASSFLOW CONNECT
Connections 1x Gigabit (10/100/1000Mbps) Ethernet LAN
2x USB 2.0 (white list of class of devices)
4x USB 3.0 (white list of class of devices)
SD/SDHC/SDXC card reader (disabled)
eSATA port (disabled)
Operating Temperature Range 0 - 40 C
32 - 104 F
Humidity 65% Test Condition
Lifetime MTBF = 40,000h (90% confidence level)
MTBF = 100,000h (60% confidence level)
MTBF conditions:
Environment: Ground Benign
Temperature: 25°C
Method: MILHDBK217F
Notice 2
Overall Dimensions 127 mm x 127 mm x 45 mm
Packed Dimensions 255 mm x 205 mm x 95 mm
Net Weight 0.605 Kg (For the Mini PC with Antenna only)
Packed Weight 1.375 Kg
Packed Contents 1 x ClassFlow Connect Device, 1 x AC to DC Power Adapter, 3 x Mains Power Lead (USA, EU, UK), 1 x Power Cord, 1 x Wi-Fi Antenna, 1 x VESA Mount, 4 x Rubber Pad, 4 x VESA Mounting Screws
