Features

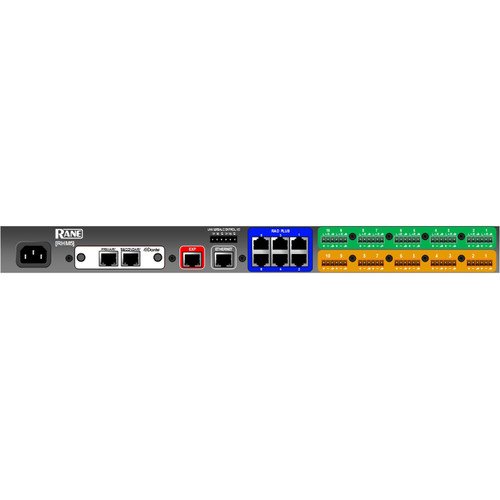

- Native Analog 10-in/10-out
- 6 RAD+ Ports support RADs and DRs - adds 12-in/12-out, for a total 22-in/22-out
- Optional DANTE™ card adds 32-in/32-out on the network
- Expansion Port for future hardware releases
- Online Wizard for quick-start using Halogen software

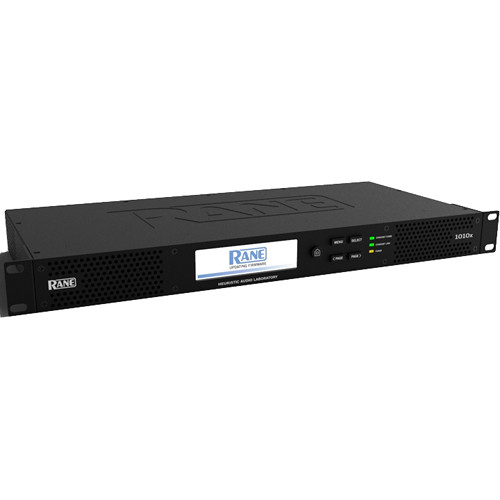

- Enhanced front panel control and monitoring
Package Contents
- Terminal 1010x
- (5) 6-pin 3.8 mm Euroblock input (green, for audio inputs)
- (5) 6-pin 3.8 mm Euroblock outputs (orange, for zone outputs)
- (1) 6-pin 3.8 mm Euroblock input (black, for logic input)
- IEC Power Cable
- Quickstart Guide
- Safety & Warranty Manual
Technical Specifications
Analog I/O Type 10 in x 10 out
ADC High definition audio 24-bit, 48kHz, DR 116dB A-weighted
DAC High definition audio 24-bit, 48kHz, DR 116dB A-weighted
Frequency Response 20Hz–20kHz, ±0.1dB
Inputs Connection (5) Euroblock connectors, 6 pins each, 3.81mm pitch, green. Ships with strain relief plugs.
Condenser Mic Mode Type Active balanced, microphone input mode with 48V phantom power
Phantom Power +48V
Maximum Input 1Vrms
Input Impedance 2.5kΩ Each leg
Dynamic Mic Mode Type Active balanced, microphone input mode without phantom power
Maximum Input 250mVrms
Input Impedance 2.5kΩ Each leg
Line Mode Type Active balanced, line-level
Maximum Input 8Vrms
Input Impedance 5kΩ Each leg
Line+ Mode Type Active, left [+] & right [-] signals summed to mono
Maximum Input 8Vrms
Input Impedance 5kΩ Each leg
Outputs Connection (5) Euroblock connectors, 6 pins each, 3.81mm pitch, orange. Ships with strain relief plugs.
Type Active balanced, line output mode with active output transient muting
Maximum Output 8Vrms
Impedance 300Ω Each leg
Frequency Response 20Hz–20kHz, ±0.1dB
DSP Processing Power >10,000 MIPS
Word Length 32-/64-bit Floating Point
Delay Memory Min. 160sec total
Computer Interface Type Ethernet 1000 base-T Zeroconf service discovery protocol for easy setup
Connection RJ-45 Shielded Cat 5e cable or better
Length 300ft./100m Standard Ethernet cable length limit
RAD+ Ports Connection (6) RJ-45 Shielded Cat 5e cable or better
Audio Channels 2 in, 2 out Each port, control channel 24-bit, 48kHz
Voltage 27 VDC Each port
Power 12W (peak)/6W (average) Each port
Length DR devices: 984ft./300m RAD devices: 325ft./100m
Universal Logic I/O Connection (1) mini-Euroblock connector, 6 pins, 3.81mm pitch, black
Logic In Internal Pull-Up 5mA Protected to +24V, reverse-polarity-protected
Vin High > 2.2V Normal state
Vin Low < 1.0V
Logic Out Open Collector Output Source 5mA, Sink 200mA Protected to +24V, reverse-polarity-protected
Vout High > 2.2V
Vout Low < 0.2V
Ratiometric Input Input 0–5V
V+ 40mA
Resolution 8-bit at 2kHz sample rate
Expansion Port Types Rane Expansion Bus 512 x 512, 48kHz digital audio plus control. Up to 32 Halogen Expansion Devices
Dante card (optional) 32 x 32 with sample-rate conversion, allowing 96kHz sample rate Dante flows
Connection RJ-45 Shielded Cat 5e cable or better
Maximum Length 300ft./100m
Power Connection IEC
Voltage 90–260VAC, 50/60Hz
Consumption 70W
Output 28V
Unit Wiring Class 2 Rear-panel terminals
Operating Temperature 32–104°F, 0–40°C
Fan 10CFM, low noise (<20dBa), long life (60k hours at 45°C)
Dimensions 19.0" x 8.25" x 1.73"
48.3cm x 20.9cm x 4.4cm Width x depth x height
Weight 7.0 lbs., 3.2 kg
