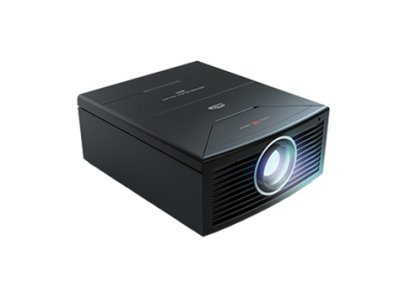

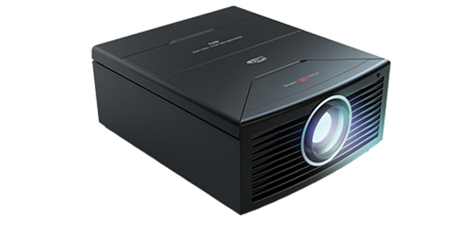

Projektor Sim2 SIRIO 2
SIRIO 2
Jednoczipowy projektor 3D DLP o wysokiej jasności
Zaprojektowany dla najbardziej wymagających instalacji, SIRIO2 oferuje równowagę pomiędzy wysoką jasnością a jakością obrazu konkurencyjną dla najlepszych projektorów w tej kategorii. Zaprojektowany do wykorzystania z dużymi ekranami lub w lekko oświetlonych pomieszczeniach, gdzie wysoka jasność jest konieczna. Komponenty optyczne SIRIO 2 maksymalizują jasność ( do 7000 ANSI lumenów)dzięki dwóm lampom o wysokiej mocy. Ten projektor ma moc i jasność, która zadowoli najbardziej wymagających widzów i daje możliwość generowania jasnego, bogatego obrazu w świetle rzeczywistym.
Cechy charakterystyczne:
• Projektor jednoczipowy o wysokiej jasności 3D(*) 1080p DLP® (1920x1080pikseli) chipset DarkChip
• funkcja Perfect Fit pamięć zoom, focus i przesunięcia soczewek (format bez soczewek 2.40:1)
• jasność do 7,000 ANSI Lumenów
• Kontrast do 8000:1
• Lampa 2x350W
• Wybór pięciu soczewek.
• Oprogramowanie SIM2 Live Colors Calibration 2
• Kalibrator
• SIM2 Dynamic Black
•Tryby PureMovie, PureAction i PureAction3D(*)
• 10 Bitowe przetwarzanie wideo
• Kompleksowy wybór wejść, włączając 2xHDMI (1.4 z opcją Deep Color)
• Zaawansowana łączność:w pełni zdalny monitoring i aktualizacje oprogramowania
• Kolor obudowy: matowy czarny
• Wymiary: 464x241x564mm (18.3”x9.5”x22.2”)
• Waga: 28Kg.(62lbs.)
Uwaga: Perfect Fit działa optymalnie z soczewkami M2, M3, M4 i M5. Niemoże być użyty z krótko-rzucającymi soczewkami M0iM1
Prosimy o wybór soczewki
Dostępne soczewki: M0: 0.77: (stałe) •M1: 1.21-1.45:1 •M2(standardowe): 1.45-1.93:1 •M3: 1.93-3.67:1
(*) System SIM2 VISUS jest wymagany do obsługi tej funkcji (sprzedawany osobno)
Anamorficzne soczewki są dostępne dla tego modelu
LIGHT ENGINE
| DLP® Type | Single-Chip DMDs 1080p |
| Resolution | 1920x1080 pixels |
| 3D Features (1) | |
| Brightness (2) | up to 7,000 ANSI Lumens |
| Contrast ratio | up to 8,000:1 |
| Special features | SIM2 Dynamic Black technology |
| Perfect Fit technology (3) | |
| PureAction 2D/3D for fast action materials | |
| PureMovie 2D | |
| Lamp power | 2 x 350W Lamp |
| Lamp life expectancy (4) | 2.000 hours typical in standard power mode; 2.500 hours in ECO mode |
INSTALLATION
| Lenses Throw ratio | M0 lens 0.77:1 (fixed) |
| M1 lens 1.21-1.45:1 | |
| M2 lens (standard lens) 1.45-1.93:1 | |
| M3 lens 1.93-3.67:1 | |
| Zoom adjustment | motorized |
| Focus adjustment | motorized |
| Optical shift | Vertical +60% / -20% motorized |
| Horizontal +10% / -10% motorized | |
| Digital keystone adjustment (for 2D and 3D 1080p24 modes) | |
| Picture size (inches diagonal) | 30-500 inches |
| Aspect ratio | 4:3, 16:9 Anamorphic, LetterBox, Panoramic, Subtitle, Pixel to Pixel + 3 custom-user adjustments |
ELECTRONICS
| Horizontal & vertical scan freq. | 15-120kHz/48-100Hz, 24Hz@1080p |
| SDTV | PAL (B,G,H,I,M,N,60); SECAM; NTSC autom. selected |
| HDTV | 480p, 720p 50/60, 1080i 50/60, 1080p 24/50/60 + 576p |
| PC graphic standard | VGA, SVGA, XGA, SXGA, UXGA, WUXGA 10 bit Full Channel Signal Board Video Processing |
CONNECTIVITY
| Digital | 2 x HDMI-HDCP vers. 1.4a |
| Analog | 1 x Graphic RGBVH (VGA-UXGA) (D-sub 15 pin) |
| 1 x Component - Analog YPbPr/RGBs/RGBHV (RCA) | |
| 1 x Composite Video | |
| Control | 1 x 3 pin MiniDIN (VESA STD) 3D Sync Out connector |
| 1 x RJ45 LAN | |
| 1 x RS232 (D-sub 9 pin) | |
| 1 x USB connector Remote Control Port (Host Mode Only) | |
| IR Receiver for Remote Control | |
| Miscellaneous | 3 x 12V 100mA output (via Jack) for On/Off Screen control 16:9/4:3, Anamorphic Lens |
| 2 x 7-segment Displays for Status indications | |
| 8 keys keypad |
GENERAL SPECIFICATIONS
| Software control | upgradable via RS232, serial interface or USB |
| Mains voltage range | 100-240 +/-10% (48/62 Hz), standard DIN power connector |
| Power consumption | maximum dual lamp operation: 900 W |
| maximum single lamp operation: 460 W | |
| maximum when lamp cooling: 33W | |
| stand-by: less than 1W | |
| Projector dimensions (WxHxD) | 464 x 241 x 564 mm |
| Projector Weight | 27 Kg |
| Packaging dimensions (WxHxD) | 564 x 341 x 664 mm |
| Packaging weight | 32 Kg |
ACCESSORIES
| Supplied | Installation and User Manual |
| AC power cords (2m - 6.6 ft) | |
| Backlit remote control and batteries | |
| Live Colors Calibration software 2.0 | |
| High Precision Probe | |
| RS232 Adapter Cable; USB Wi-Fi adapter | |
| Optional | SIM2 VISUS Active Glasses (1) |
| Emitter | |
| Projector ceiling bracket | |
| Anamorphic lens systems (fixed or motorized) |
CERTIFICATIONS
| Standard | EN 60950 - 1 Safety of information technology equipment, including electrical business equipment |
| UL 60950 & CAN/CSA-C22.2 No. 60950 Safety of Information Technology Equipment | |
| RoHS + RoHS Cina | |
| Marking | CE, cULus, CCC |
| Electro Magnetic Compatibility EMISSION | FCC, CFR 47, Part 15 SubpartB, Class B |
| EN 55022Information technology equipment – Radio disturbance characteristics – Limits and methods of measurement - Class B | |
| Electro Magnetic Compatibility immunity | EN 55024 Information technology equipment - Immunity characteristics - Limits and methods of measurement |
| ENV 50204 | |
| Numeric cellular phone electromagnetic field – Immunity Test |
(2) ANSI Lumen Specification: This is the typical projector brightness specification found in most sales literature. This measurement allows for direct comparison with other manufacturer’s projectors. Measurements are taken in a totally dark test room with T3 type lens (wide angle zoom settings), brand new lamp at full power, lamp’s native white color temperature, internal test pattern (full white) and in compliance with ANSI IT7.228-1997 specification.
(4) Lamp life: the hours quoted have been measured in a lab under ideal test conditions. Lamp life varies depending on usage conditions and the surrounding environment. This is an average value that cannot be guaranteed and is not protected by warranty.
The DLP® logo and DLP® medallion are trademarks of Texas Instruments. product specifications are subject to change without notice.
Due to constant product development, specifications and design might be subject to change without
