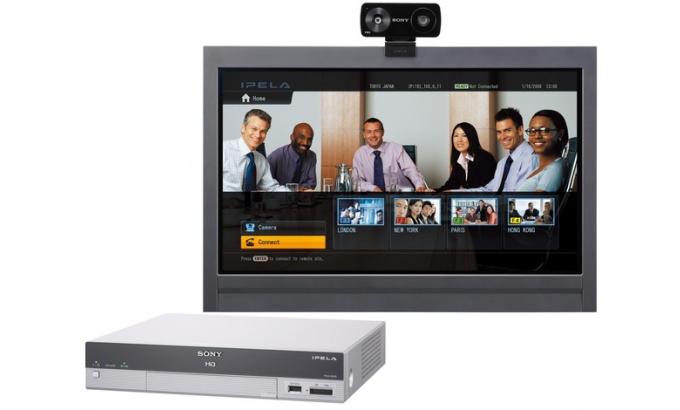

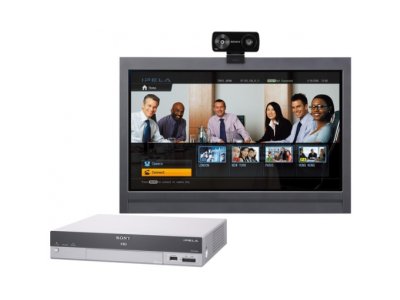

PCS-XA80 - High Definition Video Conferencing System

28 351,50 zł

Produkt dostępny

Easy to set up and use, this HD video conferencing system offers a powerful yet affordable solution for everyday business communications.

The compact, High Definition CMOS camera attaches neatly to a wide range of display screens, minimising disruption to your existing office AV infrastructure. Enjoy smooth, crisp HD video plus clear sound from the integrated microphone. Enrich conferences with shared presentations from the screen of your PC.

Optional PCSA-MCG80 MCU software makes multi-point conferences just as simple. The PCS-XA80 can be configured to communicate with up to five remote sites via either IP or ISDN connections.

Everything else is included: video codec unit, HDMI cable for connecting to a display/monitor and remote commander for easy one-touch dialling from your contacts list.

NB: Display is not included.

W przypadku pytań, proszę o kontakt:

adam@kraftmann.com

GSM. 504 58 64 88

tel. 22 490 31 43

Camera

Image Sensor	1/3.2-type 8 Megapixels CMOS image sensor
Image Sensor (Number of Effective Pixels)	6 Megapixels
Output Pixels (H x V)	1280 x 720
Frame Rate	30 fps
S/N Ratio	50 dB
Brightness Control	Auto/Manual
Zoom Ratio	x3 digital zoom
Focusing System	Auto/Manual
Horizontal Viewing Angle	80.1°
Vertical Viewing Angle	62.7°
Focal Length	f = 2.9 mm
F-Number	F2.8
Minimum Object Distance	80 mm (At WIDE end)
Pan/Tilt Angle	Manual Pan ±20°/Tilt ±20°
Preset Position	100 positions
Power Supply	Supplied from Codec Unit
Other Features	Auto Gain Control, Auto White Balance, Backlight Compensation
Multipoint Capability	Up to 6 sites (H.320/H.323) with optional software PCSA-MCG80 7 to 10 sites (H.320/H.323) requires two PCS-XA80 units with optional software PCSA-MCG80 using cascaded connection.

Key Features

Data Sharing	PC images up to SXGA resolution is supported. Video annotation function is available.
Lip Synchronization	AUTO/OFF
Mic Off Function	ON/OFF
Streaming/Recording Feature	Audio: 64 kbps Video: 0 kbps to 512 kbps (5-step)

Video

Maximum Frame Rate	H.264 - 720p H.261 - QCIF, CIF H.263 - QCIF, CIF H.264 - QCIF, CIF, 4CIF, wCIF, w432p, w4CIF H.263 - 4CIF
Communication Protocol Standards	H.261, H.263, H.263+, H.263++, H.264, H.264 High profile, MPEG-4 SP@L3
Resolution	4:3 - QCIF (176 x 144), CIF (352 x 288), 4CIF (704 x 576) 16:9 - wCIF/w288p (512 x 288), w432p (768 x 432), w4CIF (1024 x 576), 720p (1280 x 720)
Bit Rate	64 kbps to 10,240 kbps
Screen Layout	Full Screen, PinP, PandP, SideBySide

Audio

Bandwidth and Coding	MPEG-4 AAC Stereo: 22 kHz at 192 kbps (IP only) MPEG-4 AAC Mono: 14 kHz at 48 kbps, 64 kbps, 96 kbps MPEG-4 AAC Mono: 22 kHz at 64 kbps, 96 kbps (IP only) G.711: 3.4 kHz at 56 kbps, 64 kbps G.722: 7.0 kHz at 48 kbps, 56 kbps, 64 kbps G.728: 3.4 kHz at 16 kbps
Other Features	Stereo echo-cancelling (ON/OFF), Auto Gain Control, Noise Reduction

Network

Protocols	TCP/IP, UDP/IP, DHCP, DNS, HTTP, TELNET, SSH, SNMP, NTP, ARP, RTP/RTCP
QoS (Quality of Service)	Adaptive FEC (Forward Error Correction), Real-time ARQ (Auto Repeat reQuest), ARC (Adaptive Rate Control), IP Precedence, DiffServe
Other Network Features	Packet reordering, TCP/UDP port setting, NAT, PPPoE, UDP shaping, Encryption, Auto gatekeeper discovery,UPnP[[F_ZD0006]], URI Dialing, IPv6

Interface

Video Input	AUX video inputs (S-Video x 1, Y/Pb/Pr x 1, RGB x 1)
Video Output	HDMI x 1, RGB x 1
Control Input	RS-232C x 1
Audio Input	External analog microphone input Mini-jack (Plug in power) x 2 (L/R) EC-Mic Input x 2 (PCSA-A7) Audio Input (MIC/AUX) x 2 (Phono jack, stereo)
Audio Output	HDMI (video, audio) x 1, Line Output (Phono jack, stereo) x 1, REC Output (Phono jack, stereo) x 1
Network Port	10BASE-T/100BASE-TX x 2, ISDN Unit Interface x 1
Memory Stick Slots	1
Maintenance Interface	RS-232C x 1
Others	Tablet Interface x 1

Standard

Communication Protocol Standards	ITU-T H.320, H.323[[F_ZD0007]], IETF SIP
ITU-T (excluding audio/video standards)	H.231, H.241 H.242, H.243, H.245, H.350, H.460.18, H.460.19
IETF	RFC2190, RFC3016, RFC3047, RFC3261, RFC3264, RFC3550, RFC3984, RFC4573, RFC4587, RFC4629, RFC4856, RFC4628, RFC5168
Encryption	H.233, H.234, H.235 ver.3
Far End Camera Control	H.224, H.281
Frame Format	H.221, BONDING, H.225.0
Dual Stream	H.239 (video and presentation data)

General

Power Requirements	DC 19.5 V (AC Adapter : AC 100 V to 240 V, 50/60 Hz)
Power Consumption	40 W (the codec only)
Power Consumption (Standby）	10 W (the codec only)
Operating Temperature	5°C to 35°C 41°F to 95°F
Storage Temperature	-20°C to +60°C -4°F to +140°F
Operating Humidity	20% to 80% (no condensation)
Storage Humidity	20% to 80% (no condensation)
Dimensions (W x H x D)	Codec: Approx. 282 x 56 x 244mm (excluding protrusions) Approx. 11 1/8 x 2 1/4 x 9 5/8 inches (excluding protrusions) Camera unit: Approx. 115 x 49.2 x 29.3 mm (excluding protrusions and arm) Approx. 4 5/8 x 1 15/16 x 1 3/16 inches (excluding protrusions and arm)
Mass	Codec: Approx. 2.2 kg Approx. 4 lb 14 oz Camera unit: Approx. 0.5 kg Approx. 1lb 2 oz
Supplied Accessories	PCSA-CXG55 HD camera (1) PCS-A1 microphone (2) AC adapter (1) Power cord (1) HDMI cable (3m) (1) RF Remote Commander Unit (1) Batteries for Remote Commander unit (2) CD-ROM (Operating Instructions, Before using this unit, Quick connection guide) (1) Installation Guide (1) Remote commander guide (1) Important notice regarding software (1) Warranty booklet (1) Camera cable (3m) for HD camera (1) Hook-and-loop pads for HD camera (2) Operating instructions for HD camera (1) Adhesive disc for suction cup (for HD camera) (1) Operating instructions for HD camera (1)
*1	The values for dimensions are approximate.
*2	It requires the optional data solution software PCSA-DSG80 to send video and presentation data simultaneously.
*3	Available only when local and remote terminals are both PCS-XG80 working in the 1080i mode.
*4	Available only when local and remote terminals are both PCS-XG80 working in the 1080 mode. Input/Output signals are 1080i.
*5	Maximum speed is 4 Mbps when the connected point does not use the PCS-XG80/XA80.
*6	It is unavailable depending on the model.
*7	Interoperable with other manufacturer's endpoint which is compliant to H.323/H.320. It does not mean that all connections are guaranteed.
*8	It requires the optional data solution box PCSA-DSB1S to send PC image.
*9	Composite input requires a conversion cable
