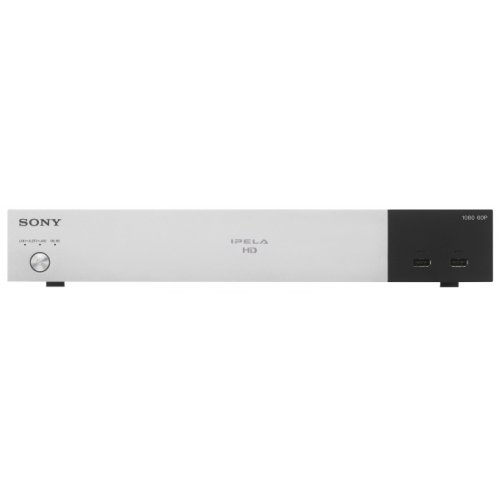

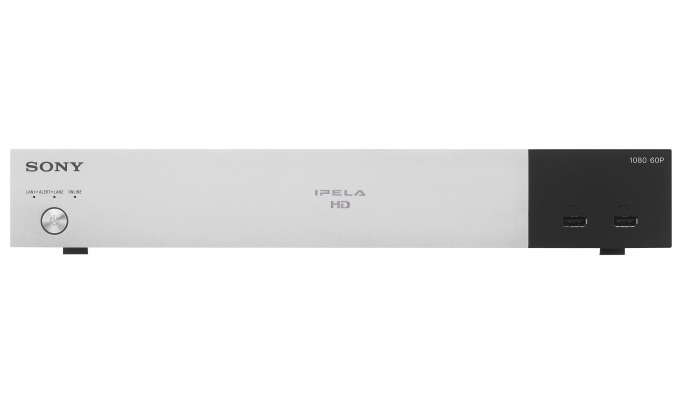

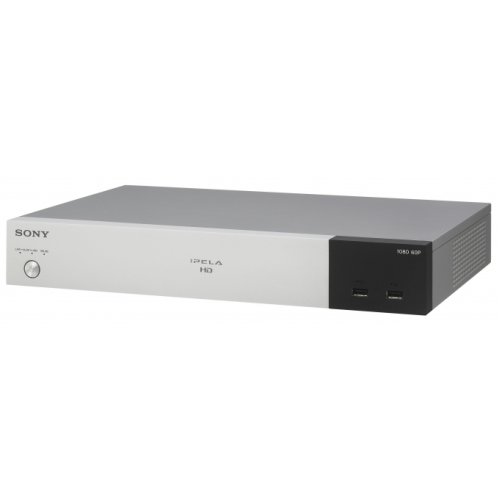

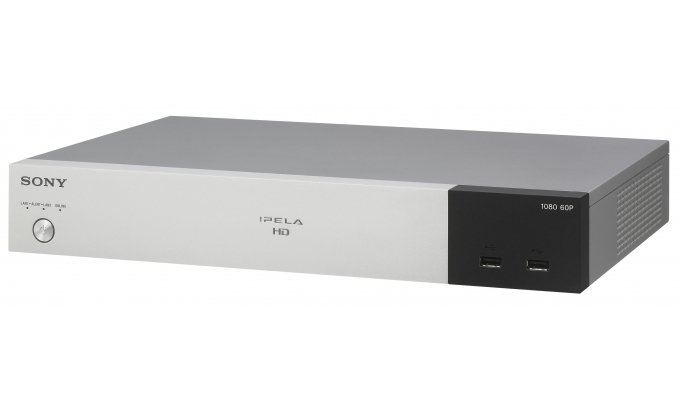

PCS-XG100 - Full HD High Definition Videoconferencing System

54 981,00 zł

Produkt dostępny

Enterprise 1080/60p HD Videoconferencing System including EVI-H100V camera, remote commander and 2 microphones - with Stereo Echo Canceller, 16Mbps embeded MCU upgradable. 3 Years Prime Support

W przypadku pytań, proszę o kontakt:

adam@kraftmann.com

GSM. 504 58 64 88

tel. 22 490 31 43

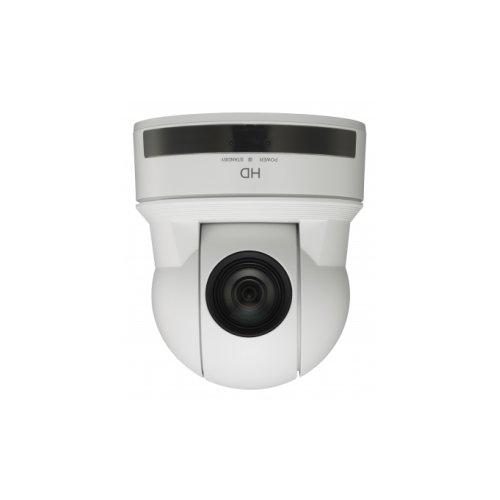

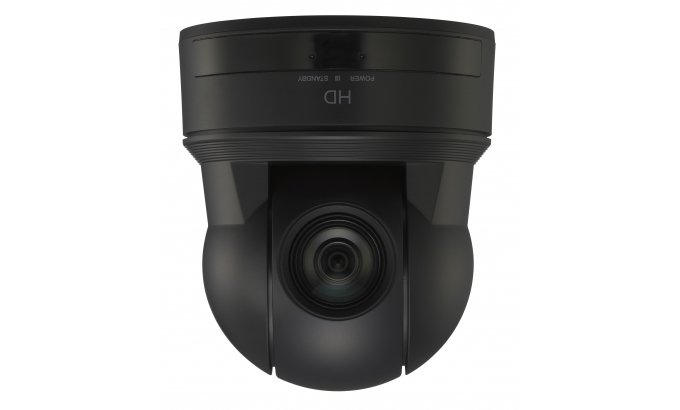

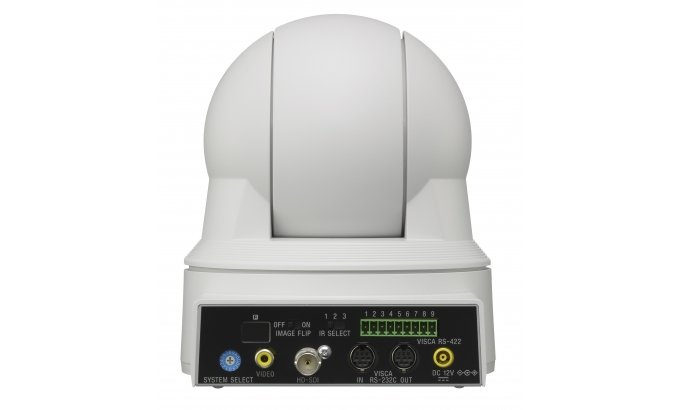

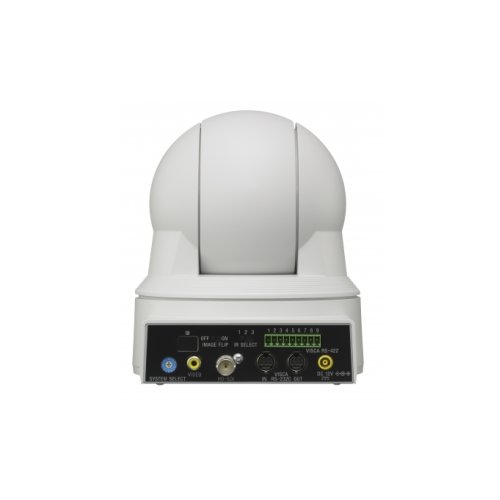

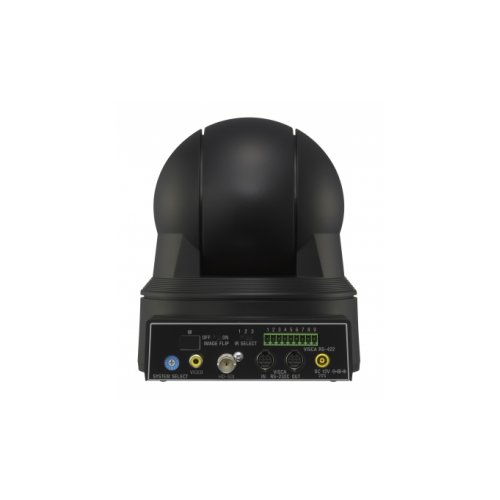

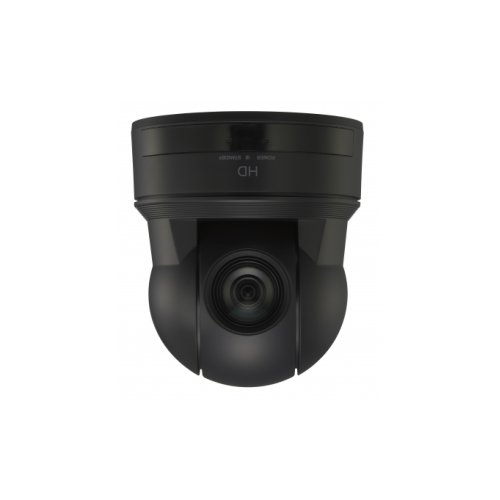

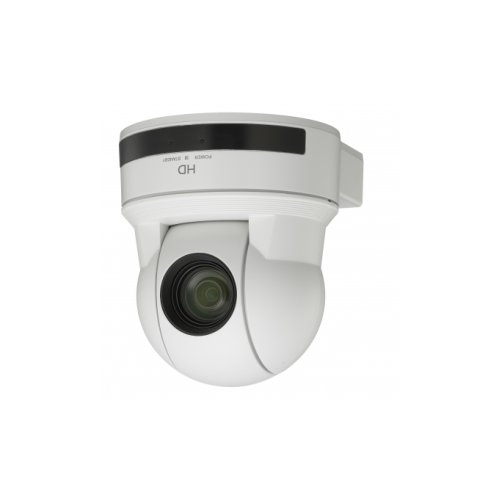

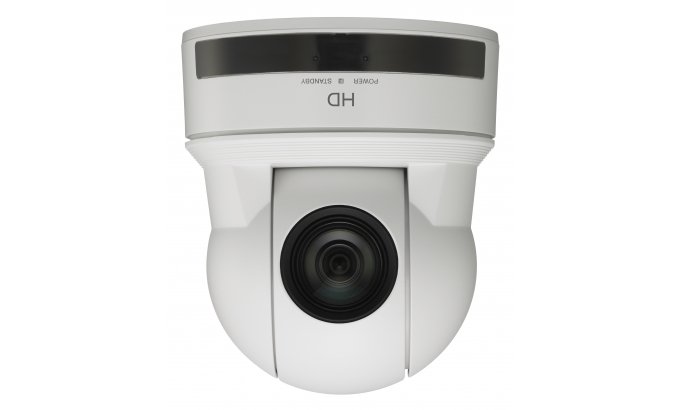

Camera (Optional EVI-H100V camera)

Image Sensor	1/2.8-type "Exmor" CMOS image sensor
Image Sensor (Number of Effective Pixels)	Approx. 3.27 Megapixels
Output Pixels (H x V)	1920 x 1080
Frame Rate	29.97 fps
S/N Ratio	50 dB
Brightness Control	Auto/Manual
Zoom Ratio	x240 zoom (x20 optical zoom, x12 digital zoom)
Focusing System	Auto/Manual
Horizontal Viewing Angle	Approx. 55.4°
Focal Length	f = 4.7 mm to 94.0 mm
F-Number	F1.6 to F3.5
Pan/Tilt Angle	Pan ±170° / Tilt +90°-20°
Preset Position	100 positions (Saved in Codec Unit)
Power Supply	Supplied from Codec Unit
Other Features	Auto Gain Control, Auto White Balance, Backlight Compensation, Ceiling Mountable (Image Flip), VISCA output to the second camera

Key Features

Multipoint Capability	Up to 9 sites (H.323) with optional software PCSA-MCG109. (6 sites with H.320)1 10 to 16 sites (H.323) requires two PCS-XG100S units with optional software PCSA-MCG109 using cascaded connection. (10 sites with H.320)1 PC images up to 1080p resolution is supported PC images up to SXGA resolution is supported
Data Sharing	PC images up to 1080p resolution is supported Video annotation function
Lip Synchronization	AUTO/OFF
Mic Off Function	ON/OFF
Streaming/Recording Feature	HD 720p

Video

Maximum Frame Rate	H.261 QCIF 30 fps, CIF 30 fps, H.263 QCIF 30 fps, CIF 30 fps, 4CIF 30 fps H.264 QCIF 30 fps, CIF 30 fps, 4CIF 30 fps, wCIF 30 fps, w432p 30 fps, w4CIF 30 fps, 720p 60 fps, 1080p 60 fps
Communication Protocol Standards	H.261*2, H.263, H.263+, H.263++, H.264, H.264 High profile, MPEG-4 SP@L3
Resolution	4:3 QCIF (176 x 144), CIF (352 x 288), 4CIF (704 x 576) 16:9 wCIF/w288p (512 x 288), w432p (768 x 432), w4CIF (1024 x 576), 720p (1280 x 720), 1080p (1920 x 1080)
Bit Rate	64 kbps to 16,000 kbps
Screen Layout	Full Screen, PinP, PandP, SideBySide, PandPandP

Audio

Bandwidth and Coding	MPEG-4 AAC Stereo: 22 kHz at 192 kbps (IP only) MPEG-4 AAC Mono: 14 kHz at 48 kbps, 64 kbps, 96 kbps MPEG-4 AAC Mono: 22 kHz at 64 kbps, 96 kbps (IP only) G.711: 3.4 kHz at 56 kbps, 64 kbps G.722: 7.0 kHz at 48 kbps, 56 kbps, 64 kbps G.728: 3.4 kHz at 16 kbps
Other Features	Stereo echo-cancelling (ON/OFF), Auto Gain Control, Noise Reduction

Network

Protocols	TCP/IP, UDP/IP, DHCP, DNS, HTTP, TELNET, SSH, SNMP, NTP, ARP, RTP/RTCP
QoS (Quality of Service)	Adaptive FEC (Forward Error Correction), Real-time ARQ (Auto Repeat reQuest), ARC (Adaptive Rate Control), IP Precedence, DiffServe
Other Network Features	Packet reordering, TCP/UDP port setting, NAT, PPPoE, UDP shaping, Encryption, Auto gatekeeper discovery, UPnP, URI Dialing, IPv6

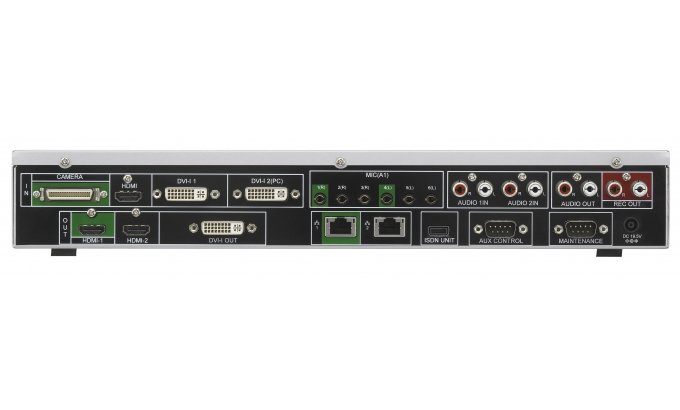

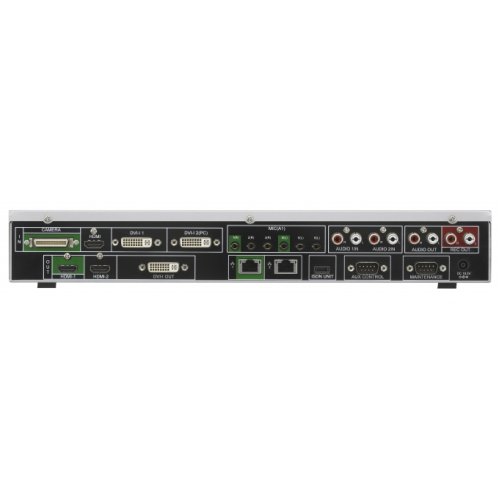

Interface

Video Input	External video inputs (HDMI x 1, DVI-I x 2)
Video Output	HDMI x 2, DVI-I x 1
Control Input	RS-232C x 1
Audio Input	External analog microphone input Mini-jack (Plug in power) x 6 (L/R) HDMI (video, audio) x 1 Audio Input (MIC/AUX) x 2 (Phono jack, stereo)
Audio Output	HDMI (video, audio) x 1, Line Output (Phono jack, stereo) x 1, REC Output (Phono jack, stereo) x 1
Network Port	10BASE-T/100BASE-TX/1000BASE-T x 2, ISDN Unit Interface x 1
USB Slots	2 (Pen Tablet, USB Memory)
Maintenance Interface	RS-232C x 1

Standard

Communication Protocol Standards	ITU-T H.320*1, H.323, IETF SIP
ITU-T (excluding audio/video standards)	H.231, H.241 H.242, H.243, H.245, H.350, H.460.18, H.460.19
IETF	RFC2190, RFC3016, RFC3047, RFC3261, RFC3264, RFC3550, RFC3984, RFC4573, RFC4587, RFC4629, RFC4856, RFC4628, RFC5168
Encryption	H.233, H.234, H.235 ver.3
Far End Camera Control	H.224, H.281
Frame Format	H.221, BONDING, H.225.0
Dual Stream	H.239 (video and presentation data)

General

Power Requirements	DC 19.5 V (AC Adapter : AC 100 V to 240 V, 50/60 Hz)
Power Consumption	58.5W
Power Consumption (Standby）	23.4W
Operating Temperature	5°C to 35°C 41°F to 95°F
Storage Temperature	-20°C to +60°C -4°F to +140°F
Operating Humidity	20% to 80% (no condensation)
Storage Humidity	20% to 80% (no condensation)
20% to 80% (no condensation)	Codec: Approx. 370 x 60 x 244 mm (excluding protrusions) Camera unit (optional EVI-H100V): Approx. 145 x 164 x 164mm (excluding protrusions) Codec: Approx. 2.3 kg
Mass	Codec: Approx. 2.3 kg Camera Unit (optional EVI-H100V): Approx. 1.55 kg

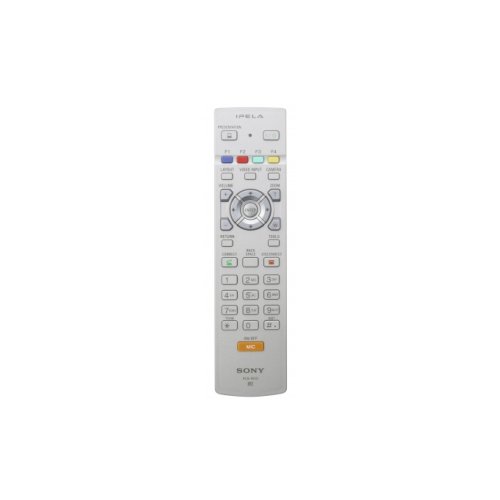

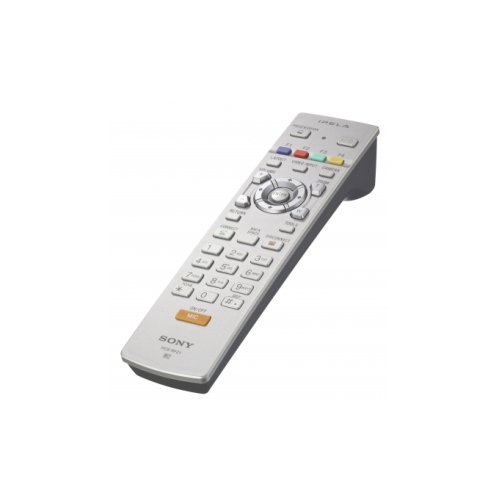

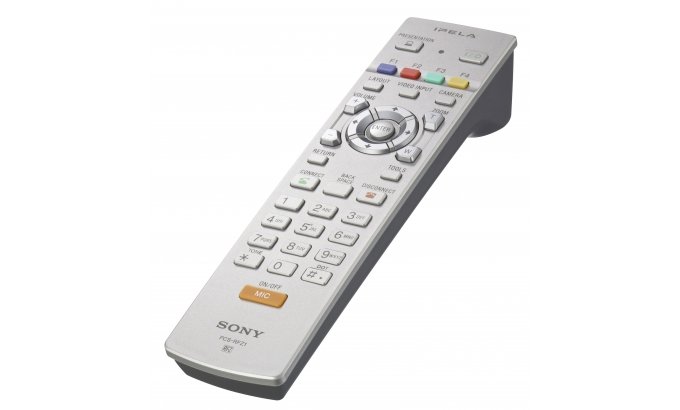

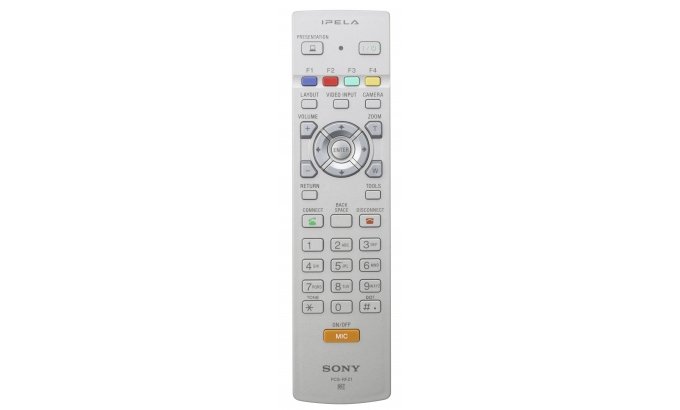

Supplied Accessories	PCS-A1 microphones (2), AC adapter (1), HDMI cable (3m) (1), RF Remote Commander Unit (1), Batteries for Remote Commander unit (2), CD-ROM (Operating instructions, Before using this unit, Quick connection guide) (1), Installation Guide (1), Warranty booklet (1), Camera cable (3m) for HD camera (1)
1	H.320 will be available as V1.1
2	H.261 in H.323 will be available as V1.1
