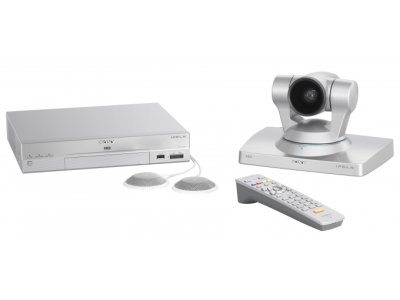

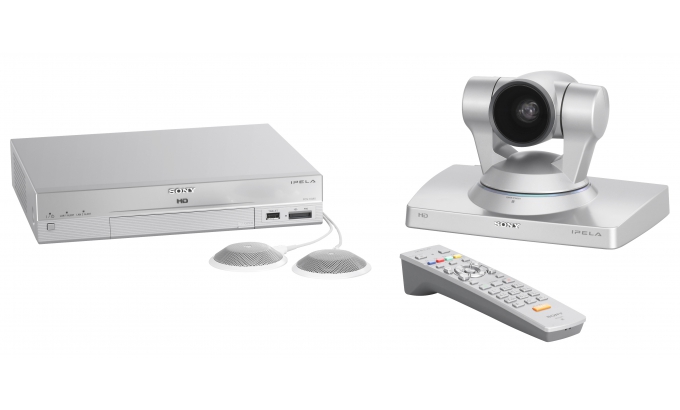

PCS-XG77 - High Definition Videoconferencing System

41 881,50 zł

Produkt dostępny

This powerful yet easy-to-use HD videoconferencing system offers superb picture and sound quality, plus versatile collaboration tools and flexible configuration.

Smoothly detailed HD (720p) images at up to 50 fps make the PCS-XG77 ideal for a wide range of virtual meeting and distance learning applications.

Crystal-clear pictures from the PTZ camera (not included with PCS-XG77S) are complemented by clear, natural sounding audio. ‘Dual stream’ video and PC presentations can be shared seamlessly with remote locations at 30 fps.

See camera images plus PC presentations on one or two connected video monitors with a generous choice of screen layout options.

HD conferences can be streamed as live webcasts across your organisation, or recorded to USB memory for easy sharing and review.

Set-up is refreshingly straightforward, with quick booting so you’re ready for business even faster. Operation is easy, too: just select a contact using the supplied remote commander to launch your conference at a touch.

Also available as PCS-XG77S ‘codec only’ version (without PTZ camera).

W przypadku pytań, proszę o kontakt:

adam@kraftmann.com

GSM. 504 58 64 88

tel. 22 490 31 43

Camera (Optional EVI-H100V camera)

Image Sensor	1/2.8-type "Exmor" CMOS image sensor
Image Sensor (Number of Effective Pixels)	Approx. 3.27 Megapixels
Output Pixels (H x V)	1920 x 1080
Frame Rate	29.97 fps
S/N Ratio	50 dB
Brightness Control	Auto/Manual
Zoom Ratio	x240 zoom (x20 optical zoom, x12 digital zoom)
Focusing System	Auto/Manual
Horizontal Viewing Angle	Approx. 55.4°
Focal Length	f = 4.7 mm to 94.0 mm
F-Number	F1.6 to F3.5
Pan/Tilt Angle	Pan ±170° / Tilt +90°-20°
Preset Position	100 positions (Saved in Codec Unit)
Power Supply	Supplied from Codec Unit
Other Features	Auto Gain Control, Auto White Balance, Backlight Compensation, Ceiling Mountable (Image Flip), VISCA output to the second camera

Key Features

Data Sharing	PC images up to SXGA resolution is supported
Lip Synchronization	AUTO/OFF
Mic Off Function	ON/OFF
Streaming/Recording Feature	HD 720p

Video

Maximum Frame Rate	H.261 QCIF 30 fps, CIF 30 fps, H.263 QCIF 30 fps, CIF 30 fps, 4CIF 30 fps H.264 QCIF 30 fps, CIF 30 fps, 4CIF 30 fps, wCIF 30 fps, w432p 30 fps, w4CIF 30 fps, 720p 60 fps
Communication Protocol Standards	H.261*2, H.263, H.263+, H.263++, H.264, H.264 High profile, MPEG-4 SP@L3
Resolution	4:3 QCIF (176 x 144), CIF (352 x 288), 4CIF (704 x 576) 16:9 wCIF/w288p (512 x 288), w432p (768 x 432), w4CIF (1024 x 576), 720p (1280 x 720)
Bit Rate	64 kbps to 4,096 kbps
Screen Layout	Full Screen, PinP, PandP, SideBySide, PandPandP

Audio

Bandwidth and Coding	MPEG-4 AAC Stereo: 22 kHz at 192 kbps (IP only) MPEG-4 AAC Mono: 14 kHz at 48 kbps, 64 kbps, 96 kbps MPEG-4 AAC Mono: 22 kHz at 64 kbps, 96 kbps (IP only) G.711: 3.4 kHz at 56 kbps, 64 kbps G.722: 7.0 kHz at 48 kbps, 56 kbps, 64 kbps G.728: 3.4 kHz at 16 kbps
Other Features	Stereo echo-cancelling (ON/OFF), Auto Gain Control, Noise Reduction

Network

Protocols	TCP/IP, UDP/IP, DHCP, DNS, HTTP, TELNET, SSH, SNMP, NTP, ARP, RTP/RTCP
QoS (Quality of Service)	Adaptive FEC (Forward Error Correction), Real-time ARQ (Auto Repeat reQuest), ARC (Adaptive Rate Control), IP Precedence, DiffServe
Other Network Features	Packet reordering, TCP/UDP port setting, NAT, PPPoE, UDP shaping, Encryption, Auto gatekeeper discovery, UPnP, URI Dialing, IPv6

Interface

Video Input	External video inputs (DVI-I x 2)
Video Output	HDMI x 1, DVI-I x 1
Control Input	RS-232C x 1
Audio Input	External analog microphone input Mini-jack (Plug in power) x 6 (L/R) HDMI (video, audio) x 1 Audio Input (MIC/AUX) x 2 (Phono jack, stereo)
Audio Output	HDMI (video, audio) x 1, Line Output (Phono jack, stereo) x 1, REC Output (Phono jack, stereo) x 1
Network Port	10BASE-T/100BASE-TX/1000BASE-T x 1, ISDN Unit Interface x 1
USB Slots	2 (Pen Tablet, USB Memory)
Maintenance Interface	RS-232C x 1

Standard

Communication Protocol Standards	ITU-T H.320*1, H.323, IETF SIP
ITU-T (excluding audio/video standards)	H.231, H.241 H.242, H.243, H.245, H.350, H.460.18, H.460.19
IETF	RFC2190, RFC3016, RFC3047, RFC3261, RFC3264, RFC3550, RFC3984, RFC4573, RFC4587, RFC4629, RFC4856, RFC4628, RFC5168
Encryption	H.233, H.234, H.235 ver.3
Far End Camera Control	H.224, H.281
Frame Format	H.221, BONDING, H.225.0
Dual Stream	H.239 (video and presentation data)

General

Power Requirements	DC 19.5 V (AC Adapter : AC 100 V to 240 V, 50/60 Hz)
Power Consumption	58.5W
Power Consumption (Standby）	23.4W
Operating Temperature	5°C to 35°C 41°F to 95°F
Storage Temperature	-20°C to +60°C -4°F to +140°F
Operating Humidity	20% to 80% (no condensation)
Storage Humidity	20% to 80% (no condensation)
20% to 80% (no condensation)	Codec: Approx. 370 x 60 x 244 mm (excluding protrusions) Camera unit (optional EVI-H100V): Approx. 145 x 164 x 164mm (excluding protrusions) Codec: Approx. 2.3 kg
Mass	Codec: Approx. 2.3 kg Camera Unit (optional EVI-H100V): Approx. 1.55 kg
Supplied Accessories	PCS-A1 microphones (2), AC adapter (1), HDMI cable (3m) (1), RF Remote Commander Unit (1), Batteries for Remote Commander unit (2), CD-ROM (Operating instructions, Before using this unit, Quick connection guide) (1), Installation Guide (1), Warranty booklet (1), Camera cable (3m) for HD camera (1)
1	H.320 will be available as V1.1
2	H.261 in H.323 will be available as V1.1
