PCS-XG80 - HD Videoconferencing System

29 618,40 zł

Produkt dostępny

This versatile, easy to use Videoconferencing system is ideal for general business communications as well as distance learning.

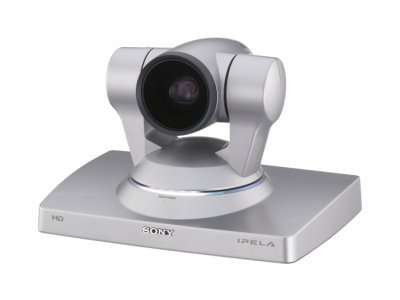

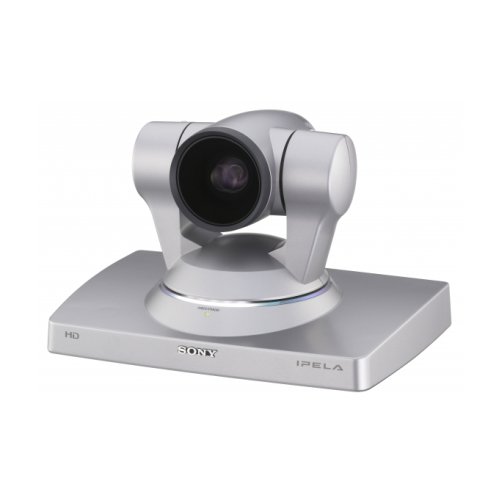

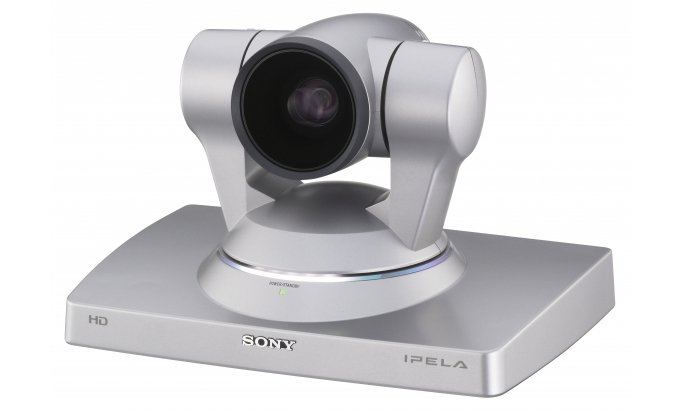

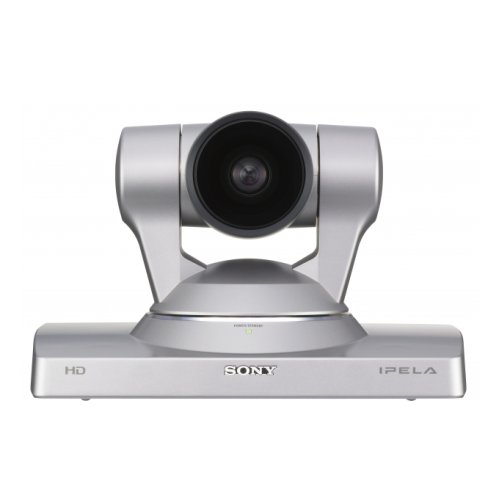

The compact, mainstream system includes a High Definition PTZ camera with ‘BrightFace’ technology for crisp images in any lighting conditions – even dimly lit rooms where a projector’s being used. Superb picture quality is partnered by clear, echo-free stereo audio so every participant can be seen and heard clearly.

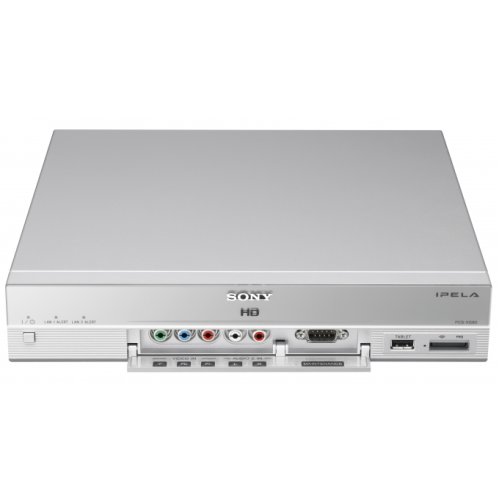

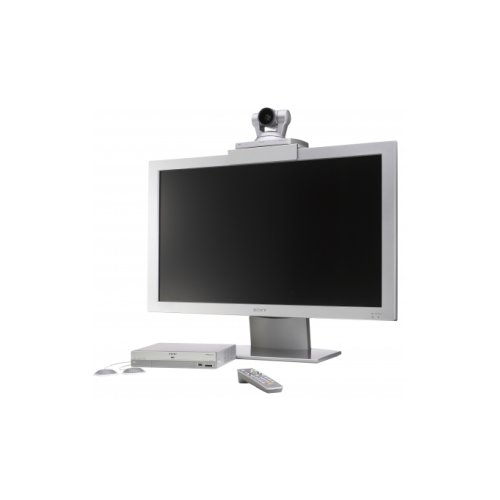

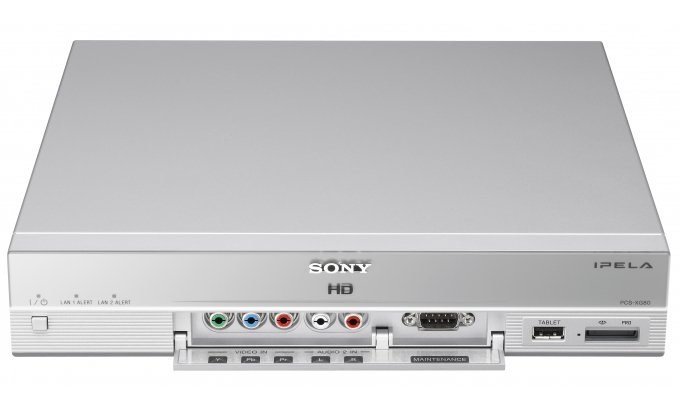

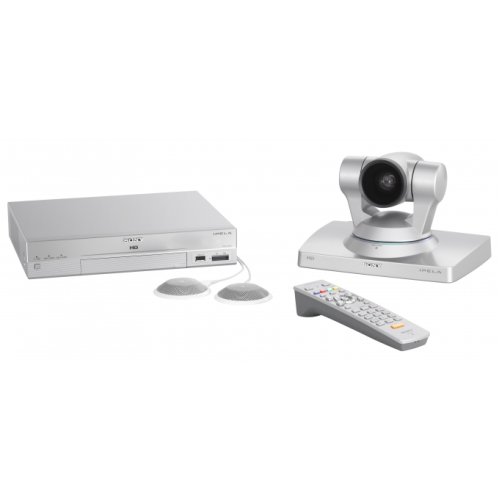

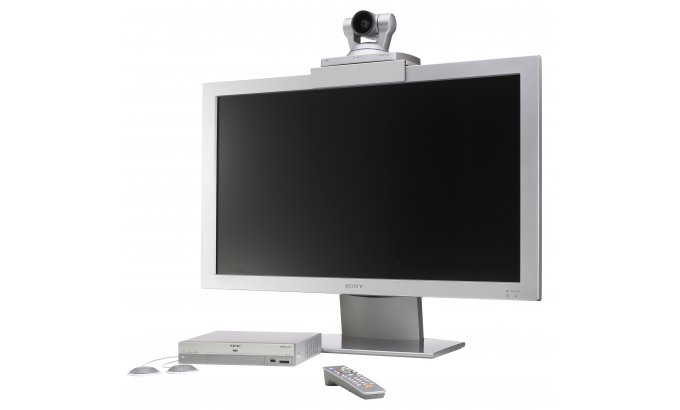

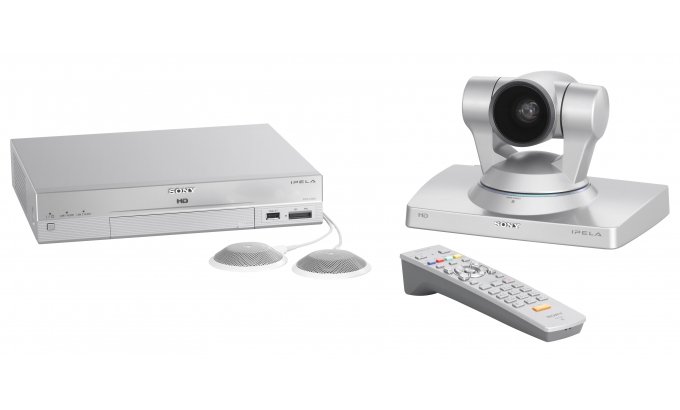

Included with the HD video codec unit and camera are two microphones for stereo and a HDMI cable for easy connection to a video monitor, TV or display.

Also available, the PCS-XG80S is a ‘standalone’ version that does not include a PTZ camera. The PCS-XG80/9DS system bundle includes PCSA-DSG80 Data Solution Software for simultaneous sharing of HD video and presentations from a connected PC.

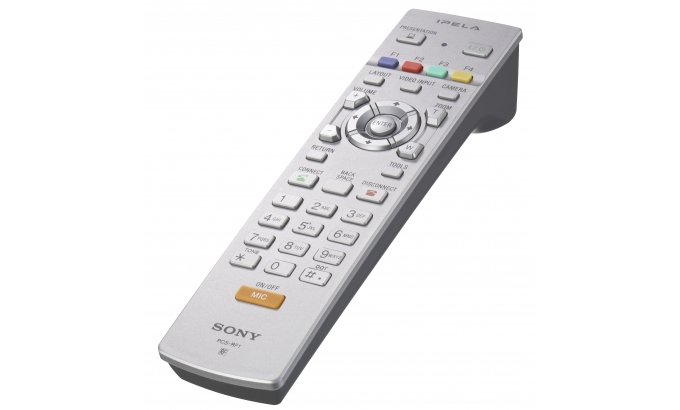

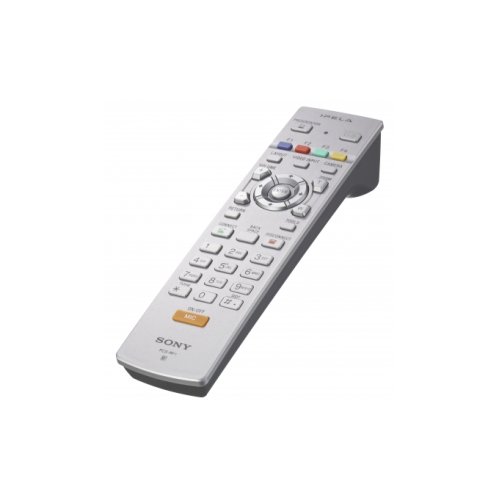

Set-up and operation are refreshingly straightforward. The supplied remote commander allows easy one-touch dialling from your contacts list. Conference participants can share smooth, clear video and voice together with presentations from your PC. A choice of screen layout options makes it easy to configure video conferencing and PC data displays just the way you want to. Voice-activated switching automatically detects who’s speaking, displaying their picture as the main image alongside smaller images of other participants.

Optional software makes multi-point conferences are just as simple. The PCS-XG80 can be configured to communicate with up to five remote sites, including a mix of IP and ISDN connections. In addition, two main units can be cascaded to support a maximum of ten sites.

W przypadku pytań, proszę o kontakt:

adam@kraftmann.com

GSM. 504 58 64 88

tel. 22 490 31 43

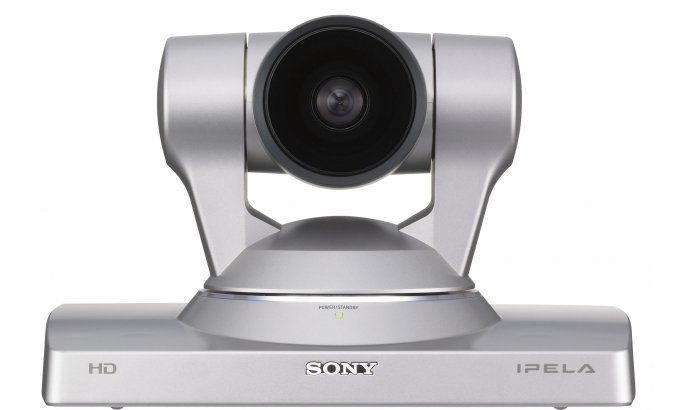

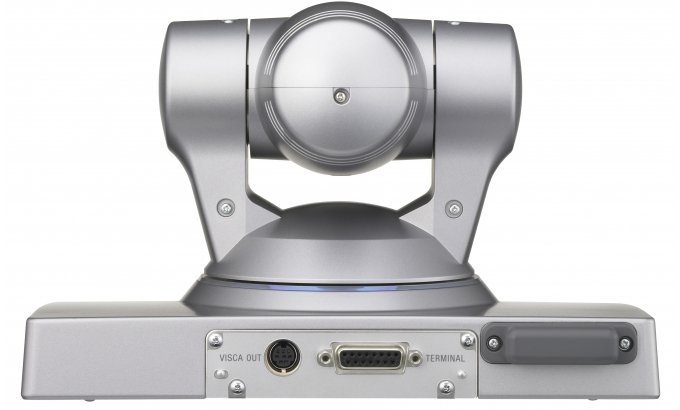

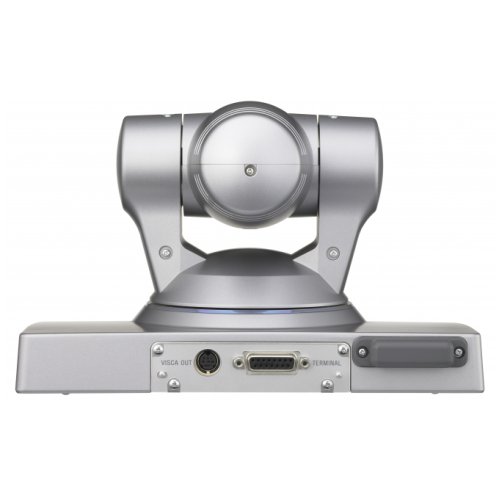

Camera

Image Sensor	1/3-type CMOS image sensor
Image Sensor (Number of Effective Pixels)	2 Megapixels
Output Pixels (H x V)	1920 x 1080
Frame Rate	60 fps
S/N Ratio	50 dB
Brightness Control	Auto/Manual
Zoom Ratio	x40 zoom (x10 optical zoom, x4 digital zoom)
Focusing System	Auto/Manual
Horizontal Viewing Angle	Approx. 8° to 70°
Focal Length	f = 3.4 mm to 33.9 mm
F-Number	F1.8 to F2.1
Minimum Object Distance	100 mm (At WIDE end)
Pan/Tilt Angle	Pan ±100°/Tilt ±25°
Preset Position	100 positions
Power Supply	Supplied from Codec Unit
Other Features	Auto Gain Control, Auto White Balance, Backlight Compensation BrightFace function, Noise reduction, VISCA output to the second camera
Multipoint Capability	Up to 6 sites (H.320/H.323) with optional software PCSA-MCG80 7 to 10 sites (H.320/H.323) requires two PCS-XG80 units with optional software PCSA-MCG80 using cascaded connection

Key Features

Data Sharing	PC images up to SXGA resolution is supported. Video annotation function is available.
Lip Synchronization	AUTO/OFF
Mic Off Function	ON/OFF
Streaming/Recording Feature	Audio: 64 kbps Video: 0 kbps to 512 kbps (5-step)

Video

Maximum Frame Rate	H.261 QCIF 30 fps, CIF 30 fps H.263 QCIF 30 fps, CIF 30 fps, 4CIF 10 fps H.264 QCIF 30 fps, CIF 30 fps, 4CIF 30 fps, wCIF 30 fps, w432p 30 fps, w4CIF 30 fps, 720p 60 fps, 1080i 60 fps[[F_ZD0003]], 1080p 30 fps
Communication Protocol Standards	H.261, H.263, H.263+, H.263++, H.264, H.264 High profile, MPEG-4 SP@L3
Resolution	4:3 QCIF (176 x 144), CIF (352 x 288), 4CIF (704 x 576) 16:9 wCIF/w288p (512 x 288), w432p (768 x 432), w4CIF (1024 x 576), 720p (1280 x 720), 1080i (1920 x 1080), 1080p (1920 x 1080)
Bit Rate	64 kbps to 10,240 kbps
Screen Layout	Full Screen, PinP, PandP, SideBySide

Audio

Bandwidth and Coding	MPEG-4 AAC Stereo: 22 kHz at 192 kbps (IP only) MPEG-4 AAC Mono: 14 kHz at 48 kbps, 64 kbps, 96 kbps MPEG-4 AAC Mono: 22 kHz at 64 kbps, 96 kbps (IP only) G.711: 3.4 kHz at 56 kbps, 64 kbps G.722: 7.0 kHz at 48 kbps, 56 kbps, 64 kbps G.728: 3.4 kHz at 16 kbps
Other Features	Stereo echo-cancelling (ON/OFF), Auto Gain Control, Noise Reduction

Network

Protocols	TCP/IP, UDP/IP, DHCP, DNS, HTTP, TELNET, SSH, SNMP, NTP, ARP, RTP/RTCP
QoS (Quality of Service)	Adaptive FEC (Forward Error Correction), Real-time ARQ (Auto Repeat reQuest), ARC (Adaptive Rate Control), IP Precedence, DiffServe
Other Network Features	Packet reordering, TCP/UDP port setting, NAT, PPPoE, UDP shaping, Encryption, Auto gatekeeper discovery,UPnP[[F_ZD0006]], URI Dialing, IPv6

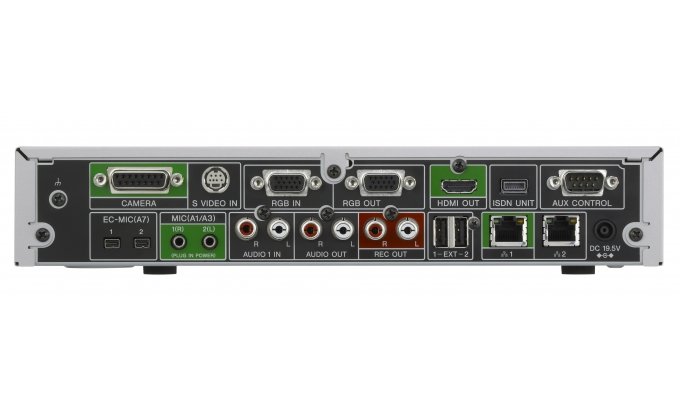

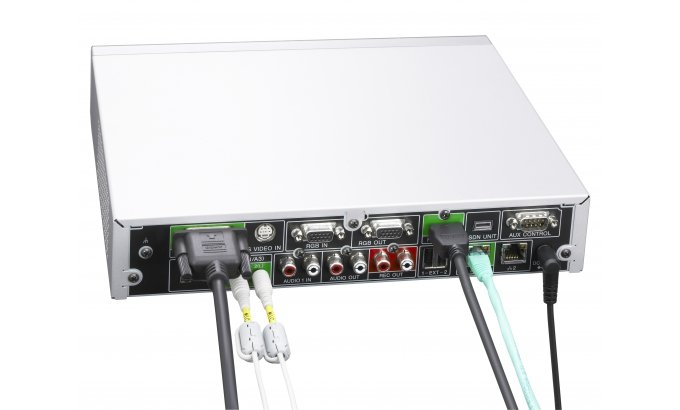

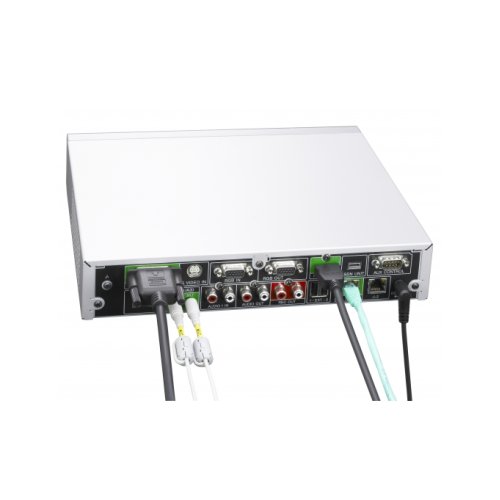

Interface

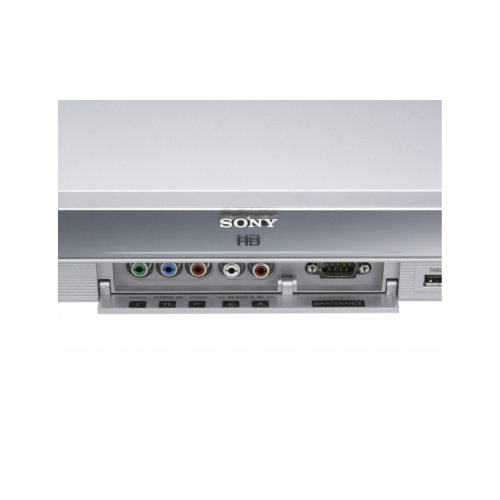

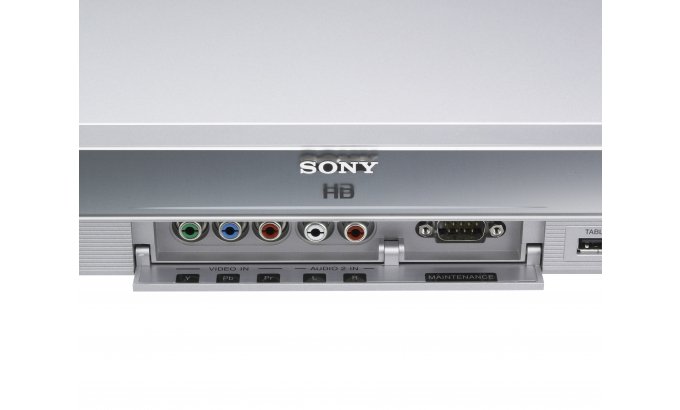

Video Input	External video inputs (S-Video x 1, Y/Pb/Pr x 1, RGB x 1)
Video Output	HDMI x 1, RGB x 1
Control Input	RS-232C x 1
Audio Input	External analog microphone input Mini-jack (Plug in power) x 2 (L/R) EC-Mic Input x 2 (PCSA-A7) Audio Input (MIC/AUX) x 2 (Phono jack, stereo)
Audio Output	HDMI (video, audio) x 1, Line Output (Phono jack, stereo) x 1, REC Output (Phono jack, stereo) x 1
Network Port	10BASE-T/100BASE-TX x 2, ISDN Unit Interface x 1
Memory Stick Slots	1
Maintenance Interface	RS-232C x 1
Others	Tablet Interface x 1

Standard

Communication Protocol Standards	ITU-T H.320, H.323[[F_ZD0007]], IETF SIP
ITU-T (excluding audio/video standards)	H.231, H.241 H.242, H.243, H.245, H.350, H.460.18, H.460.19
IETF	RFC2190, RFC3016, RFC3047, RFC3261, RFC3264, RFC3550, RFC3984, RFC4573, RFC4587, RFC4629, RFC4856, RFC4628, RFC5168
Encryption	H.233, H.234, H.235 ver.3
Far End Camera Control	H.224, H.281
Frame Format	H.221, BONDING, H.225.0
Dual Stream	H.239 (video and presentation data)

General

Power Requirements	DC 19.5 V (AC Adapter : AC 100 V to 240 V, 50/60 Hz)
Power Consumption	40 W (the codec only)/90 W (incl. PCSA-CXG80 and PCSA-B768S)
Power Consumption (Standby）	10 W (the codec only)/15 W (incl. PCSA-CXG80 and PCSA-B768S)
Operating Temperature	5°C to 35°C 41°F to 95°F
Storage Temperature	-20°C to +60°C -4°F to +140°F
Operating Humidity	20% to 80% (no condensation)
Storage Humidity	20% to 80% (no condensation)
Dimensions (W x H x D)[[F_ZD0001]]	Codec: Approx. 282 x 56 x 244 mm (excluding protrusions) Approx. 11 1/8 x 2 1/4 x 9 5/8 inches (excluding protrusions) Camera unit: Approx. 240 x 152 x 158 mm (excluding protrusions) Approx. 9 1/2 x 6 x 6 1/4 inches (excluding protrusions)
Mass	Codec: Approx. 2.2 kg Approx. 4 lb 14 oz Camera unit: Approx. 2 kg Approx. 4 lb 7 oz
Supplied Accessories	PCSA-CXG80 HD camera (1) PCS-A1 microphone (2) AC adapter (1) Power cord (1) HDMI cable (3m) (1) RF Remote Commander Unit (1) Batteries for Remote Commander unit (2) CD-ROM (Operating Instructions, Before using this unit, Quick connection guide) (1) Installation Guide (1) Remote commander guide (1) Important notice regarding software (1) Warranty booklet (1) Camera cable (3m) for HD camera (1 ) Hook-and-loop pads for HD camera (2) Operating instructions for HD camera (1) Warranty booklet for HD camera (1)
*1	The values for dimensions are approximate.
*2	It requires the optional data solution software PCSA-DSG80 to send video and presentation data simultaneously.
*3	Available only when local and remote terminals are both PCS-XG80 working in the 1080i mode.
*4	Available only when local and remote terminals are both PCS-XG80 working in the 1080 mode. Input/Output signals are 1080i.
*5	Maximum speed is 4 Mbps when the connected point does not use the PCS-XG80/XA80.
*6	It is unavailable depending on the model.
*7	Interoperable with other manufacturer's endpoint which is compliant to H.323/H.320. It does not mean that all connections are guaranteed.
*8	It requires the optional data solution box PCSA-DSB1S to send PC image.
*9	Composite input requires a conversion cable
