PCS-XL55 - HD Desktop Video Conferencing System

29 200,20 zł

Produkt dostępny

This all-in-one video conferencing system adds extra style and efficiency to business communications, remote consulting and distance learning applications.

Friendly and easy to use, the desktop-style system includes everything you need to hold video conferences with crisply detailed HD picture quality plus clear, natural sound.

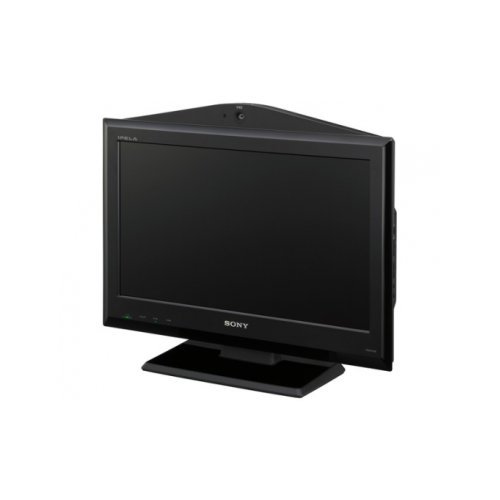

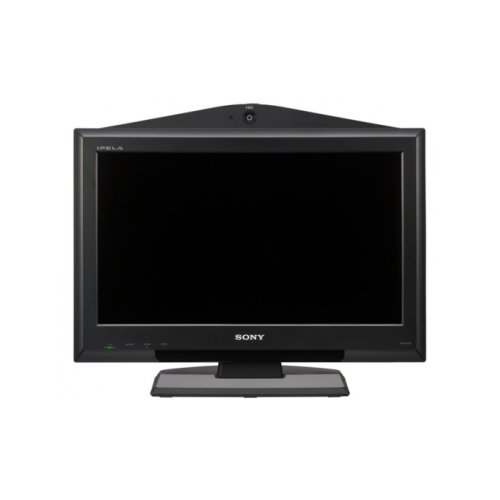

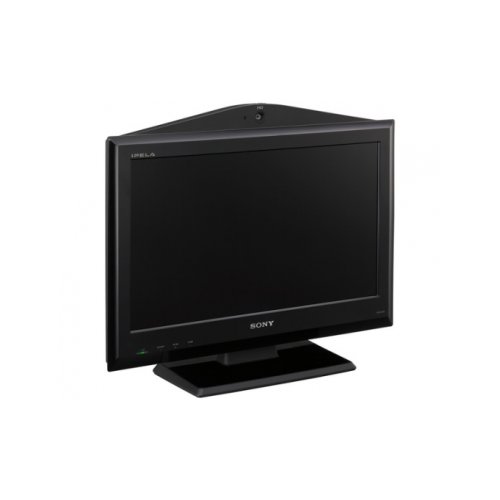

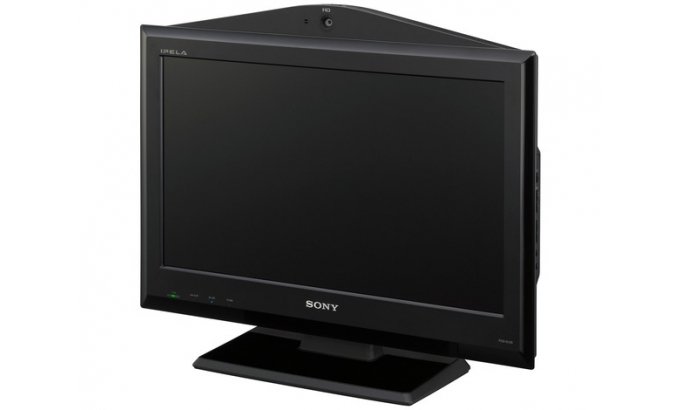

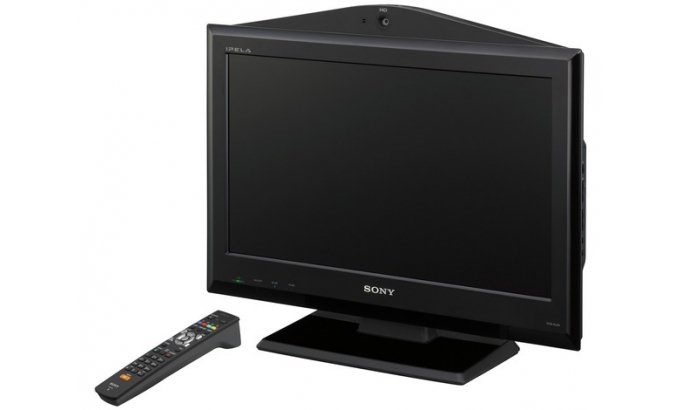

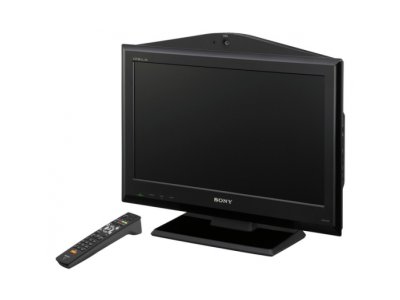

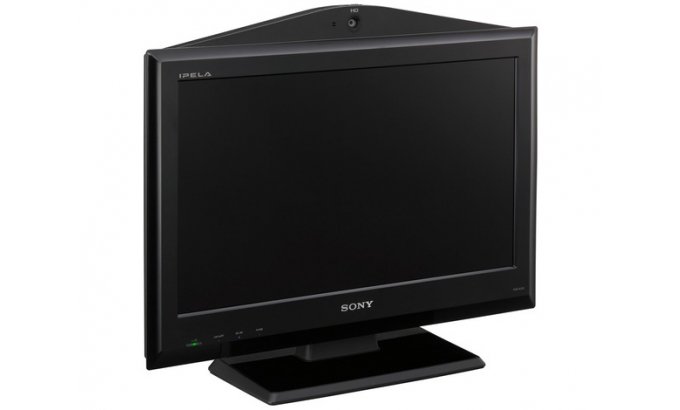

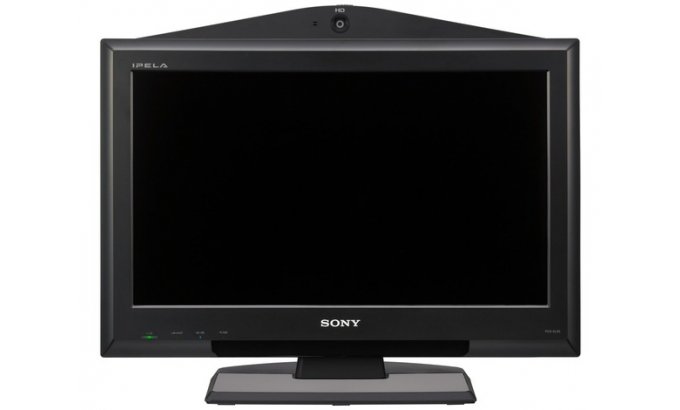

HD camera, microphone, speakers and HD codec are all integrated neatly into a stylish 21.6 inch display. Doubling as a handy PC monitor, the sleek all-in-one cabinet simplifies installation and reduces cable clutter in an office, boardroom or training suite.

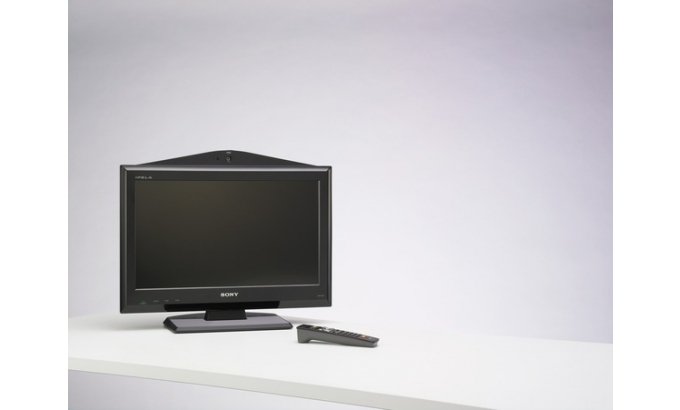

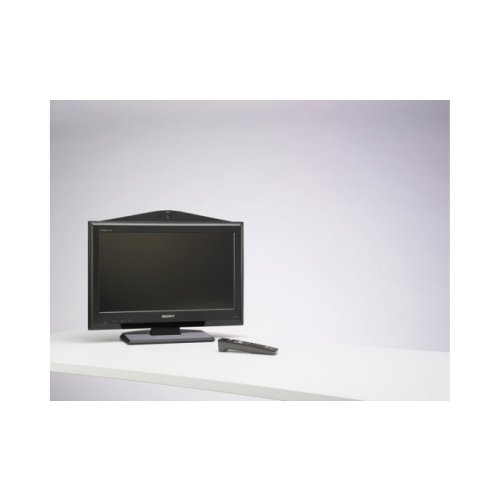

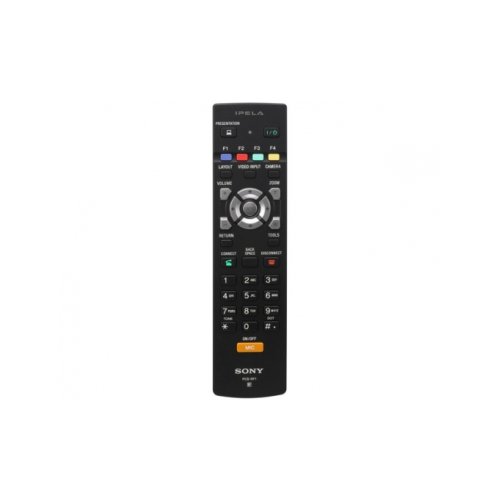

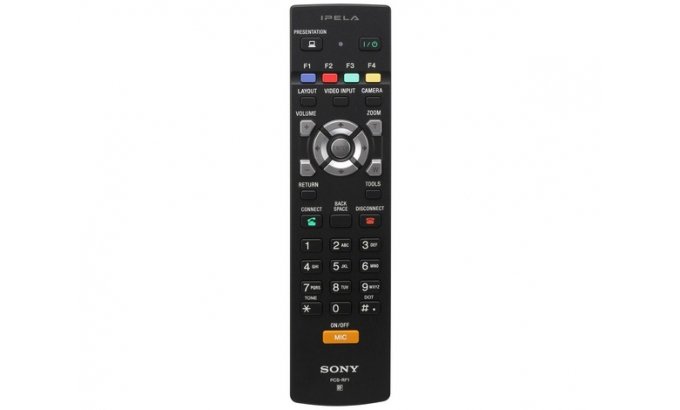

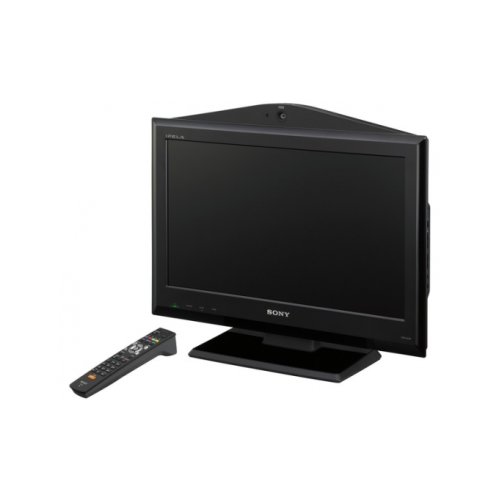

The supplied remote commander allows easy one-touch dialling from your contacts list. Conference participants can share smooth, clear video and voice together with presentations from your PC.

For extra flexibility, the PCS-XL55 can also be operated in simple-to-operate ‘Kiosk’ mode – ideal for unattended services like remote consulting or distance learning.

W przypadku pytań, proszę o kontakt:

adam@kraftmann.com

GSM. 504 58 64 88

tel. 22 490 31 43

Camera

Image Sensor	1/3.2-type 8 Megapixels CMOS image sensor
Image Sensor (Number of Effective Pixels)	6 Megapixels
Output Pixels (H x V)	1280 x 720
Frame Rate	30 fps
S/N Ratio	50 dB
Brightness Control	Auto/Manual
Zoom Ratio	x3 digital zoom
Focusing System	Auto/Manual
Horizontal Viewing Angle	80.1°
Vertical Viewing Angle	62.7°
Focal Length	f = 2.9 mm
F-Number	F2.8
Minimum Object Distance	80 mm
Preset Position	100 positions
Other Features	Auto Gain Control, Auto White Balance, Backlight Compensation

Key Features

Multipoint Capability	Up to 3 sites (H.320/H.323)
Data Sharing	PC images up to SXGA resolution is supported. Video annotation function is available.
Lip Synchronization	AUTO/OFF
Mic Off Function	ON/OFF
Streaming/Recording Feature	Audio: 64 kbps Video: 0 kbps to 512 kbps (5-step)

Video

Maximum Frame Rate	H.264 - 720p H.261 - QCIF, CIF H.263 - QCIF, CIF H.264 - QCIF, CIF, 4CIF, wCIF, w432p, w4CIF H.263 - 4CIF
Communication Protocol Standards	H.261, H.263, H.263+, H.263++, H.264, H.264 High profile, MPEG-4 SP@L3
Resolution	4:3 - QCIF (176 x 144), CIF (352 x 288), 4CIF (704 x 576) 16:9 - wCIF/w288p (512 x 288), w432p (768 x 432), w4CIF (1024 x 576), 720p (1280 x 720)
Bit Rate	64 kbps to 4,096 kbps
Screen Layout	Full Screen, PinP, PandP, SideBySide

Audio

Bandwidth and Coding	MPEG-4 AAC Stereo: 22 kHz at 192 kbps (IP only) MPEG-4 AAC Mono: 14 kHz at 48 kbps, 64 kbps, 96 kbps MPEG-4 AAC Mono: 22 kHz at 64 kbps, 96 kbps (IP only) G.711: 3.4 kHz at 56 kbps, 64 kbps G.722: 7.0 kHz at 48 kbps, 56 kbps, 64 kbps G.728: 3.4 kHz at 16 kbps
Other Features	Stereo echo-cancelling (ON/OFF), Auto Gain Control, Noise Reduction

Display

Size	21.6-inch
Aspect Ratio	16:9
Resolution	1366 x 768 (WXGA)
Brightness	270 cd/m2
Response Time	6.5 ms
Contrast Ratio	2500:1
Horizontal Viewing Angle	176°
Number of Colors	16.7 M Colors

Network

Protocols	TCP/IP, UDP/IP, DHCP, DNS, HTTP, TELNET, SSH, SNMP, NTP, ARP, RTP/RTCP
QoS (Quality of Service)	Adaptive FEC (Forward Error Correction), Real-time ARQ (Auto Repeat reQuest), ARC (Adaptive Rate Control), IP Precedence, DiffServe
Other Network Features	Packet reordering, TCP/UDP port setting, NAT, PPPoE, UDP shaping, Encryption, Auto gatekeeper discovery, UPnP[[F_ZD0006]], URI Dialing, IPv6

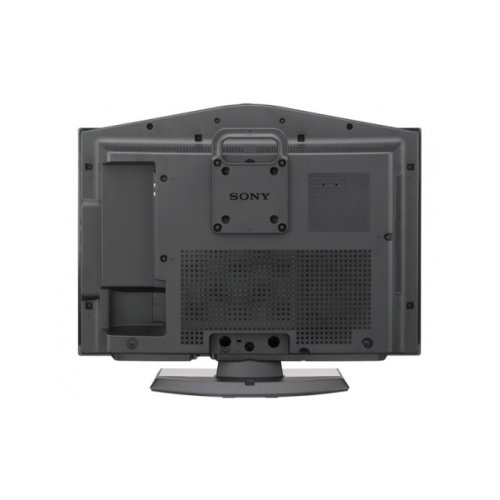

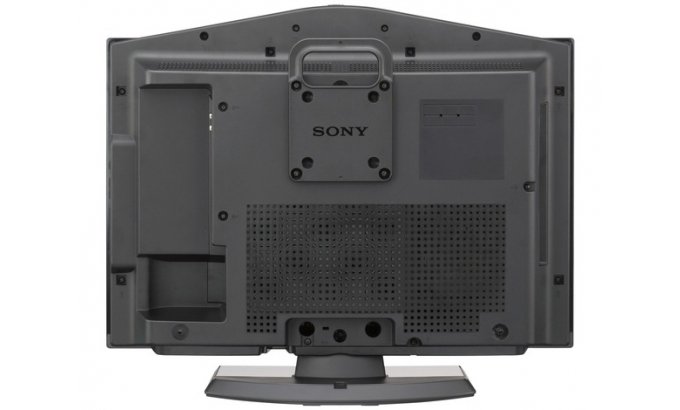

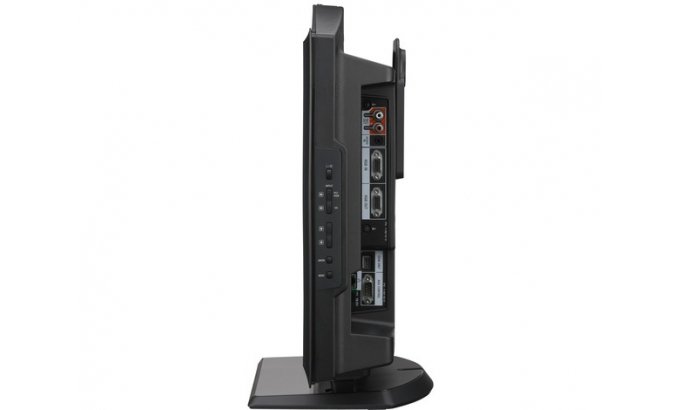

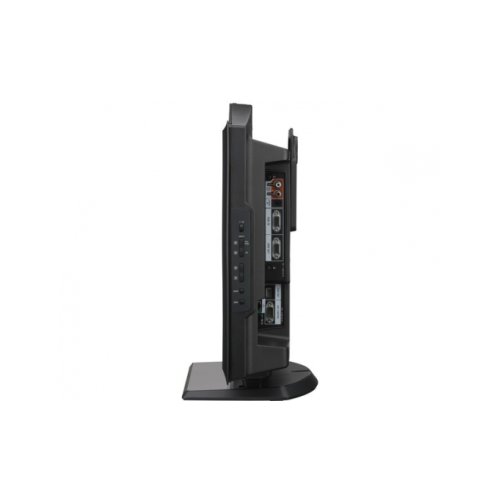

Interface

Video Input	AUX video input (RGB x 1)
Video Output	RGB x 1
Control Input	RS-232C x 1
Audio Input	AUX Mic Input L/R x1(Analog, Plug-in power), AUX Input (Mini, Stereo) x1
Audio Output	Headphone Output (Mini, Stereo) x1, REC Output (Pin, Stereo) x1
Network Port	10BASE-T/100BASE-TX x 1, ISDN Unit Interface x 1
Memory Stick Slots	1
Others	Tablet Interface x 1

Standard

Communication Protocol Standards	ITU-T H.320, H.323[[F_ZD0007]], IETF SIP
ITU-T (excluding audio/video standards)	H.231, H.241 H.242, H.243, H.245, H.350, H.460.18, H.460.19
IETF	RFC2190, RFC3016, RFC3047, RFC3261, RFC3264, RFC3550, RFC3984, RFC4573, RFC4587, RFC4629, RFC4856, RFC4628, RFC5168
Encryption	H.233, H.234, H.235 ver.3
Far End Camera Control	H.224, H.281
Frame Format	H.221, BONDING, H.225.0
Dual Stream	H.239 (video and presentation data)

General

Power Requirements	DC 19.5 V (AC Adapter : AC 100 V to 240 V, 50/60 Hz)
Power Consumption	115 W (Max.)
Power Consumption (Standby）	15.5 W (Max.)
Operating Temperature	5°C to 35°C 41°F to 95°F
Storage Temperature	-20°C to +60°C -4°F to +140°F
Operating Humidity	20% to 80% (no condensation)
Storage Humidity	20% to 80% (no condensation)
Dimensions (W x H x D)[[F_ZD0001]]	557 x 456.5 x 214 mm (including stand) 22 x 18 x 8 1/2 inches (including stand)
Mass	Approx. 8.2 kg Approx. 18 lb 1oz
Supplied Accessories	AC adaptor (1) Power cord (1) RF Remote Commander Unit (1) Batteries for Remote Commander Unit (2) CD-ROM (Operating instructions, Before using this unit, Quick connection guide) (1) Before using this unit (1) Quick Connection Guide/Remote Commander Guide (1) Important notice regarding software (1) Warranty Booklet (1)
*1	The values for dimensions are approximate.
*2	It requires the optional data solution software PCSA-DSG80 to send video and presentation data simultaneously.
*3	Available only when local and remote terminals are both PCS-XG80 working in the 1080i mode.
*4	Available only when local and remote terminals are both PCS-XG80 working in the 1080 mode. Input/Output signals are 1080i.
*5	Maximum speed is 4 Mbps when the connected point does not use the PCS-XG80/XA80.
*6	It is unavailable depending on the model.
*7	Interoperable with other manufacturer's endpoint which is compliant to H.323/H.320. It does not mean that all connections are guaranteed.
*8	It requires the optional data solution box PCSA-DSB1S to send PC image.
*9	Composite input requires a conversion cable
